Item | Parameter | Remarks |
Vehicle Model | KLF5181ZYSD6 | 4th Gen Compactor |
Wheelbase (mm) | 4700 | |
Tire | 10.00 Steel Tire | |
Gearbox | Fast 8-speed Gearbox | |
Engine Model | B6.2NS6B230 (Cummins 230) | China VI, Diesel |
Engine Power (kW) | 169 | |
Overall Dimensions L×W×H (mm) | 9030*2500/2530/3200/3400 | 4 rear structures, length varies |
Gross Weight (kg) | 18000 | |
Rated Load (kg) | 7620, 7555, 7315, 7250, 6600, 6535 | |
Curb Weight (kg) | 10250, 10555, 11270 | As per actual weight |
Effective Volume (m³) | 15 | |
Operation | Electric / Manual / Remote | 3 modes standard |
Loading Cycle Time | 12–25S | |
Unloading Time | ≤25S |

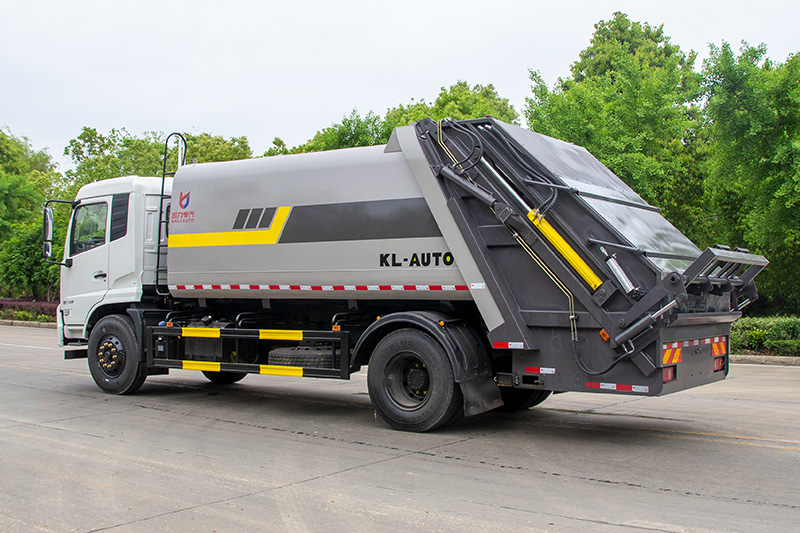

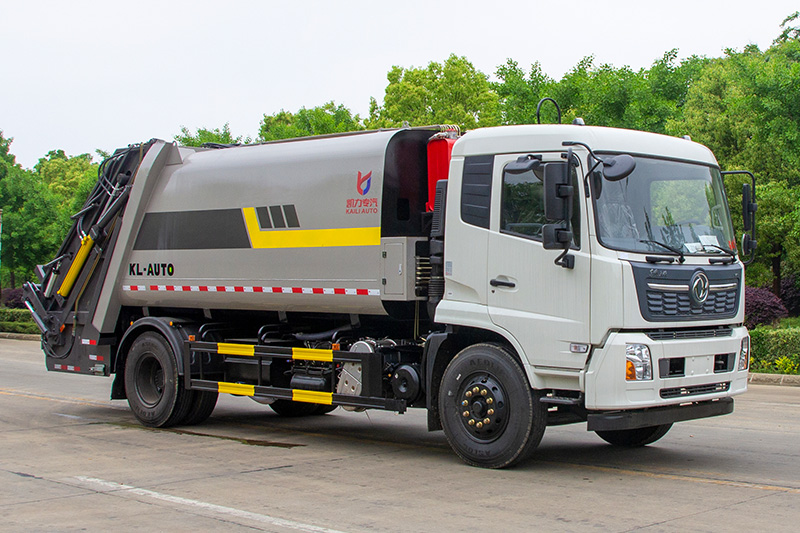

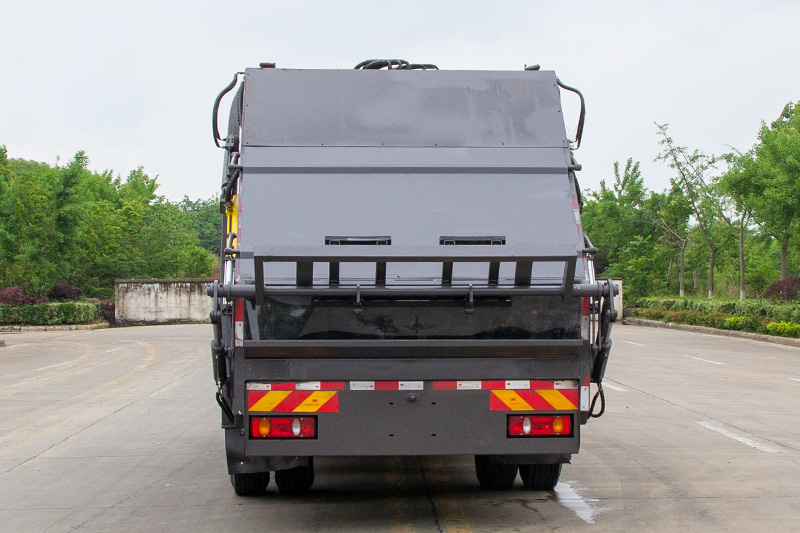

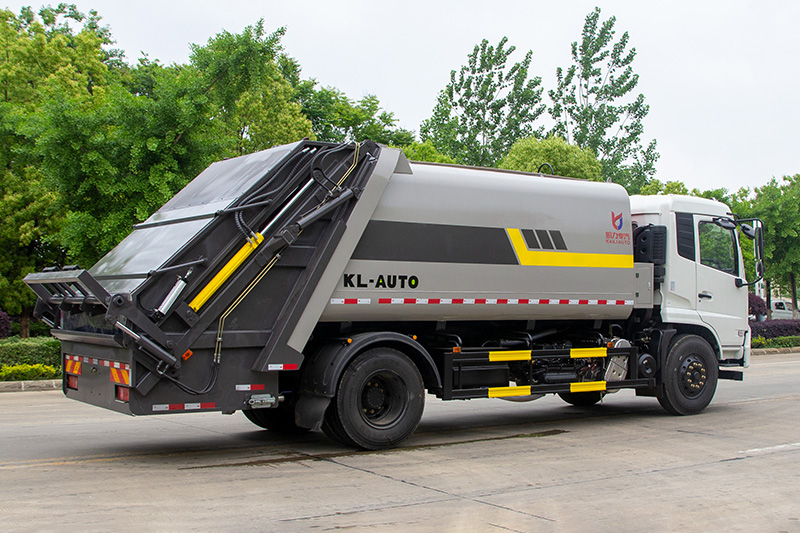

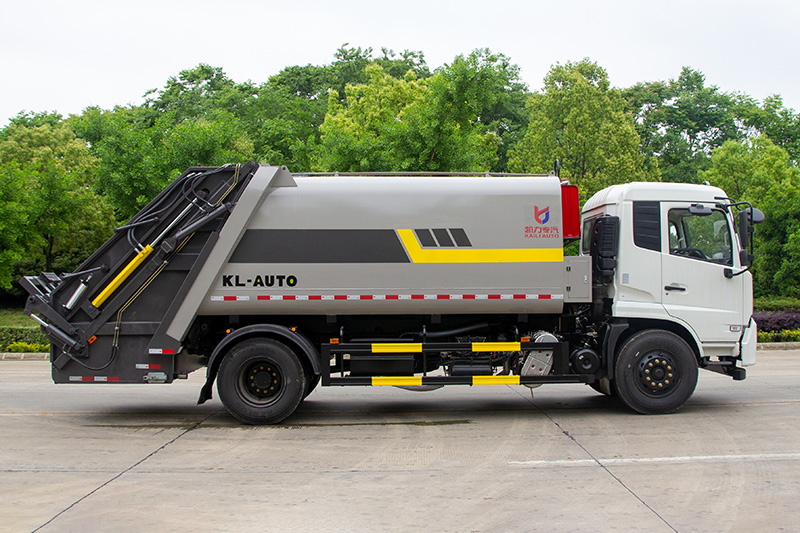

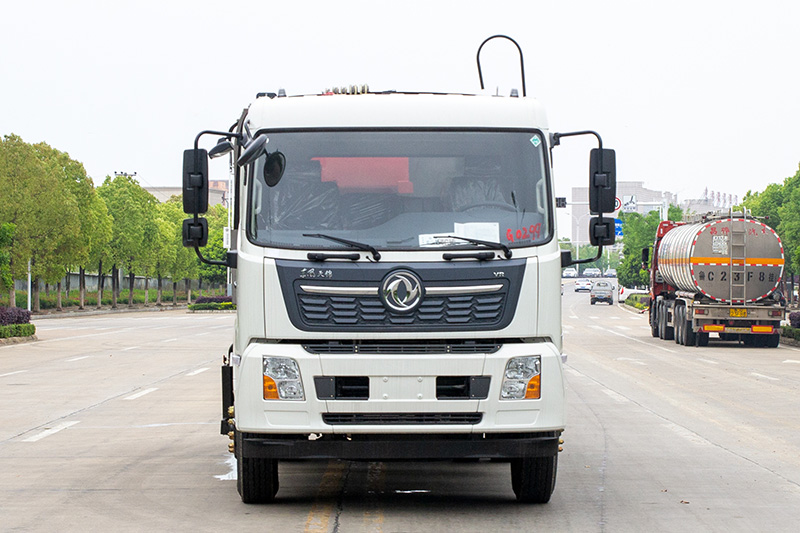

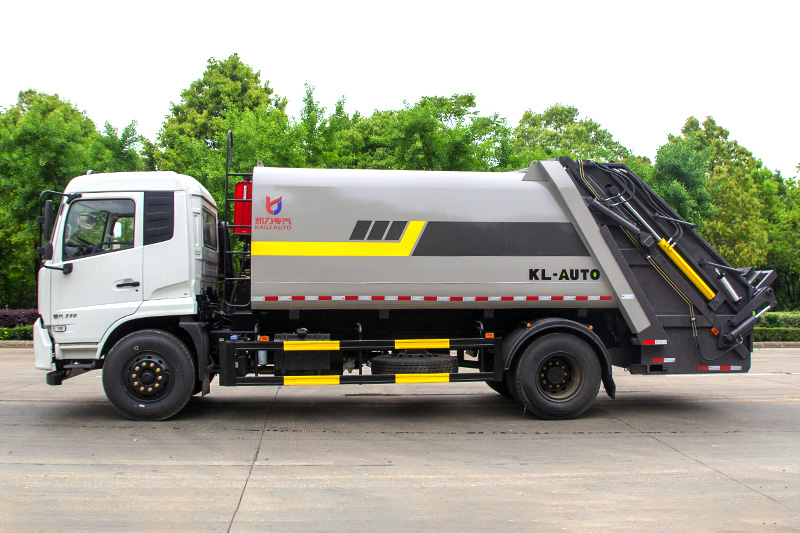

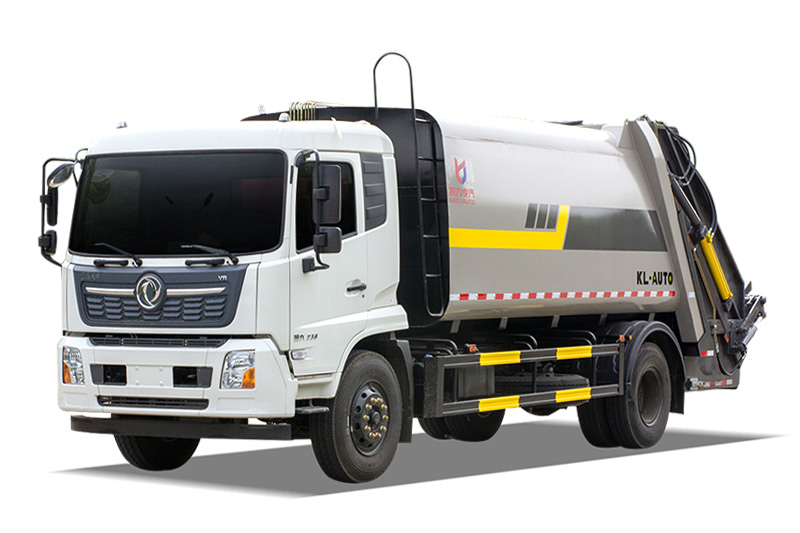

Dongfeng Tianjin 2023 Model Compactor Truck, 4,700 mm Wheelbase, 15 cubic meters
Project Parameters Remarks Vehicle Model KLF5181ZYSD6 4th Generation New Compressed-Type Wheelbase (mm) 4700 Tire Size 10.00 Steel-belted tires Transmission Fast 8-speed transmission Engine Model B6.2NS6B230 (Cummins 230) China VI emissions, Diesel Engine Engine Power (kW) 169 Dimensions
