2023 Dongfeng D9 with a 4,500 mm wheelbase and 14 cubic meters of cargo capacity
2023 Dongfeng D9 with a 4,500 mm wheelbase and 14 cubic meters of cargo capacity
2023 Dongfeng D9 with a 4,500 mm wheelbase and 14 cubic meters of cargo capacity
2023 Dongfeng D9 with a 4,500 mm wheelbase and 14 cubic meters of cargo capacity
2023 Dongfeng D9 with a 4,500 mm wheelbase and 14 cubic meters of cargo capacity
2023 Dongfeng D9 with a 4,500 mm wheelbase and 14 cubic meters of cargo capacity
2023 Dongfeng D9 with a 4,500 mm wheelbase and 14 cubic meters of cargo capacity
2023 Dongfeng D9 with a 4,500 mm wheelbase and 14 cubic meters of cargo capacity

2023 Dongfeng D9 with a 4,500 mm wheelbase and 14 cubic meters of cargo capacity

Project Parameters Notes Vehicle Model KLF5180ZYSE6 4th Generation New Compressed-Type Wheelbase (mm) 4500 Tire Size 10.00 Steel-belted tires Transmission Fast 8-speed transmission Engine Model YCS04200-68 (Yuchai 200) D4.0NS6B

Hotline：+86 13650006316
Get a quote and plan for this model

Set Appt

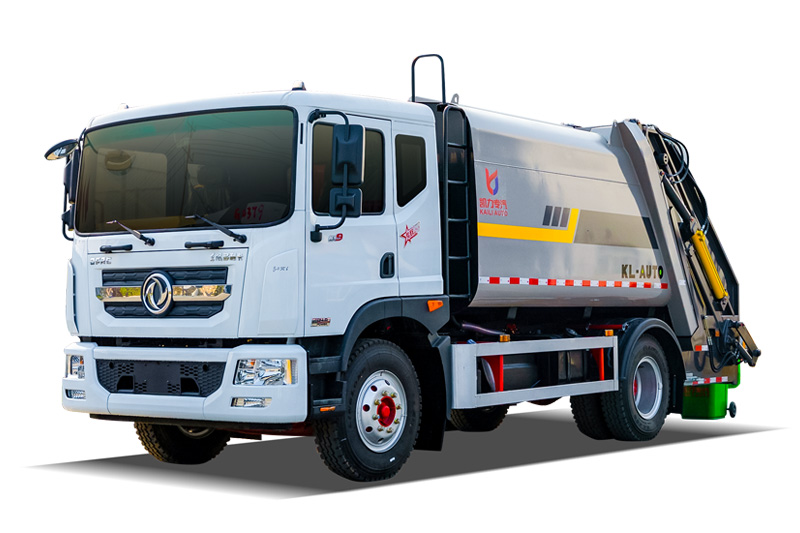

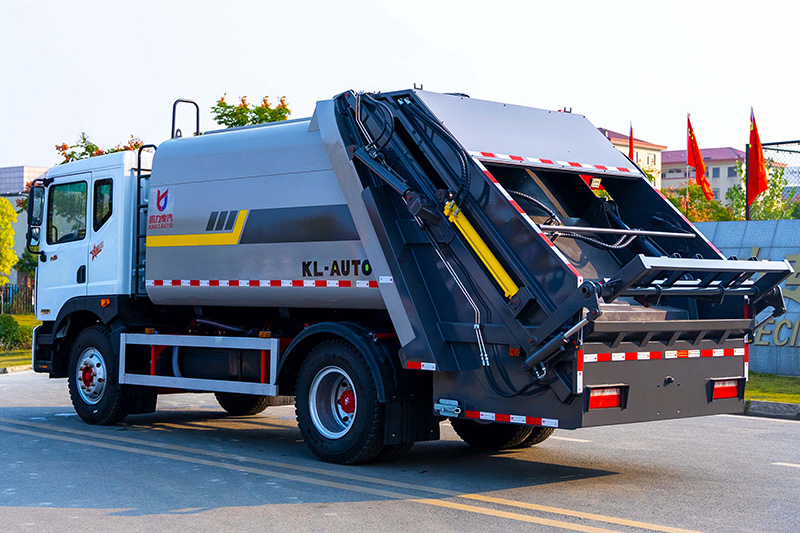

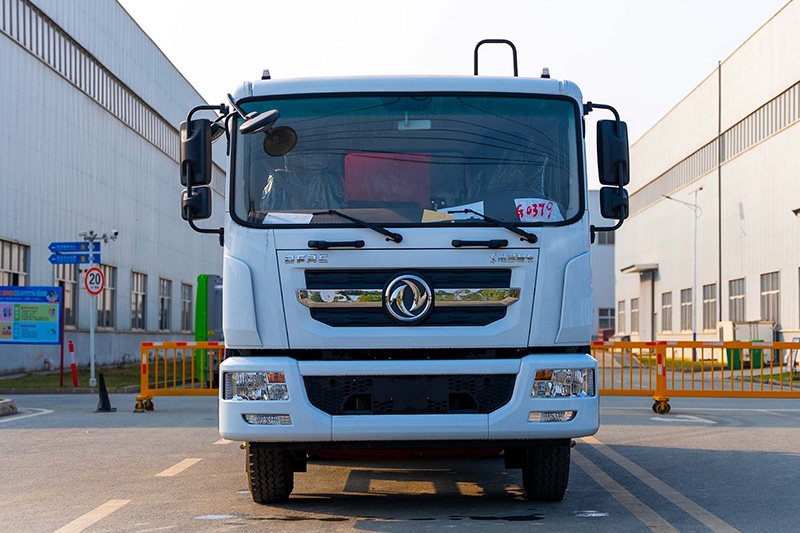

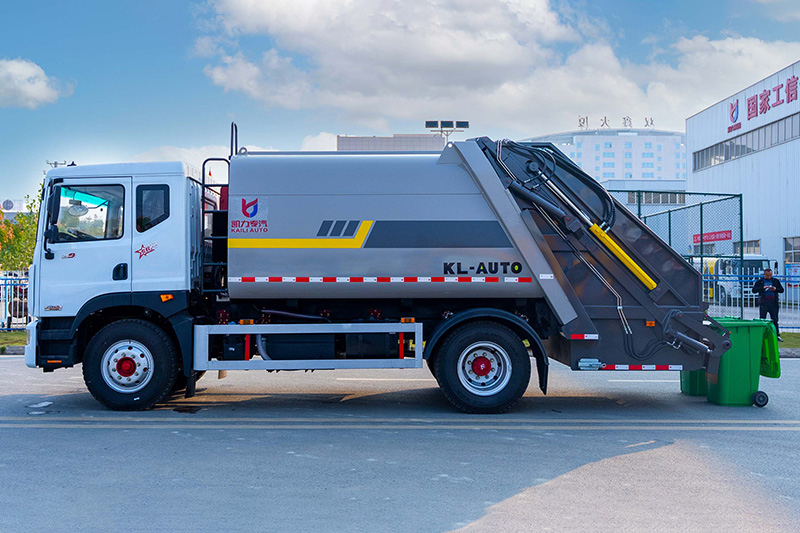

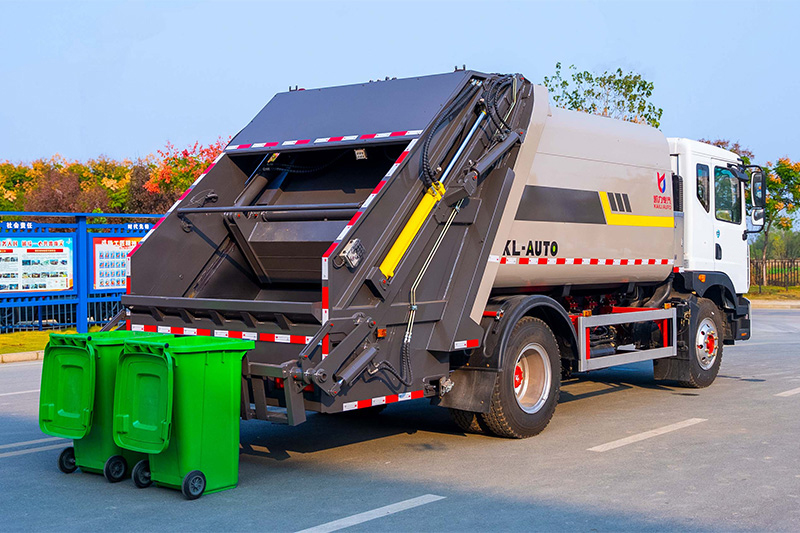

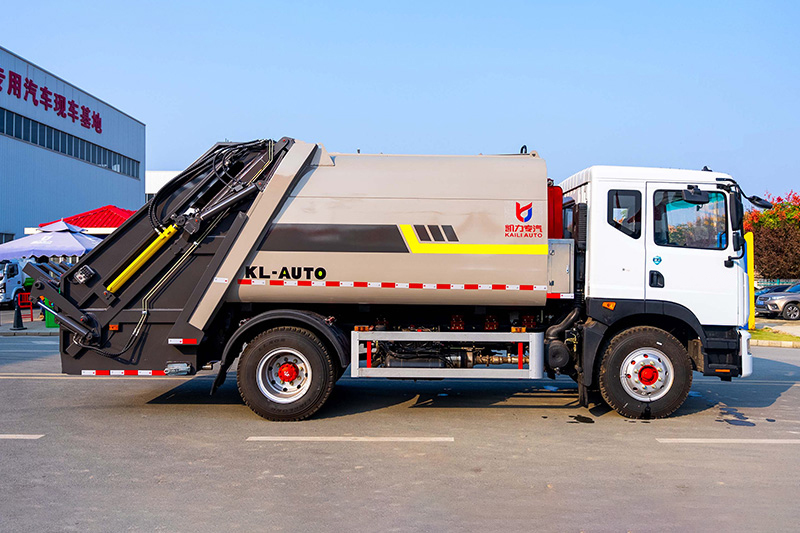

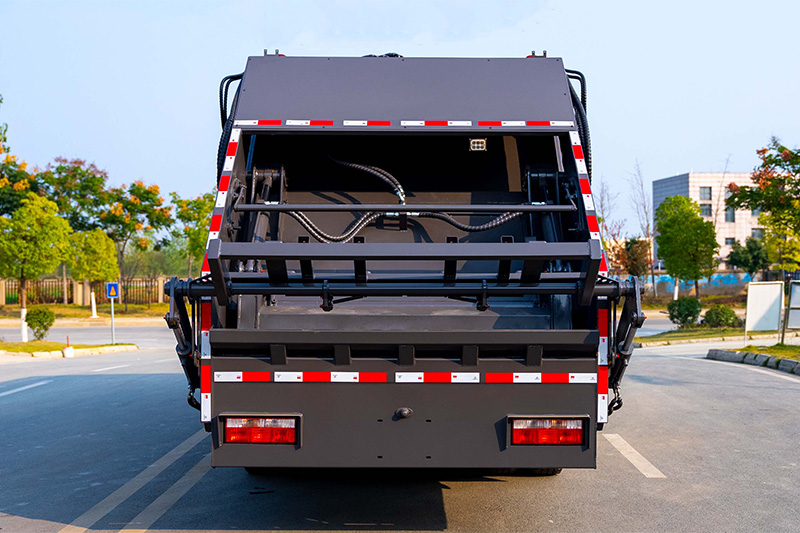

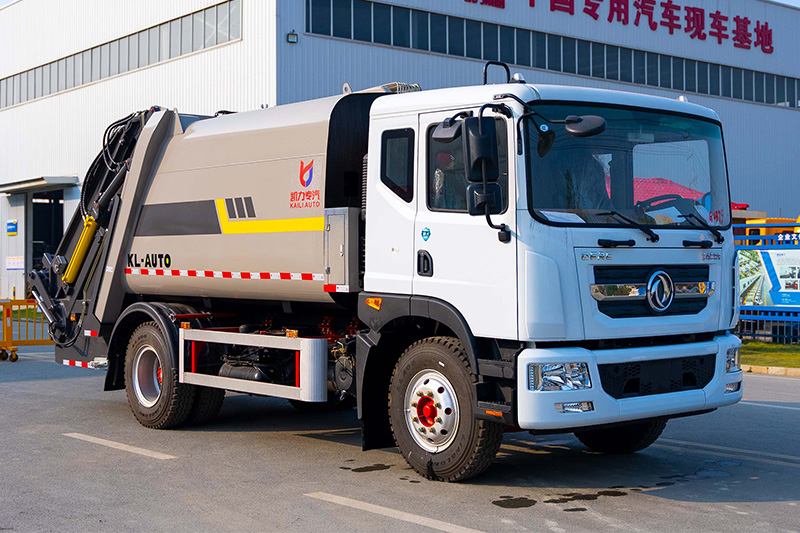

2023 Dongfeng D9 with a 4,500 mm wheelbase and 14 cubic meters of cargo capacity【Product Images】

2023 Dongfeng D9 with a 4,500 mm wheelbase and 14 cubic meters of cargo capacity 2023 Dongfeng D9 with a 4,500 mm wheelbase and 14 cubic meters of cargo capacity 2023 Dongfeng D9 with a 4,500 mm wheelbase and 14 cubic meters of cargo capacity 2023 Dongfeng D9 with a 4,500 mm wheelbase and 14 cubic meters of cargo capacity 2023 Dongfeng D9 with a 4,500 mm wheelbase and 14 cubic meters of cargo capacity 2023 Dongfeng D9 with a 4,500 mm wheelbase and 14 cubic meters of cargo capacity 2023 Dongfeng D9 with a 4,500 mm wheelbase and 14 cubic meters of cargo capacity 2023 Dongfeng D9 with a 4,500 mm wheelbase and 14 cubic meters of cargo capacity

2023 Dongfeng D9 with a 4,500 mm wheelbase and 14 cubic meters of cargo capacity【Product Specifications】

Item

Parameter

Remarks

Vehicle Model

KLF5180ZYSE6

4th Generation Compactor

Wheelbase (mm)

4500


Tire

10.00 Steel Radial Tire


Gearbox

Fast 8-speed Gearbox


Engine Model

YCS04200-68 (Yuchai 200)
D4.0NS6B195 (Cummins 195)
B6.2NS6B230 (Cummins 230)

China VI, Diesel

Engine Power (kW)

147 / 143 / 169


Overall Dimensions

L×W×H (mm)

8590*2500/2550*3300/3400

4 rear structures, length varies

Gross Weight (kg)

18000


Rated Load (kg)

8450, 8385, 8070, 8005, 7516, 7581


Curb Weight (kg)

9420, 9800, 10289

As per actual weight

Effective Volume (m³)

14


Operation

Electric / Manual / Remote

Standard 3 modes

Loading Cycle Time

12–25S


Unloading Time

≤25S
