Item | Parameter | Remarks |
Vehicle Model | KLF5121ZYSE6 | 4th Generation New Compression Type |
Wheelbase (mm) | 3800 | |
Tire Specification | 8.25 Steel Wire Tire | |
Transmission | WLY 6-speed Transmission | |
Engine Model | D25TCIF1 (Yunnei 150 HP) YCY30165-60 (Yuchai 165 HP) | China VI Emission, Diesel Engine |
Engine Power (kW) | 110/121 | |
Overall Dimensions 【L×W×H (mm)】 | 7480/7510*2300/2350*2710/3010/3200 | Four rear structures; overall length varies by structure |
Maximum Gross Mass (kg) | 11990 | |
Rated Load Mass (kg) | 5240,5175,4515,4580,4977,5042 | |
Curb Weight (kg) | 6620,7280,6818 | Certified based on actual vehicle weight |
Effective Box Volume (m³) | 10 | |
Operation Mode | Electric Control / Manual / Remote Control | Three operation modes are standard |
Single Loading Cycle Time | 12–25S | |
Unloading Time | ≤25S |

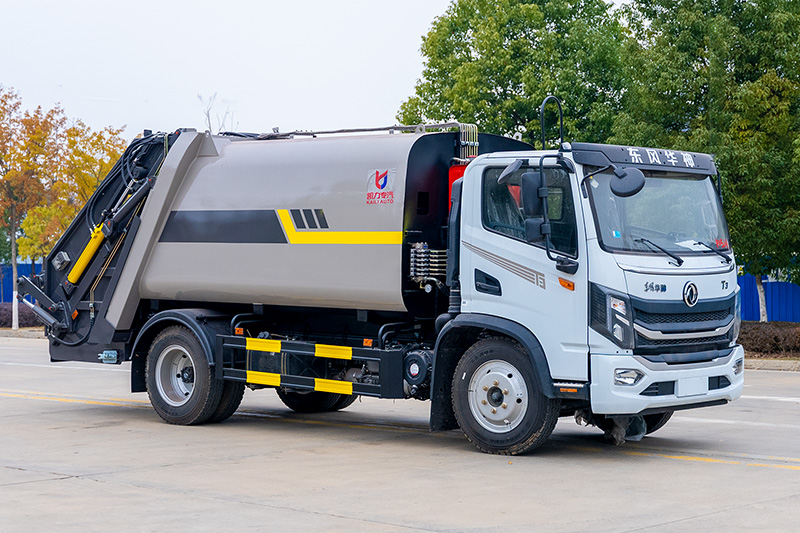

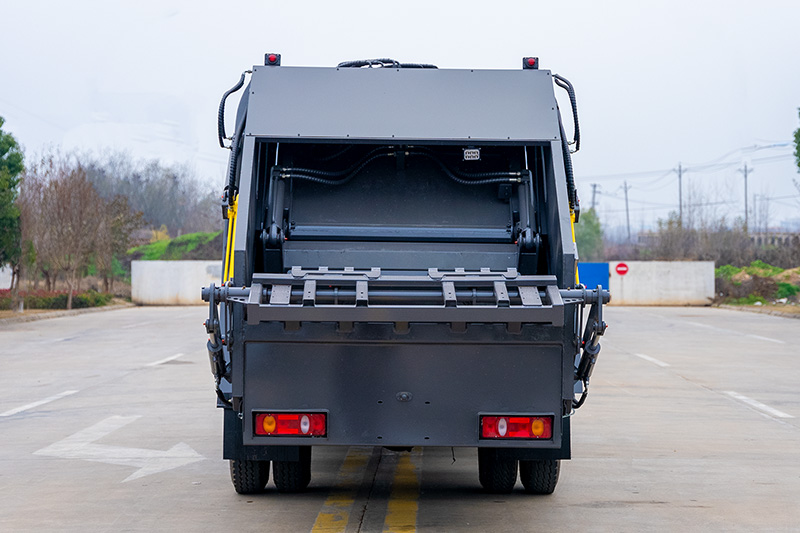

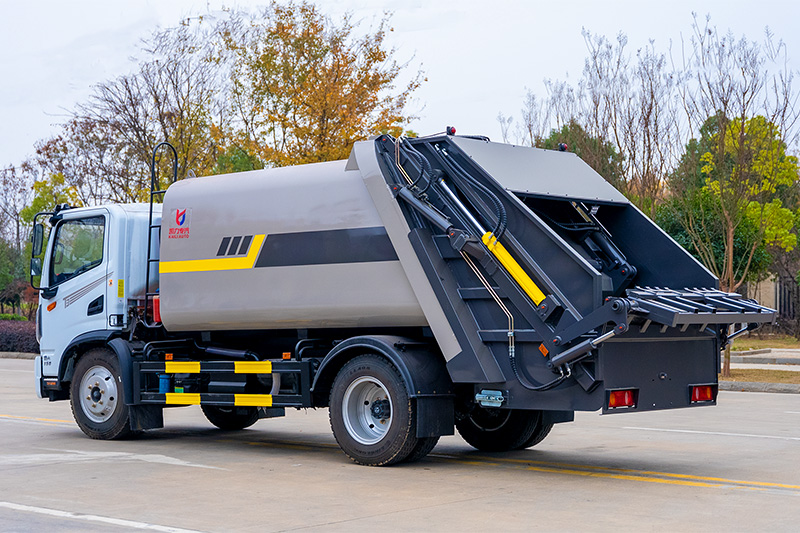

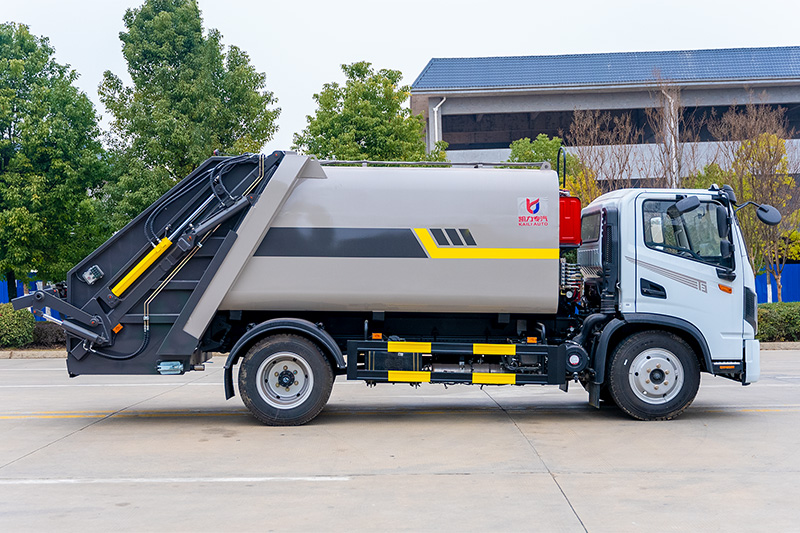

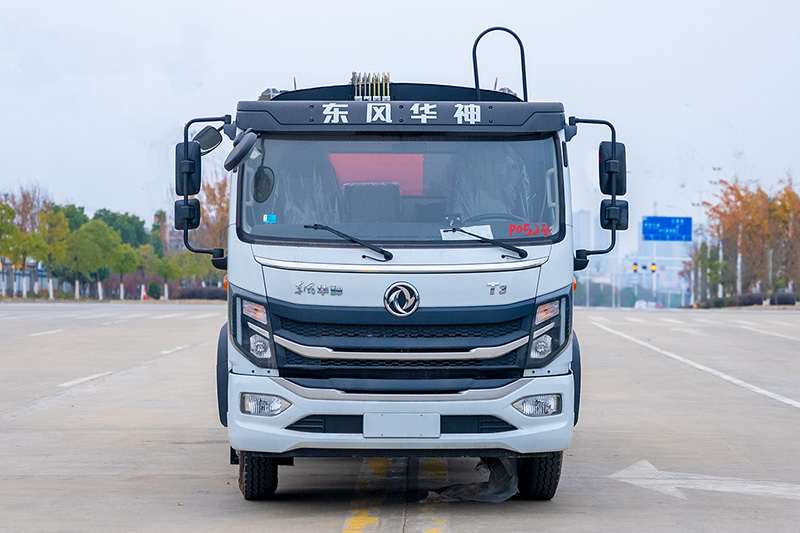

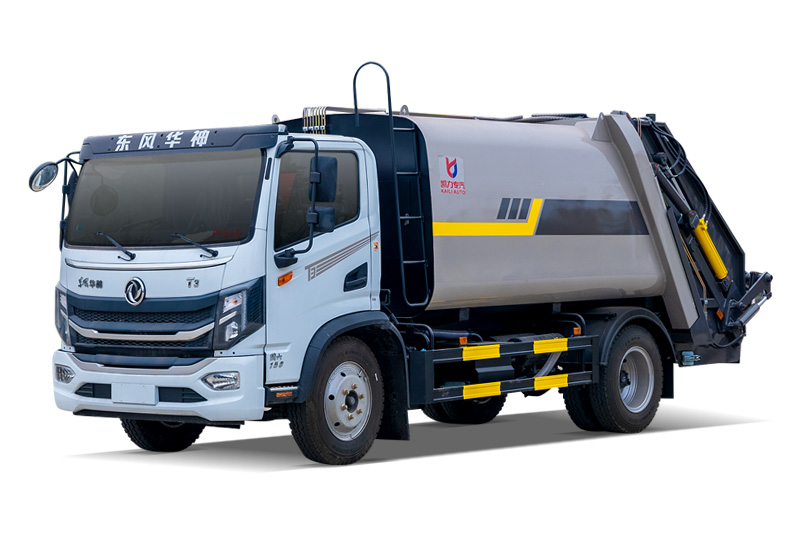

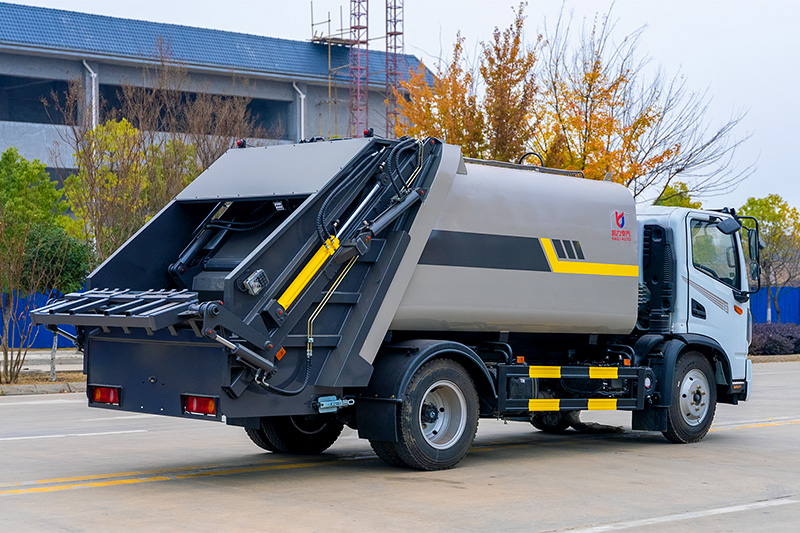

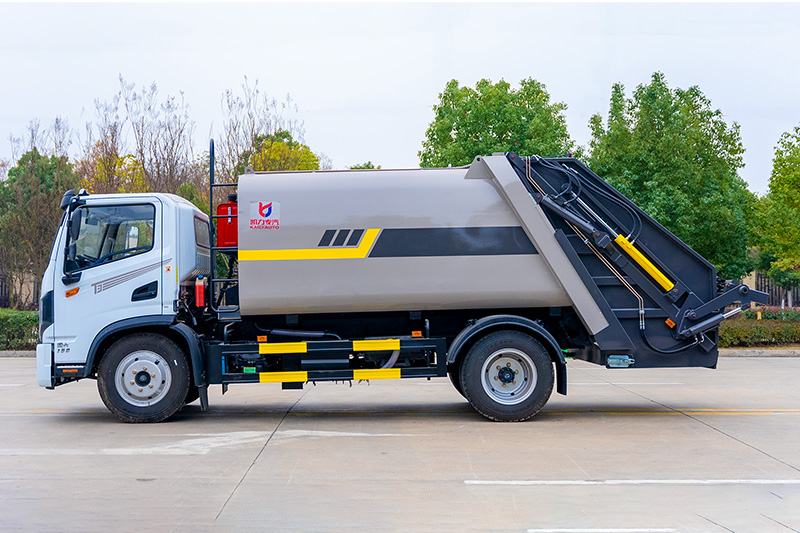

Dongfeng T3 2023 Model Year Compactor Truck, 10 cubic meters
Project Parameters Remarks Vehicle Model KLF5121ZYSE6 4th Generation New Compressed-Type Wheelbase (mm) 3800 Tire Size 8.25 Steel-belted tires Transmission Wanliyang 6-speed transmission Engine Model D25TCIF1 (Yunnei 150 hp) YCY30165-60
