Item | Parameter | Remarks |
Vehicle Model | KLF5072ZYSE6 | 4th Generation New Compression Type |
Wheelbase (mm) | 3308 | |
Tire Specification | 7.00 Steel Wire Tire | |
Transmission |
WLY 5-speed Transmission | |
Engine Model |
D20TCIF11 |
China VI Emission, Diesel Engine |
Engine Power (kW) | 93 | |
Overall Dimensions 【L×W× H (mm)】 |
6860,6740,6565,6520*2060,2080*2900 | Four rear structures; overall length varies by structure |
Maximum Gross Mass (kg) | 7360 | |
Rated Load Mass (kg) | 1515,1580,1365,1430 | |
Curb Weight (kg) | 5650,5800 | Certified based on actual vehicle weight |
Effective Box Volume (m³) | 7 | |
Operation Mode | Electric Control / Manual / Remote Control | Three operation modes are standard |
Single Loading Cycle Time |
12–25S | |
Unloading Time | ≤25S |

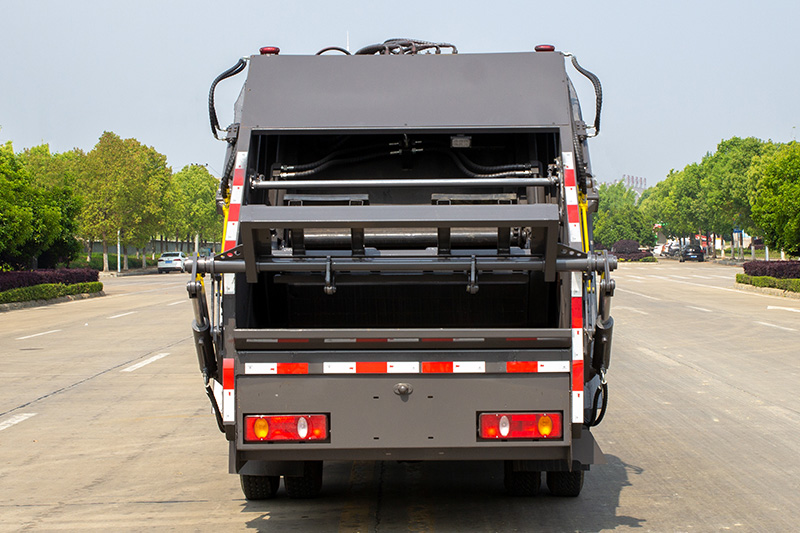

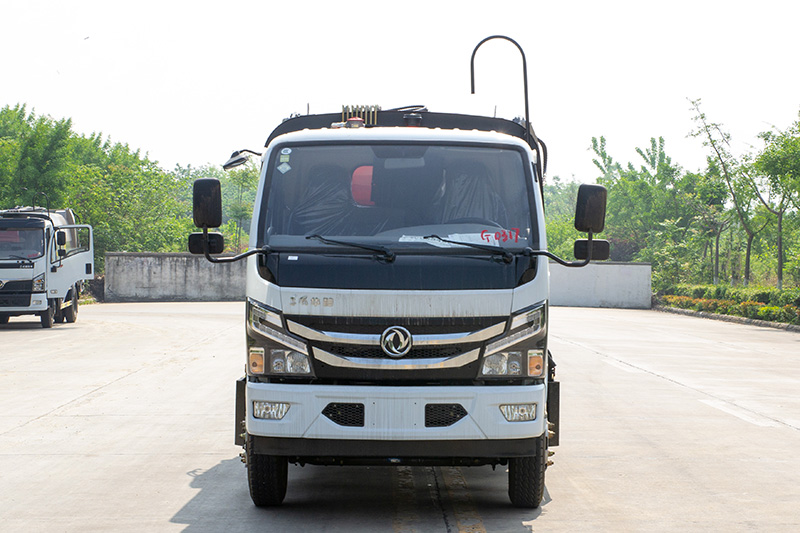

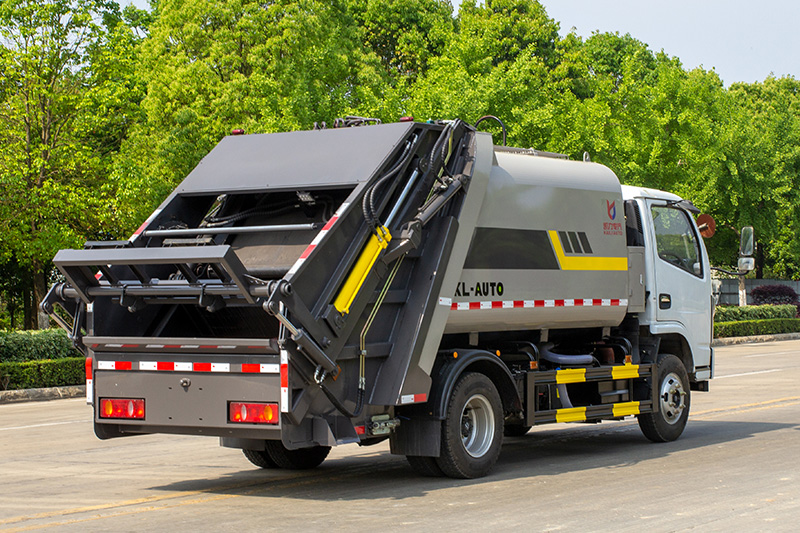

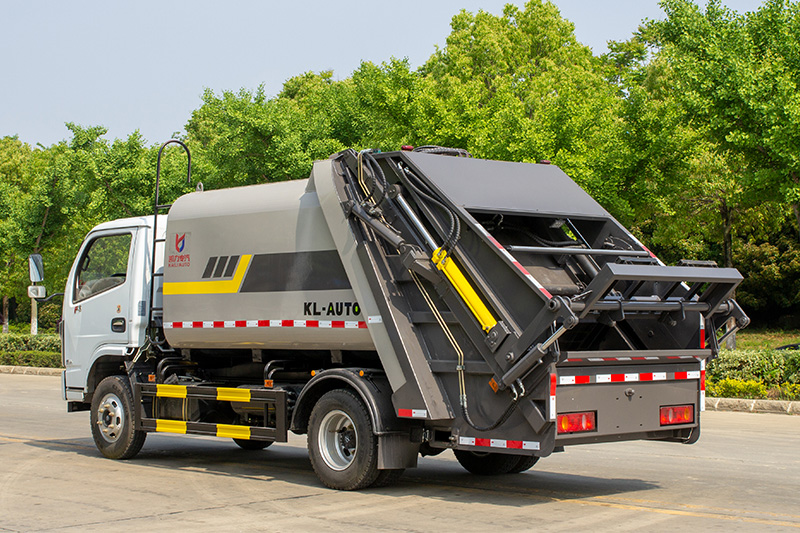

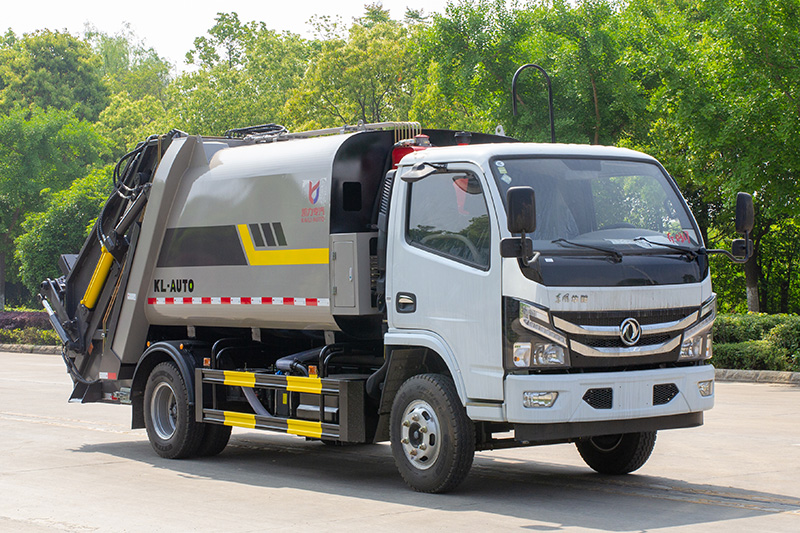

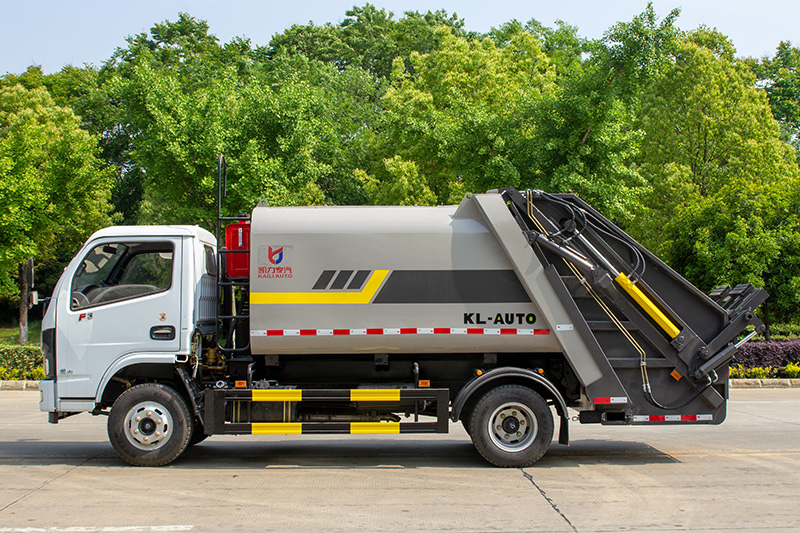

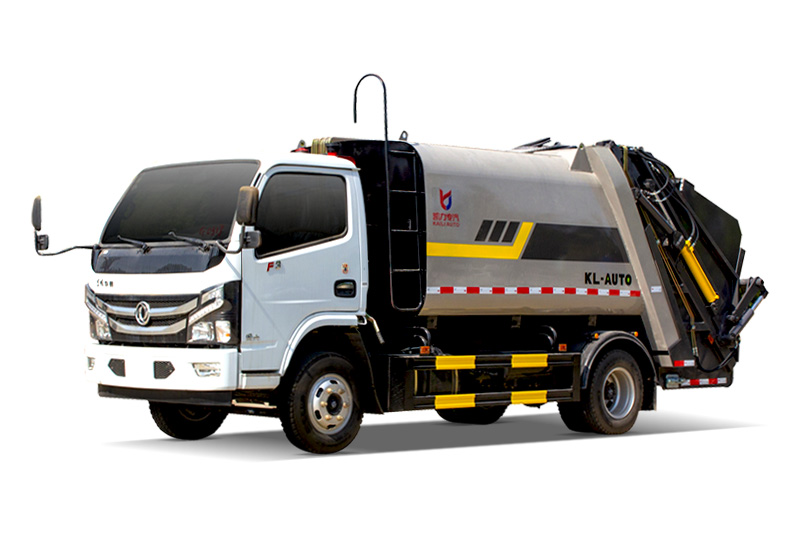

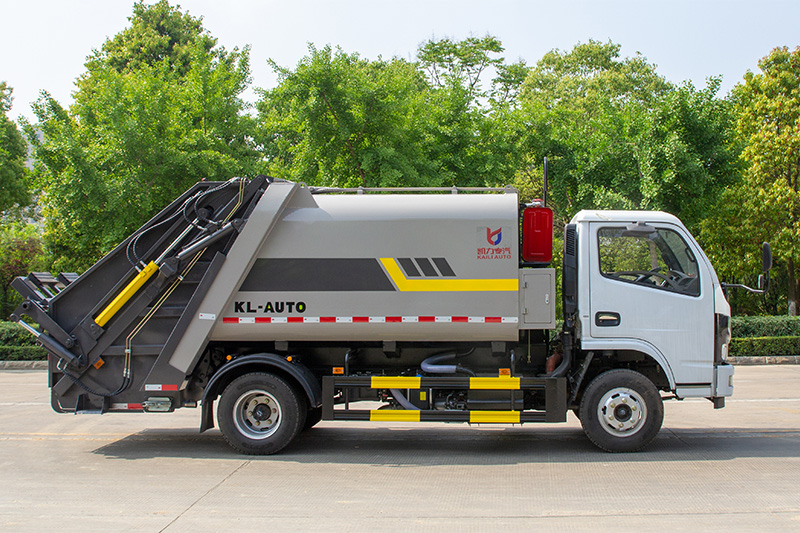

Dongfeng F3 2023 Model Year Compactor Truck, 7 cubic meters
Project Parameters Remarks Vehicle Model KLF5072ZYSE6 4th Generation New Compressed-Type Wheelbase (mm) 3308 Tire Size 7.00 Steel-belted tires Transmission Wanliyang 5-speed transmission Engine Model D20TCIF11 National VI Emission Standard, Diesel Engine Engine Power (k
