Item | Parameter | Remarks |
Vehicle Model | KLF5070ZYSQ6 | 4th Generation New Compression Type |
Wheelbase (mm) | 3360 | |
Tire Specification | 7.00 Steel Wire Tire | |
Transmission |
Isuzu 5-speed Transmission | |
Engine Model |
4KH1CN6LB Isuzu (China) Engine Co., Ltd. |
China VI Emission, Diesel Engine |
Engine Power (kW) | 88kW | |
Overall Dimensions 【L×W× H (mm)】 |
6850*2080*2650 | Four rear structures; overall length varies by structure |
Maximum Gross Mass (kg) | 7300 | |
Rated Load Mass (kg) | 1630 | |
Curb Weight (kg) | 5540 | Certified based on actual vehicle weight |
Effective Box Volume (m³) | 7 | |
Operation Mode | Electric Control / Manual / Remote Control | Three operation modes are standard |
Single Loading Cycle Time |
12–25S | |
Unloading Time | ≤25S |

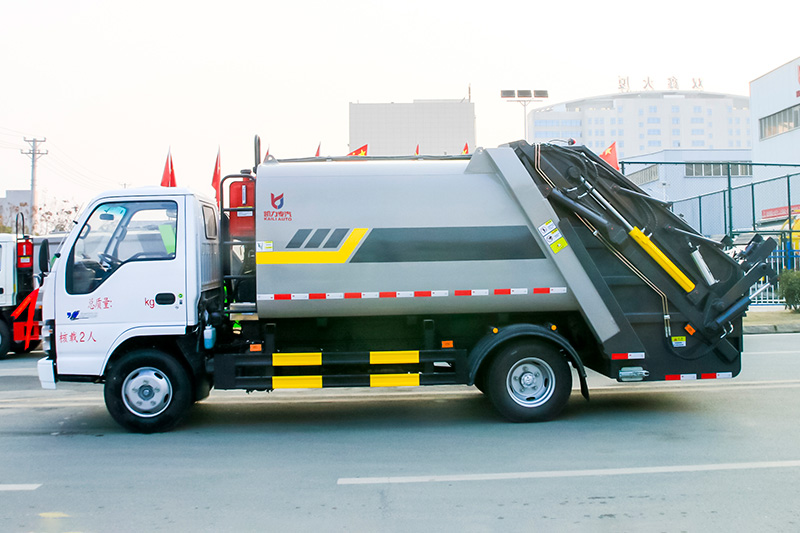

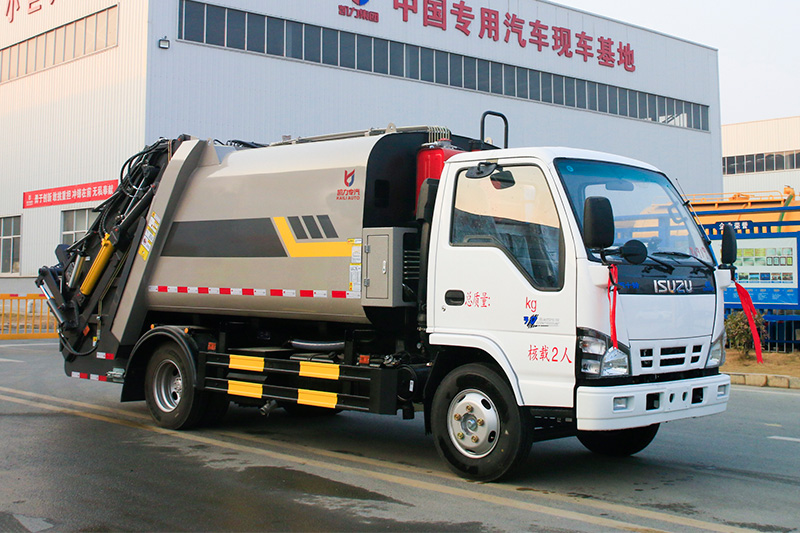

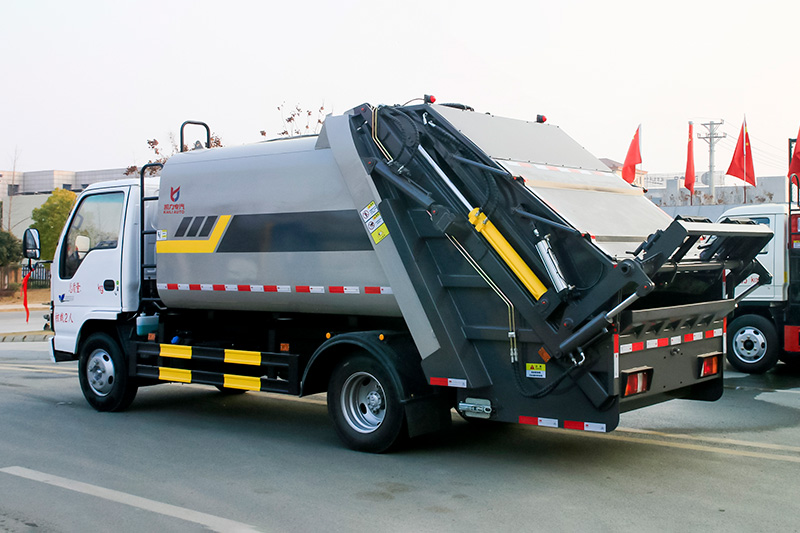

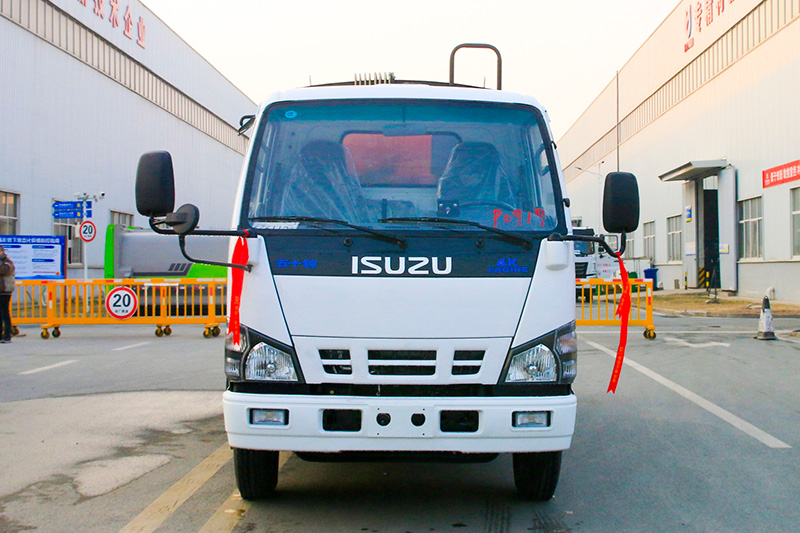

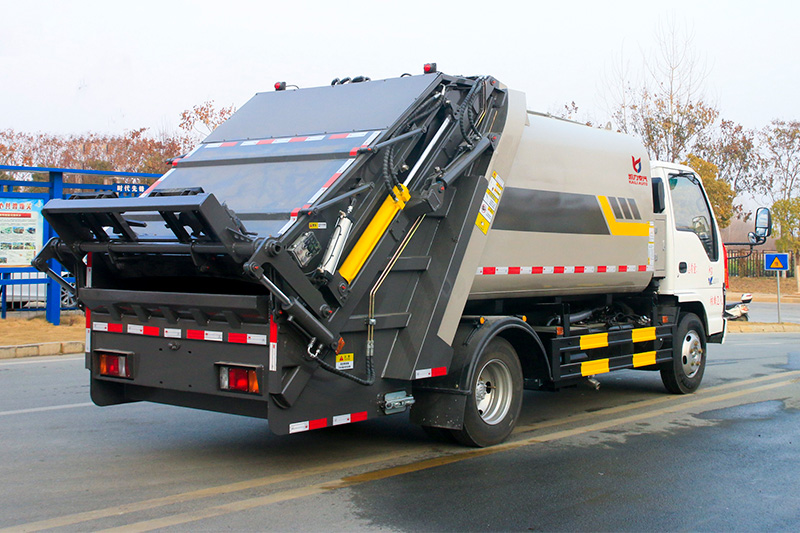

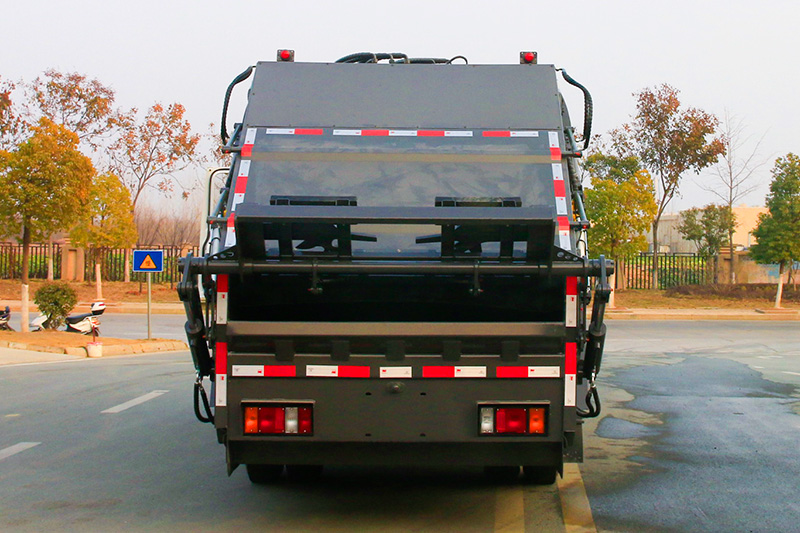

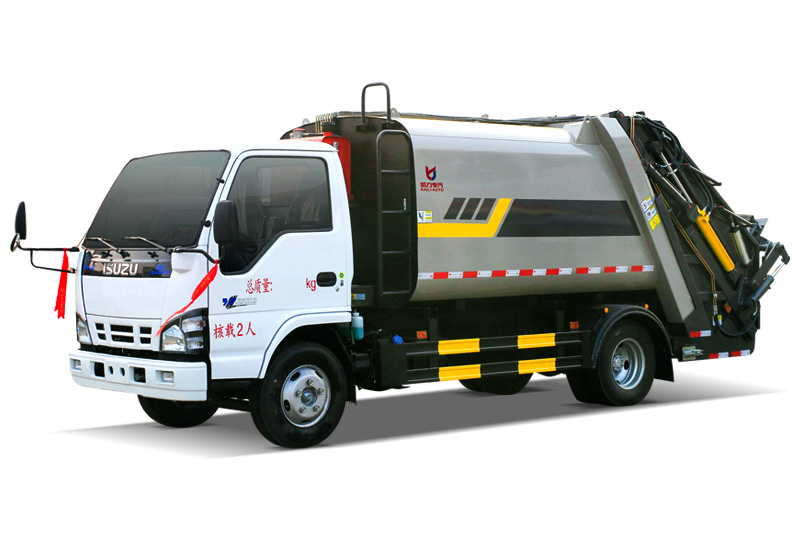

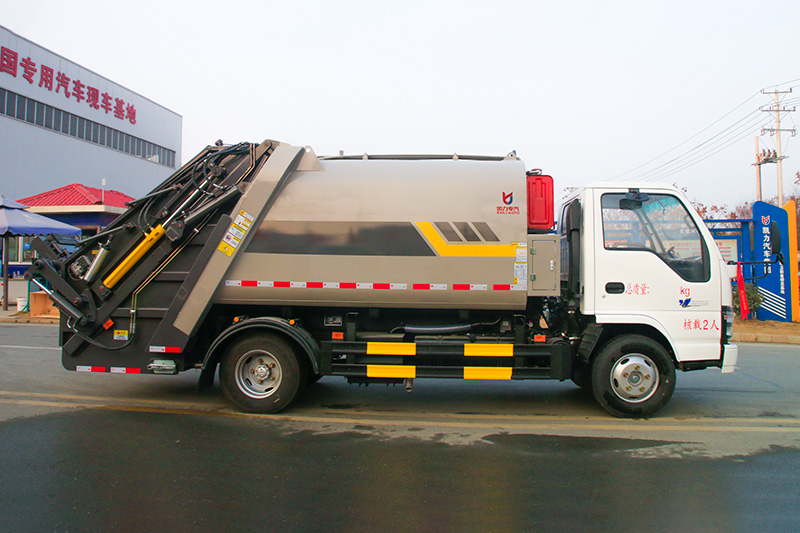

Isuzu 2023 Model Year Compactor Truck, 7 cubic meters
Project Parameters Remarks Vehicle Model KLF5070ZYSQ6 4th Generation New Compressed-Type Wheelbase (mm) 3360 Tire Size 7.00 Steel-belted tires Transmission Isuzu 5-speed transmission Engine Model 4KH1CN6LB Isuzu (China) Engine Co., Ltd. National VI Emission Standard
