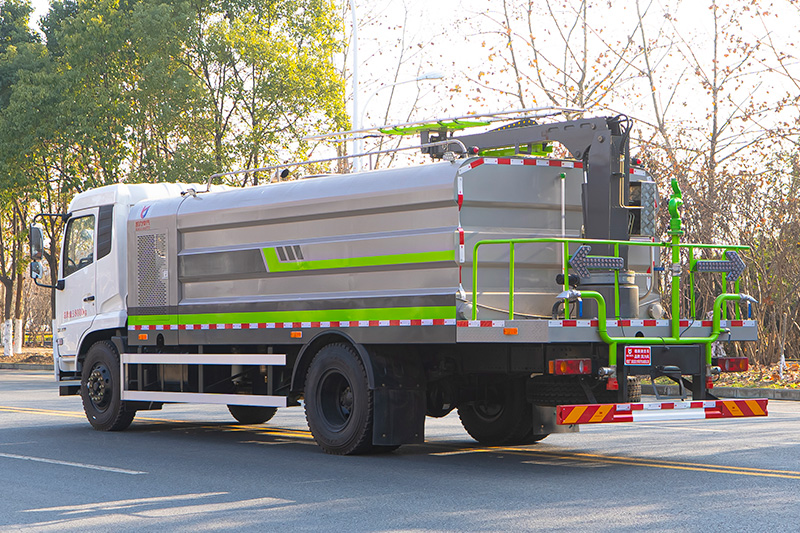

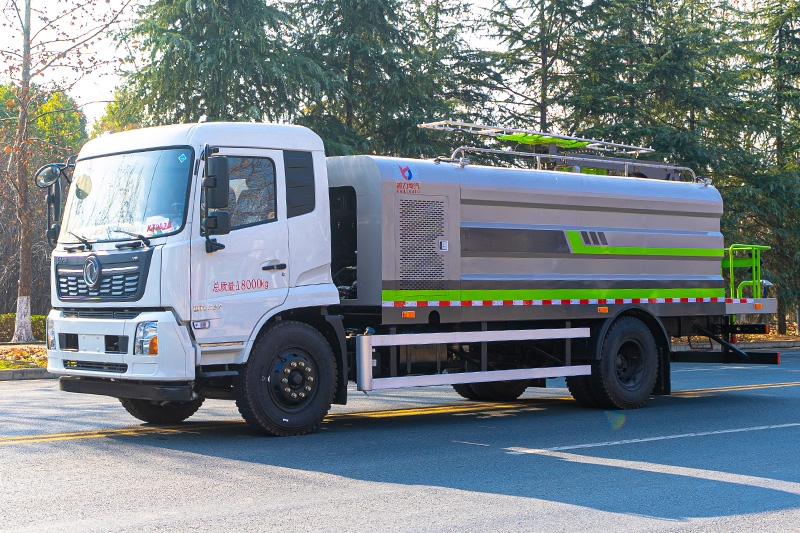

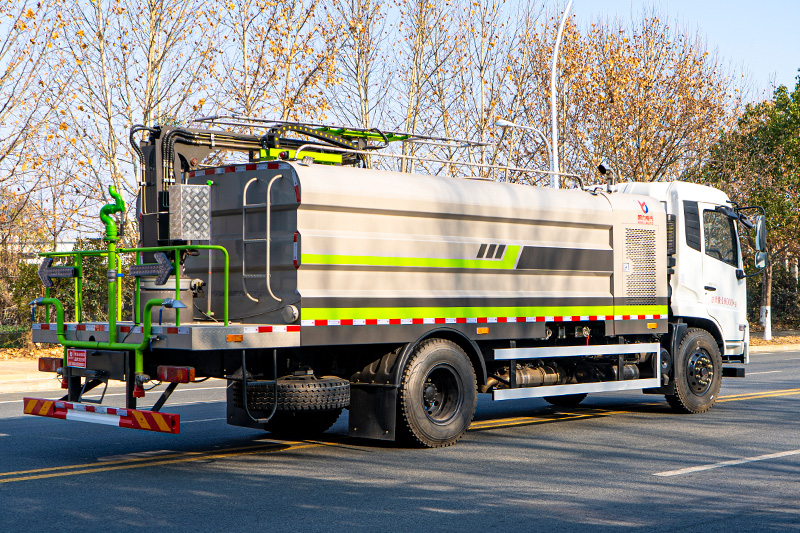

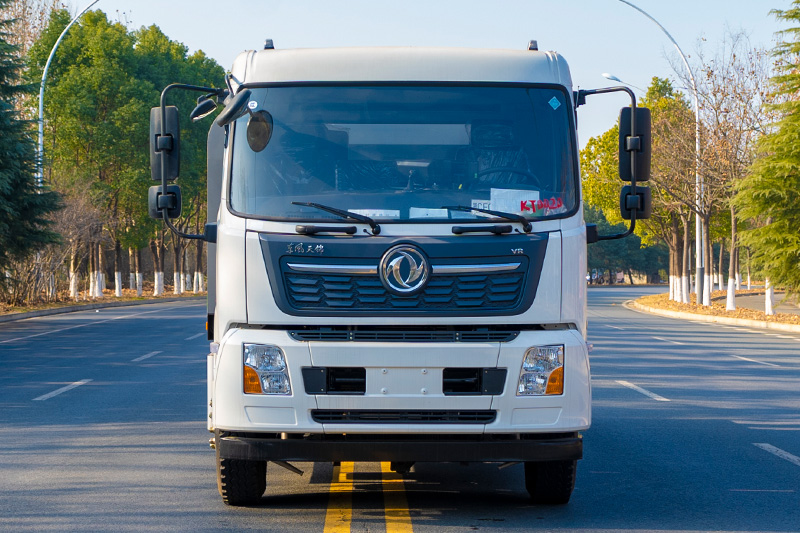

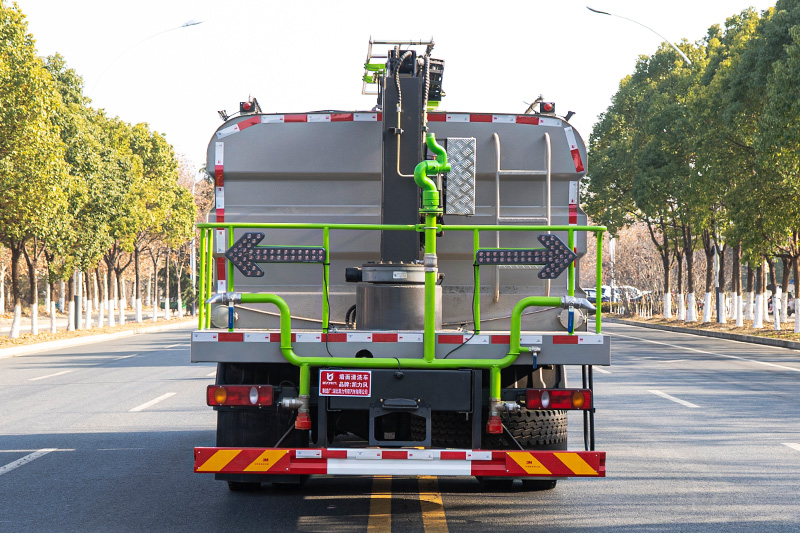

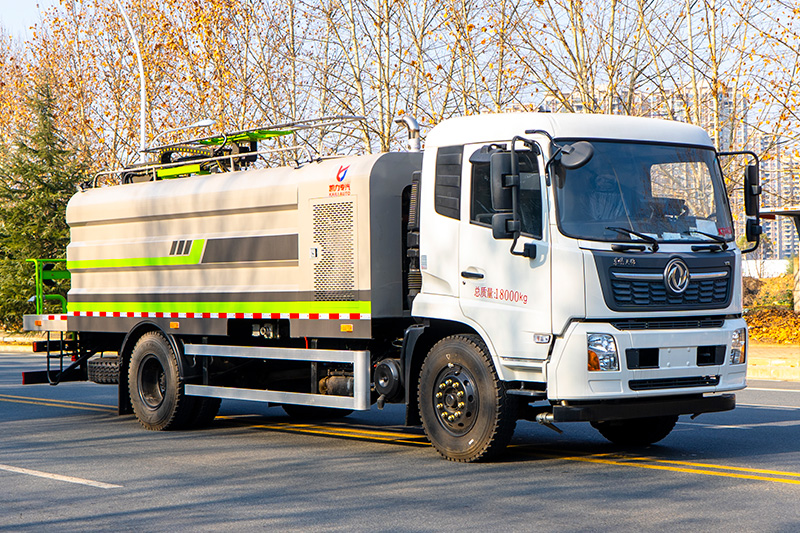

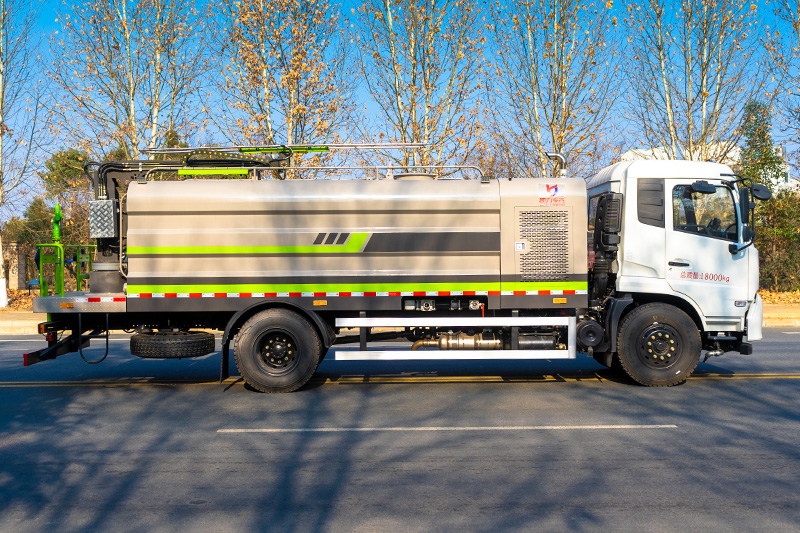

Kailifeng-Dongfeng Tianjin Solar Panel Cleaning Truck

Chinese Brand

Kailifeng

Chassis Model

DFH1180EX8

Chassis Engine Model

B6.2NS6B230

Engine Power (kw)

169

Engine Displacement (ml)

6200

Engine Manufacturer

Dongfeng Cummins Engine Co., Ltd.

Overall Dimensions (mm) L×W×H

9170, 9200, 9225

×2500,2550×3200,3280

Gross Mass (Kg)

18000

Curb Weight (Kg)

9540, 9820

Rated Load (kg)

/

Wheelbase (mm)

4700

Tire Specification

10.00R20

High Pressure Pump

Flow Rate (L/min)

215

Pressure (Mpa)

22

Brand

PINFL (Germany)

Speed (r/min)

1000

Low Pressure Pump

Head (m)

90

Speed (r/min)

1480

Model

80QZBF-60/90

Brand

Tianyi

Performance Parameters

Cleaning Speed (Km/h)

2.5-3

High Pressure Cleaning Capacity (㎡/h)

25000

Max. Cleaning Water Pressure (Mpa)

17

Cleaning Water Flow Rate (L/min)

215

Low Pressure Sprinkling Flow Rate (L/min)

600-800

Low Pressure Sprinkling Width (m)

≥24

Low Pressure Washing Width (m)

≥16

Green Cannon Range (m)

38

Fuel Consumption

Driving Fuel Consumption (L/100km)

21.5

Cleaning Operation Fuel Consumption (L/h, L/1000 ㎡)

14/5.8
