Configuration Parameters of KLF5030TCXB6 Snow Removal Vehicle | |||
Gross Mass (kg) |
2820 |
Rated Load (kg) |
400 |
Curb Weight (kg) |
2095 |
Chassis Model |
BJ1037V2MAV-4H |
Engine Model |
4F20TC |
Power (kW) / HP (ps) |
120/165 |
Displacement (ml) |
1968 | Overall Dimensions (L×W×H, mm) | 5995×1860,1900× 1930 |
Wheelbase (mm) |
3398 |
Tire Specification |
245/70R16 |
Snow Plow Parameters | |||
Plow Size (mm) |
2000*1000*1100 |
Working Speed (km/h) |
30～40 |
Obstacle Height (mm) |
≤200 |
Left/Right Deflection |
≥30° |
Snow Sweeper Parameters (Optional) | |||
Overall Dimensions (mm) |
2168×1220×1220 |
Brush Diameter (mm) |
650 |
Snow Thickness (mm) |
≤120 |
Working Speed (r/min) |
≥200-300 |
Snow Melting Spreader Parameters | |||
Spreader Volume (m³) |
1.2 |
Spreading Width (m) |
1-20 (Adjustable) |
Salt Spreading Rate (g/㎡) |
20～150 (Adjustable) |
Auxiliary Engine | Kama Diesel Engine (6.3KW) |

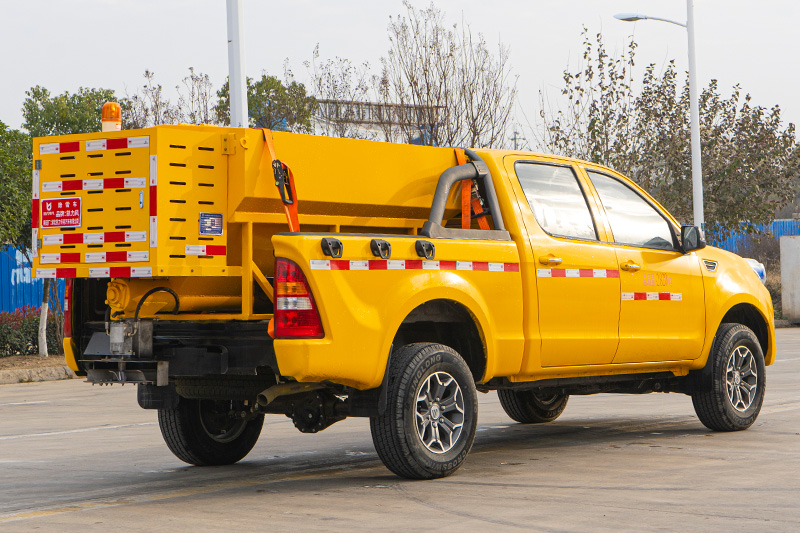

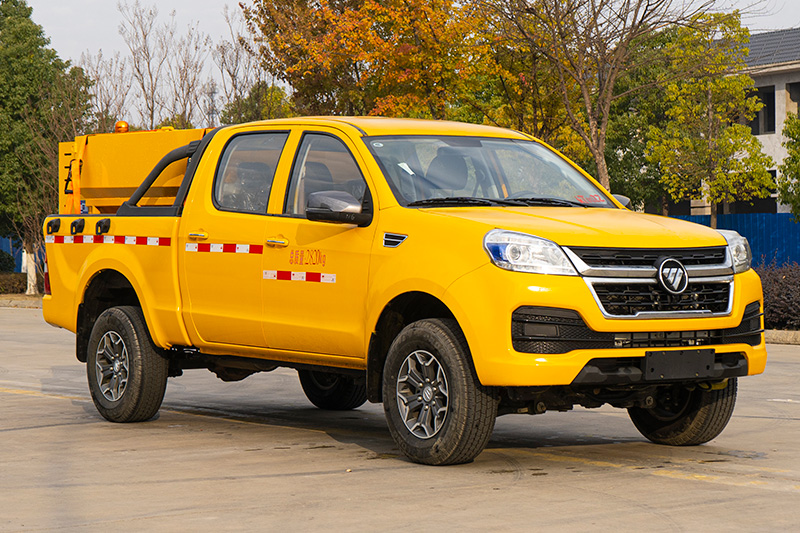

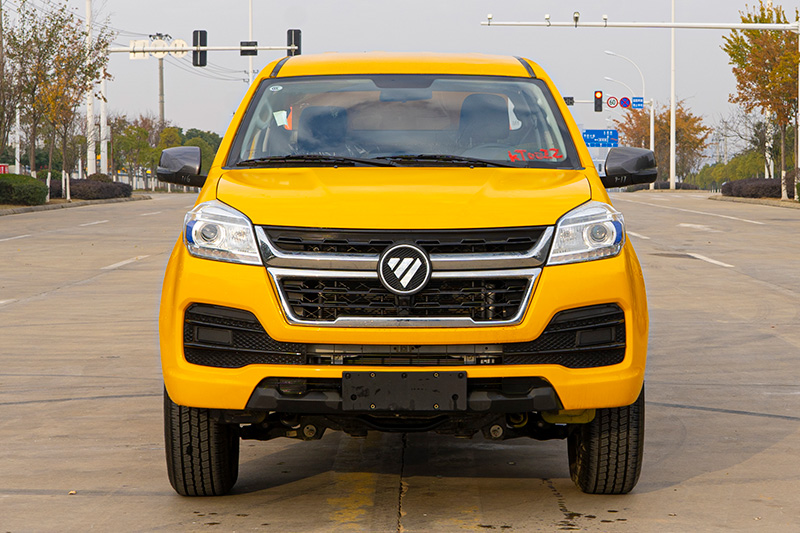

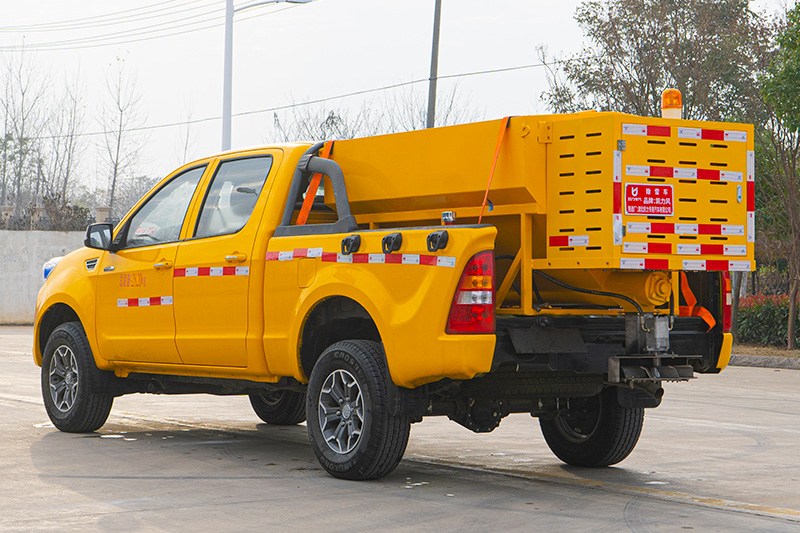

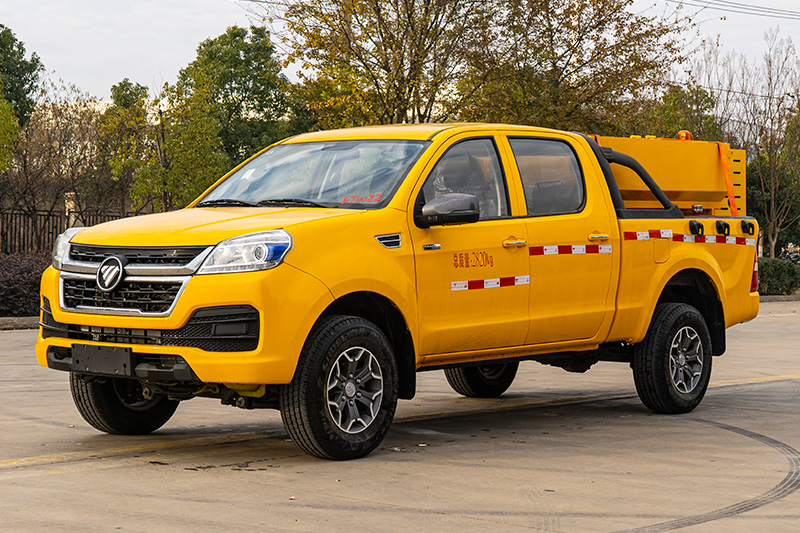

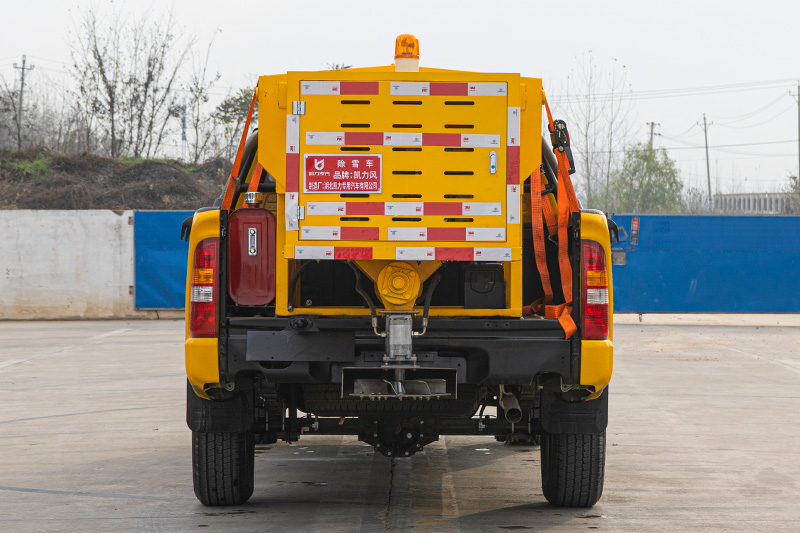

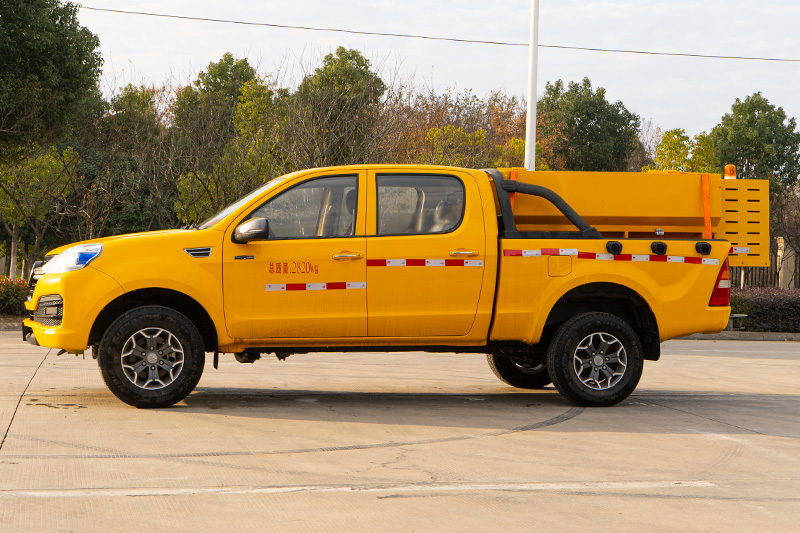

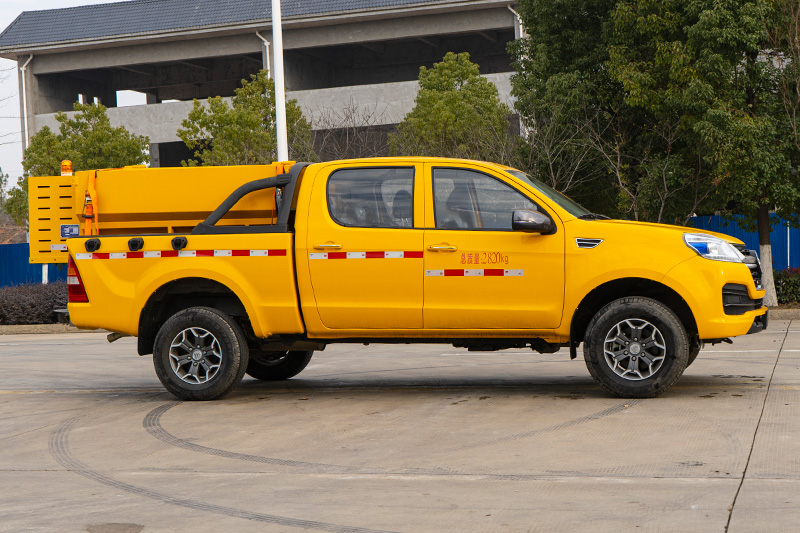

Kailifeng Snow Plow - Pickup Truck, 2.5 cubic meters
Kailifeng KLF5030TCXB6 Snow Plow Specifications Gross Vehicle Weight (kg) 2820 Rated Payload (kg) 400 Curb Weight (kg) 2095 Chassis Model BJ1037V2MAV-4H Engine Model 4F20TC Power (kW) Horsepower
