Item | Parameter | Remarks |
Vehicle Model | KLF5180GQWL6 | |
Wheelbase (mm) |
4700 | |
Engine Model |
YCS06200-60, YCS06245-60A |
China VI Emission, Diesel Engine |
Engine Power (kW) |
147, 180 | |
Overall Dimensions [L×W×H (mm)] |
8750, 8850 × 2550 × 3500, 3550, 3600, 3650 | |
Curb Weight (kg) | 12575 | |
Maximum Gross Mass (kg) | 18000 | |
Working Speed (km/h) | Engine Speed r/min | Stationary Neutral Operation |
Effective Tank Volume (m³) | 15.8 m³ | |
Hydraulic System Pressure (MPa) | 18 | |
Operation Mode |
Manual |

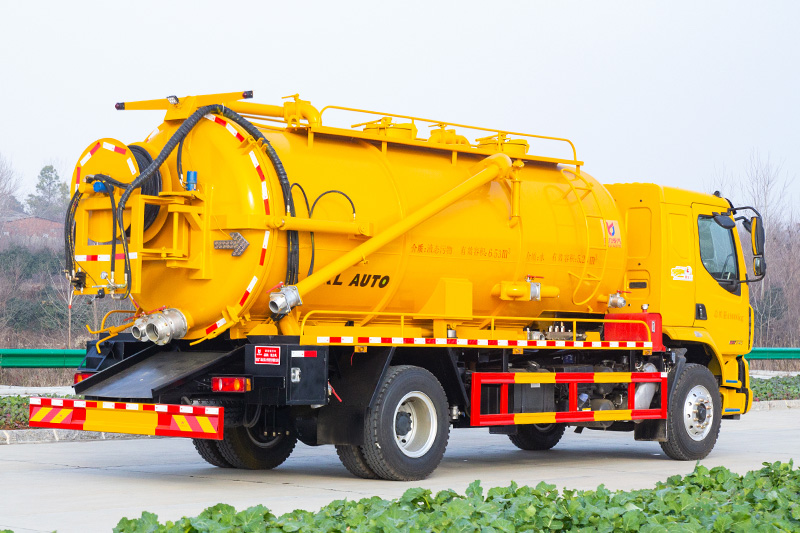

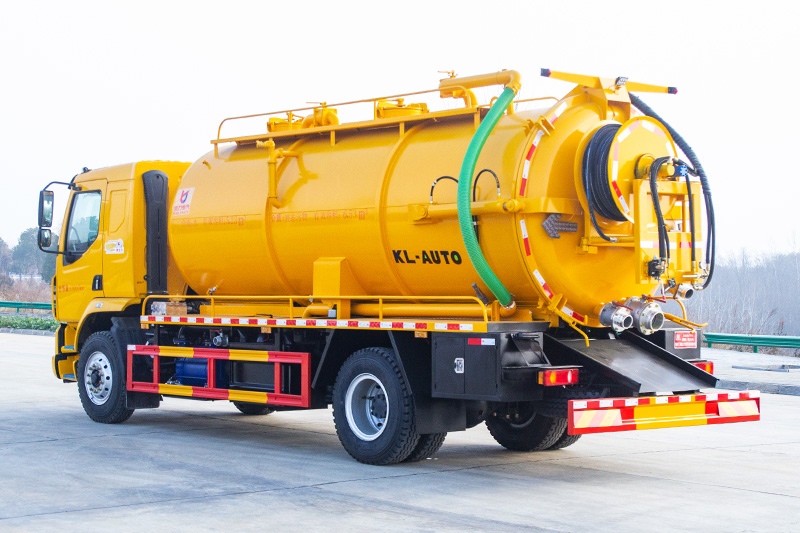

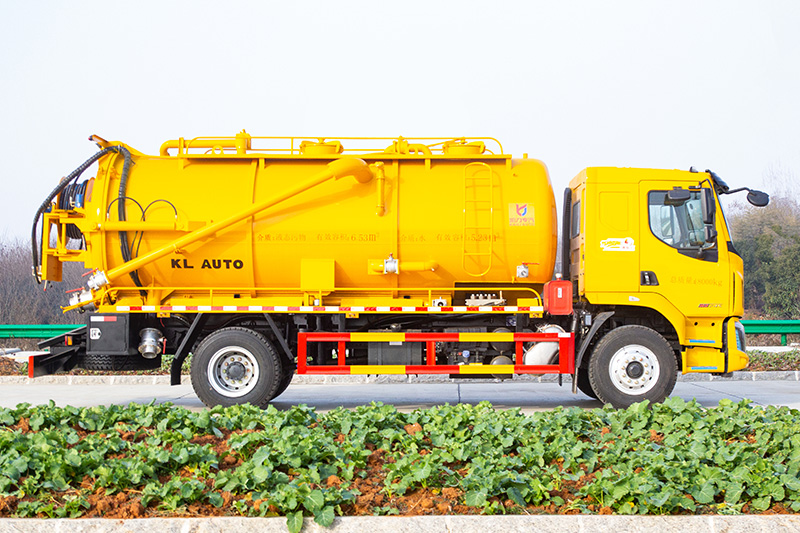

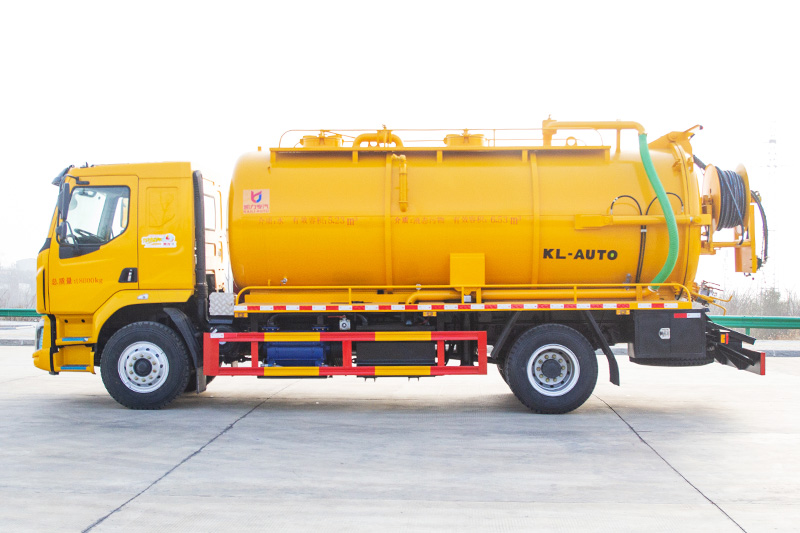

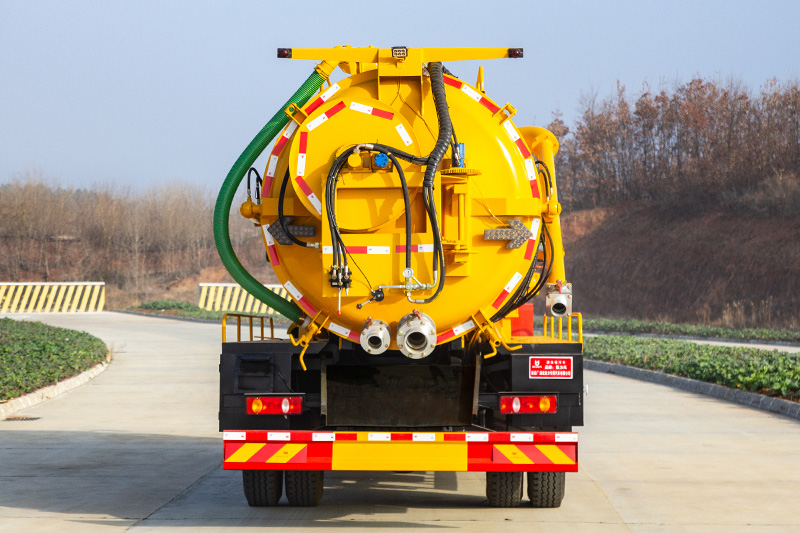

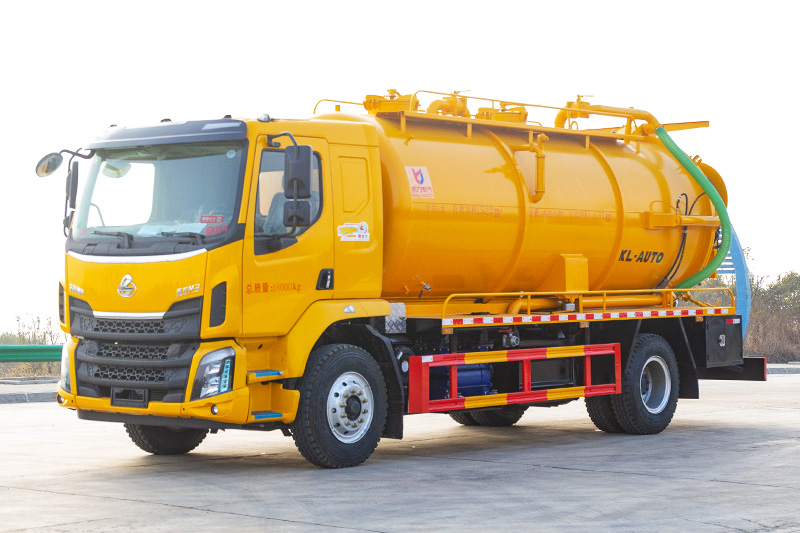

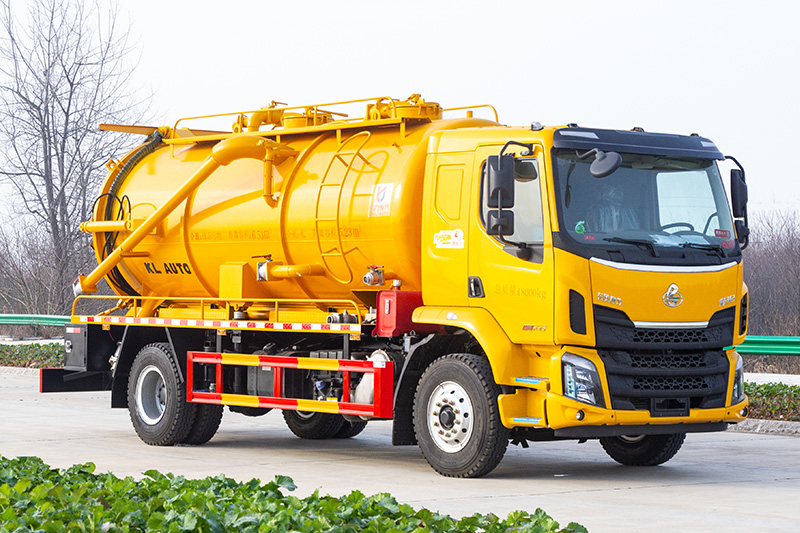

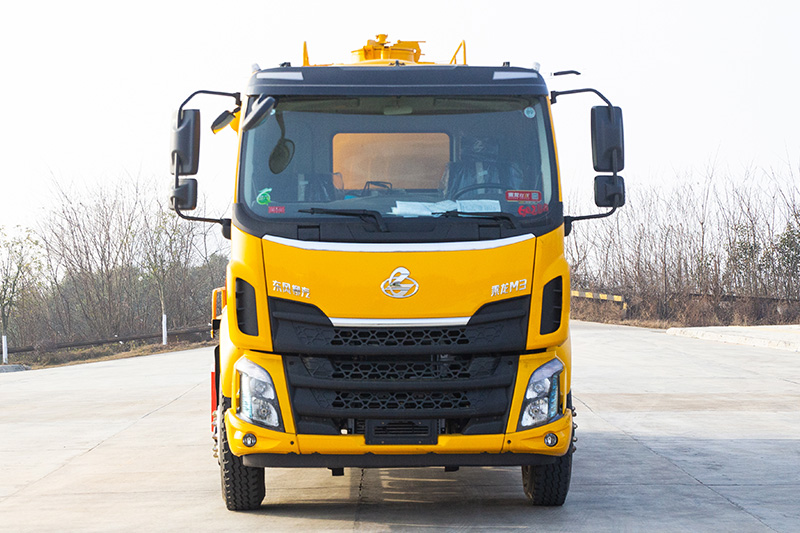

Dongfeng Liuzhou M3 Sewage Suction Truck (Integrated Tank) 15.8 cubic meters
Project Parameters Notes Vehicle Model KLF5180GQWL6 Wheelbase (mm) 4700 Engine Model YCS06200-60, YCS06245-60A National VI emissions standard, diesel engine Engine Power (kW) 147, 180 Dimensions [Length × Width × Height (mm)] 8750, 88
