Item | Parameter | Remarks |
Vehicle Model | KLF5180GXEE6 | |
Wheelbase (mm) | 3950/4500 | |
Engine Model | YCS04200-68, B6.2NS6B230, D4.0NS6B195 | China VI Emission, Diesel Engine |
Engine Power (kW) | 147/169/143 | |
Overall Dimensions [L×W×H (mm)] | 7600,8000,7450,7050,7250,7800,7650,8200×2500,2550×3200,3300 | |
Curb Weight (kg) | 8500,8045 | |
Gross Vehicle Weight (kg) | 18000 | |
Working Speed (km/h) | Engine Speed r/min | Stationary Neutral Operation |
Effective Tank Volume (m³) | 13.5 | |
Operation Mode | Manual |

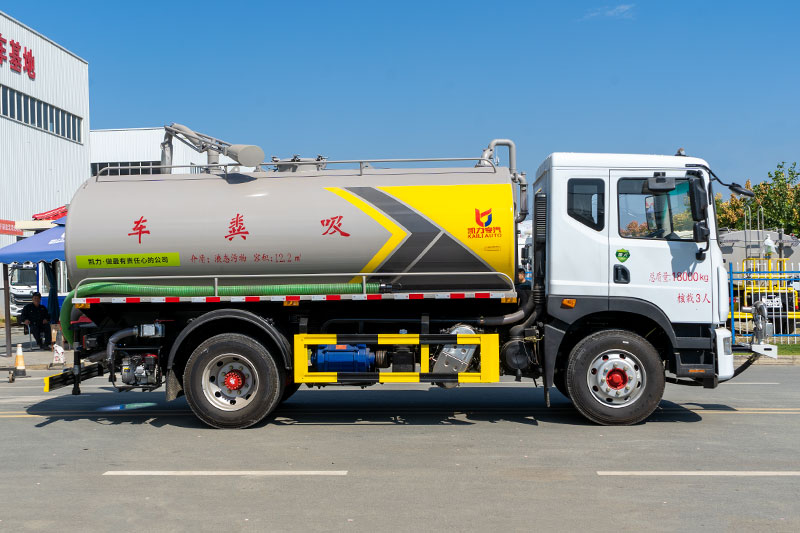

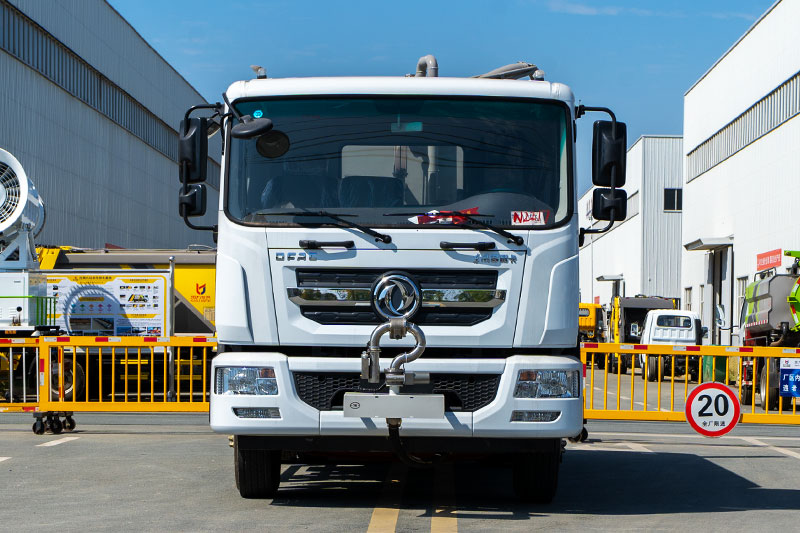

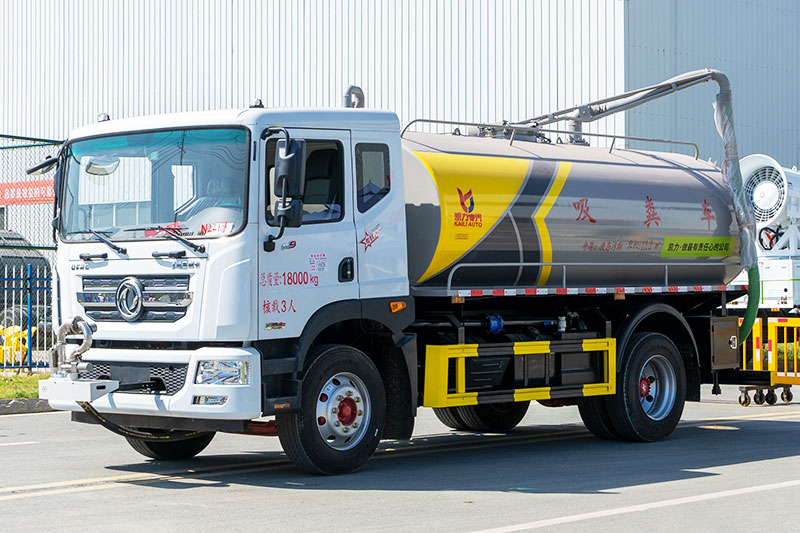

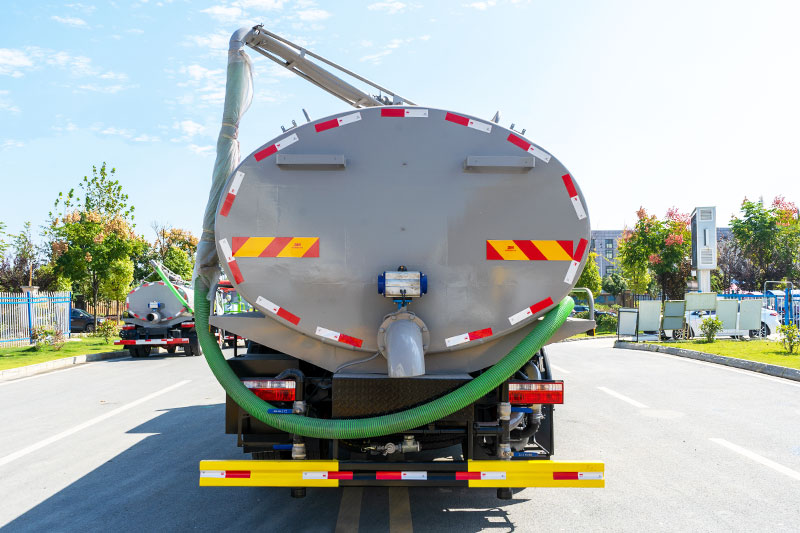

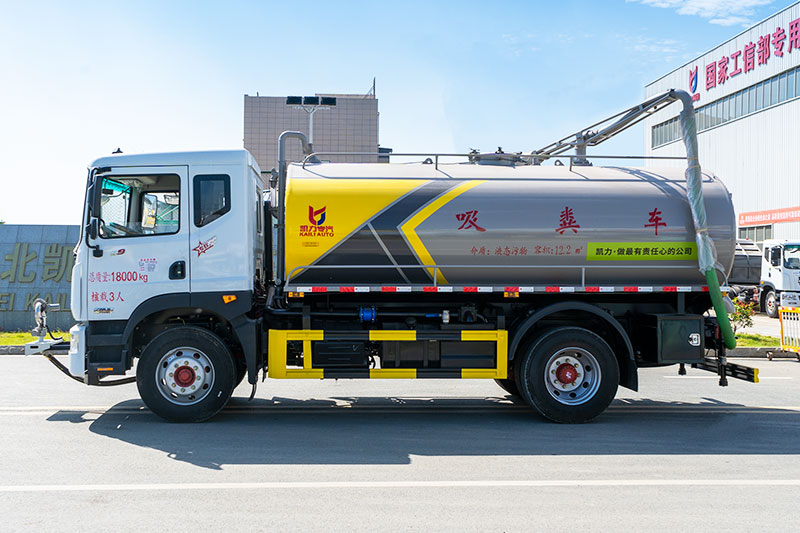

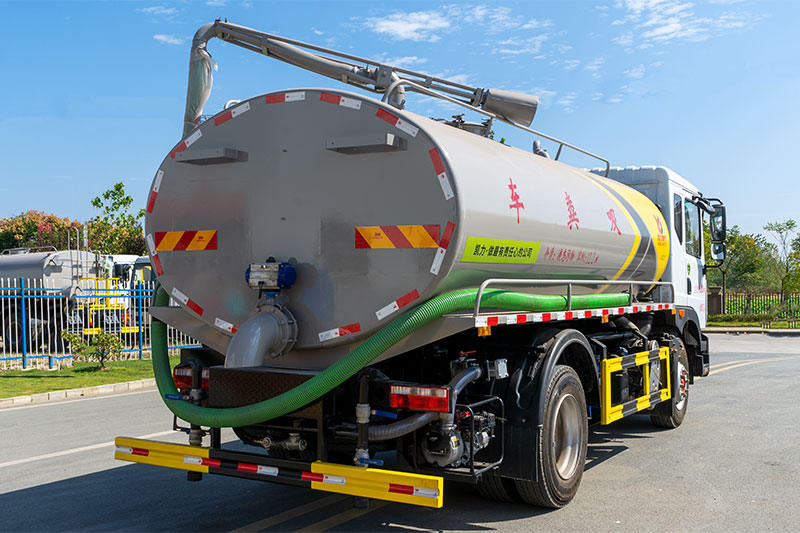

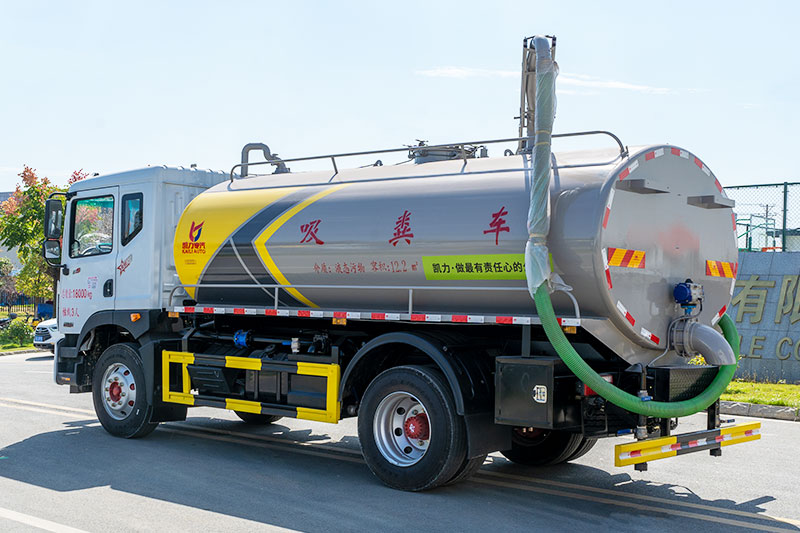

Dongfeng D9 Sewage Suction Truck, 13.5 cubic meters
Project Parameters Notes Vehicle Model KLF5180GXEE6 Wheelbase (mm) 3950/4500 Engine Model YCS04200-68, B6.2NS6B230, D4.0NS6B195 China VI emissions, diesel engine Engine Power (kW) 147/169/143
