Item | Parameter | Remarks |
Vehicle Model | KLF5181GXWE6 | |
Wheelbase (mm) | 3950, 4500 | |
Engine Model | YCS06200-60, B6.2NS6B230, YCS04200-68, YCS06245-60A |
China VI Emission, Diesel Engine |
Engine Power (kW) | 147, 169, 147, 180 | |
Overall Dimensions [L×W×H (mm)] |
7860, 8255 × 2520, 2550 × 3340, 3485 | |
Curb Weight (kg) | 8850, 9170 | |
Gross Vehicle Weight (kg) | 18000 | |
Working Speed (km/h) | Engine Speed r/min | Stationary Neutral Operation |
Effective Tank Volume (m³) | 13.5 | |
Hydraulic System Pressure (MPa) | 18 | |
Operation Mode |
Manual |

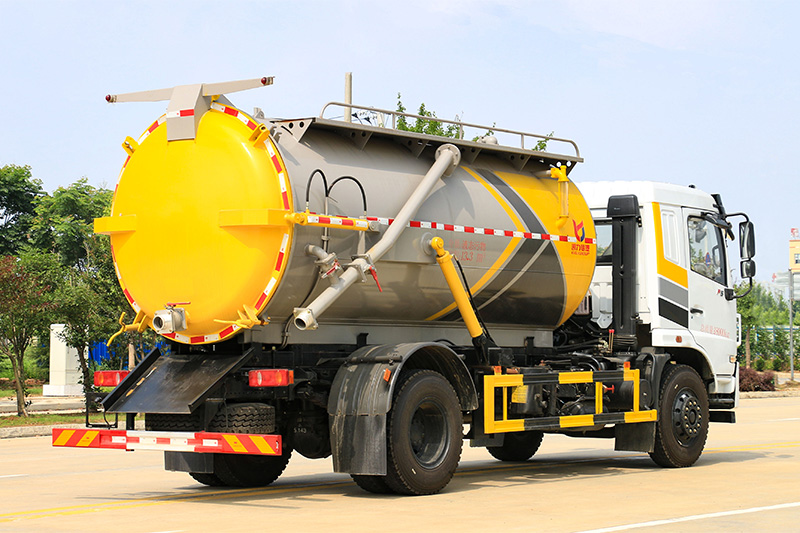

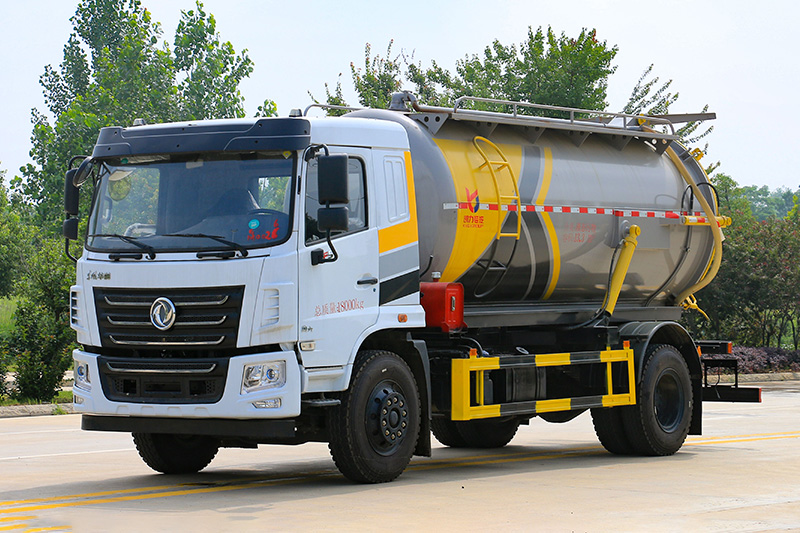

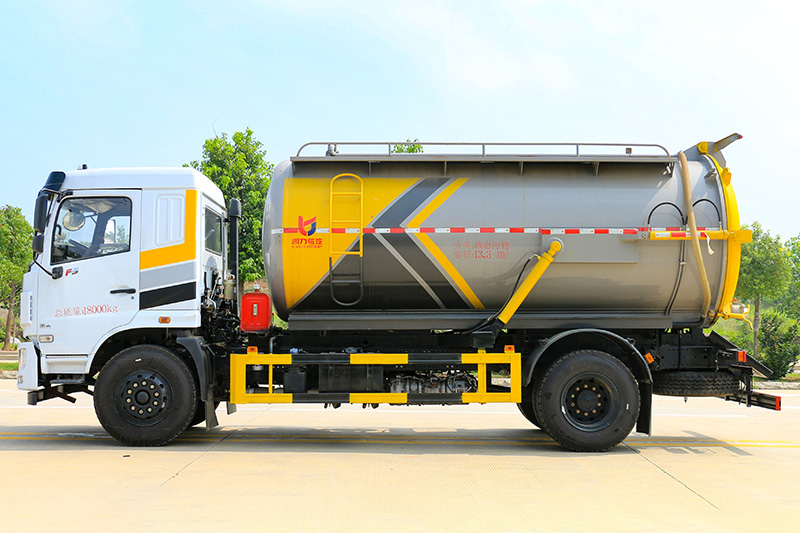

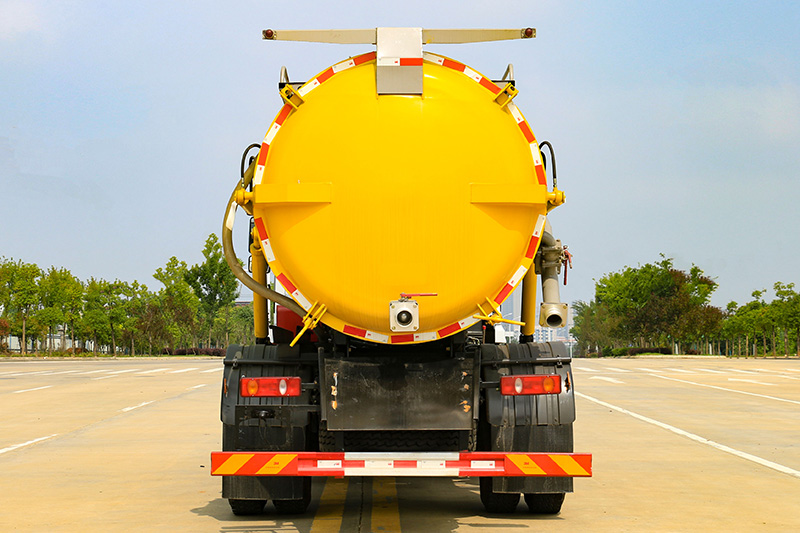

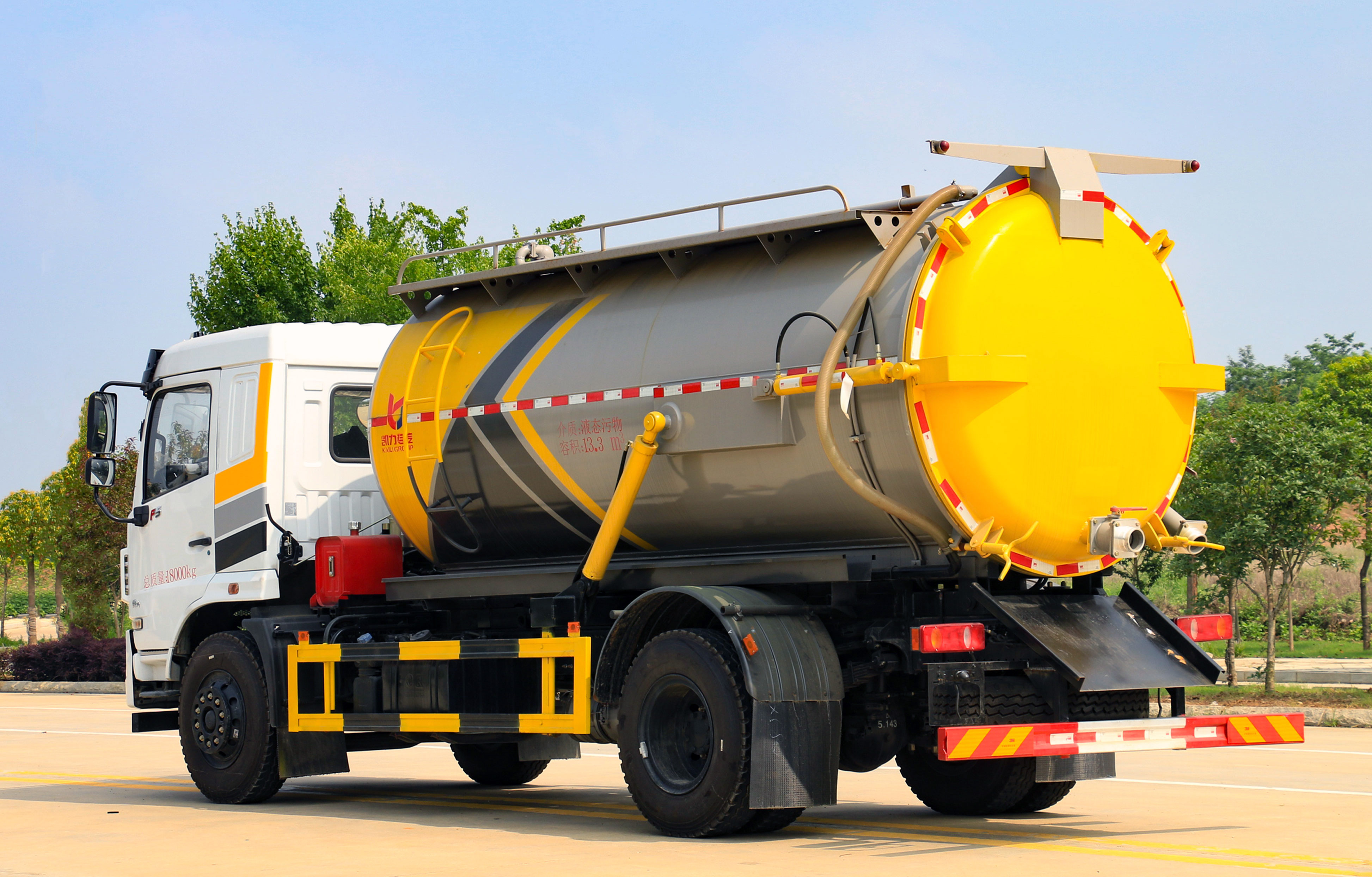

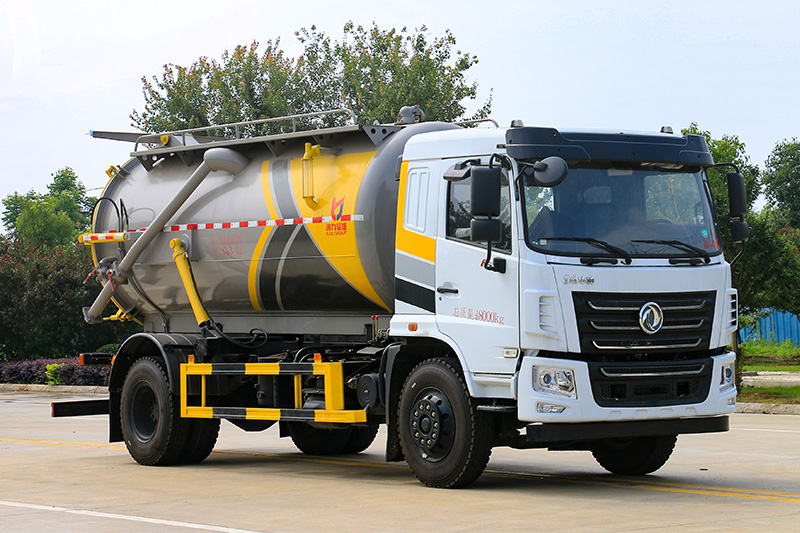

Dongfeng Huasheng KL5 Vacuum Truck, 13.5 cubic meters
Project Parameters Remarks Vehicle Model KLF5181GXWE6 Wheelbase (mm) 3950, 4500 Engine Model YCS06200-60, B6.2NS6B230, YCS04200-68, YCS06245-60A National VI Emission Standard, Diesel Engine Engine Power (kW) 147, 169, 147, 180 Dimensions [Length × Width ×
