Item | Parameter | Remarks |
Vehicle Model | KLF5070GXWH6 | |
Wheelbase (mm) | 3365, 2850 | |
Engine Model |
D25TCIF1, Q23-115E60 |
China VI Emission, Diesel Engine |
Engine Power (kW) | 110, 85 | |
Overall Dimensions [L×W×H (mm)] |
5900 × 2000 × 2690, 2650 | |
Curb Weight (kg) | 3870, 4030 | |
Gross Vehicle Weight (kg) | 7360 | |
Working Speed (km/h) | Engine Speed r/min | Stationary Neutral Operation |
Effective Tank Volume (m³) | 4.6 | |
Hydraulic System Pressure (MPa) | 18 | |
Operation Mode |
Manual |

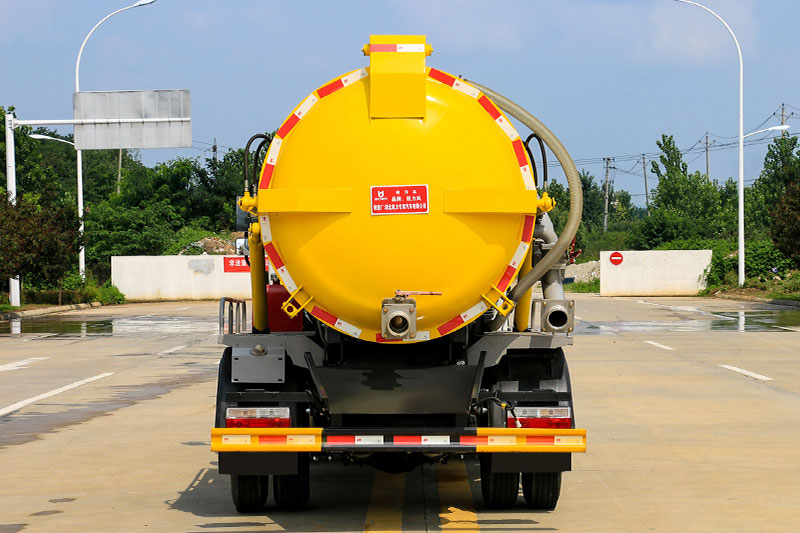

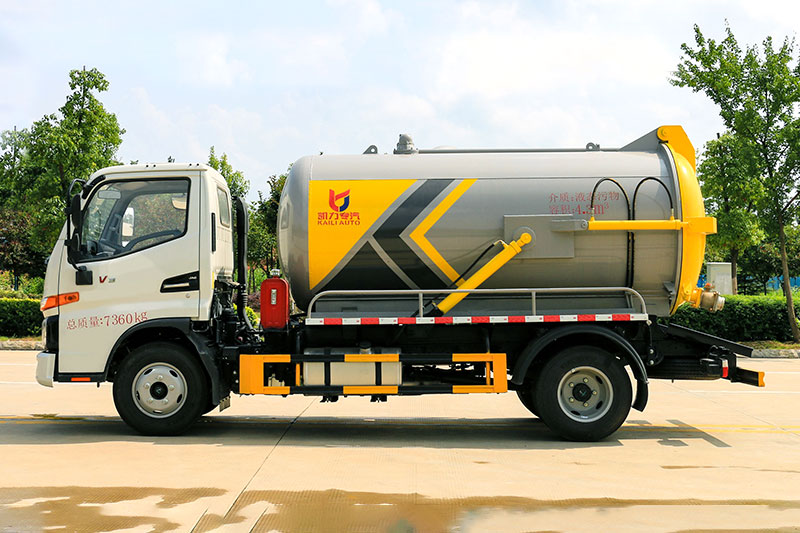

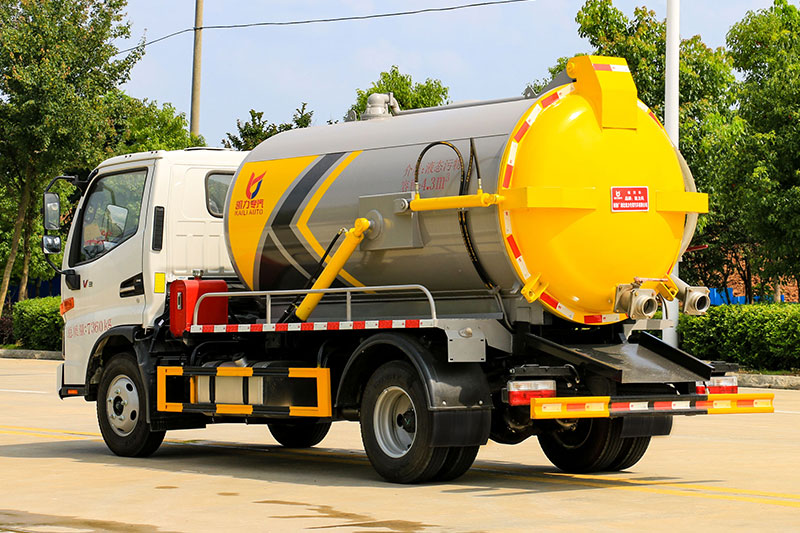

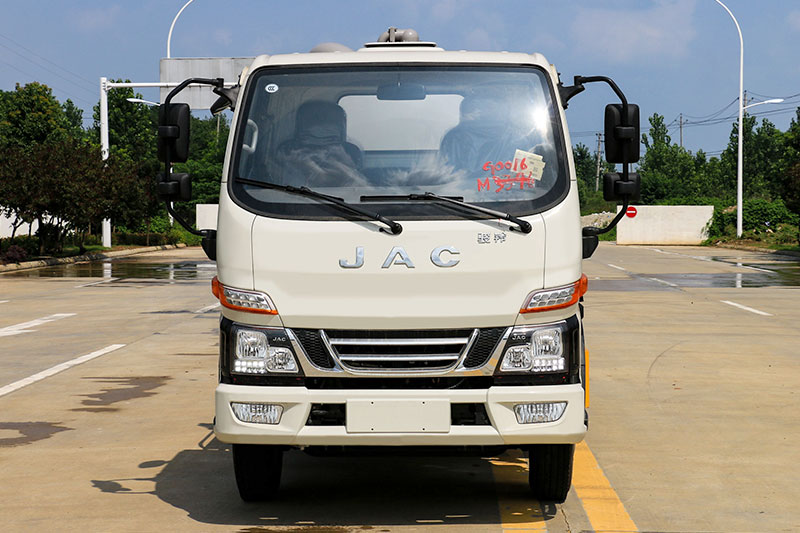

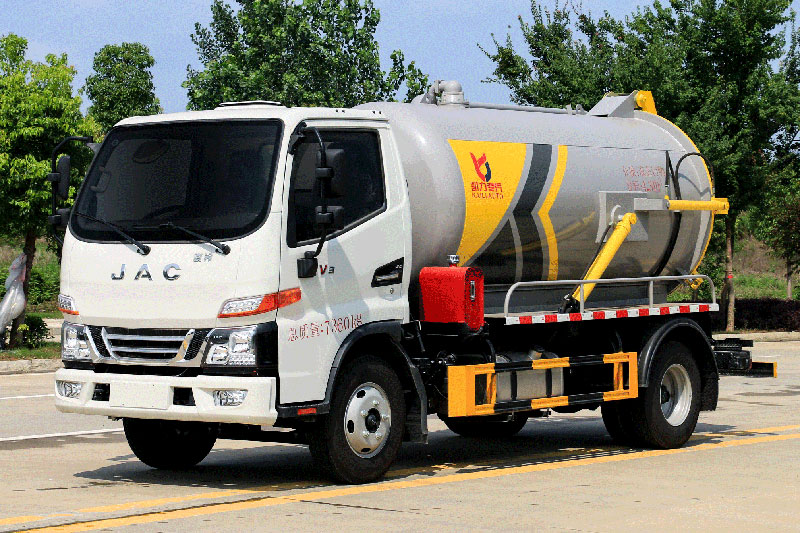

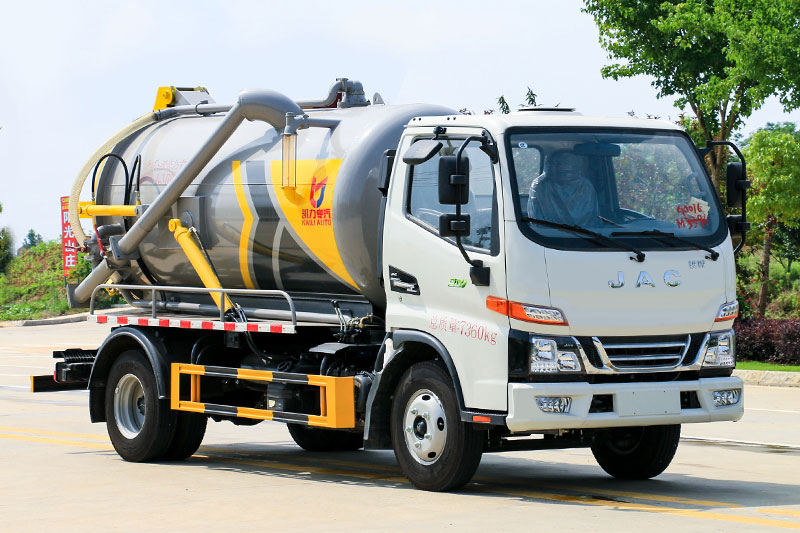

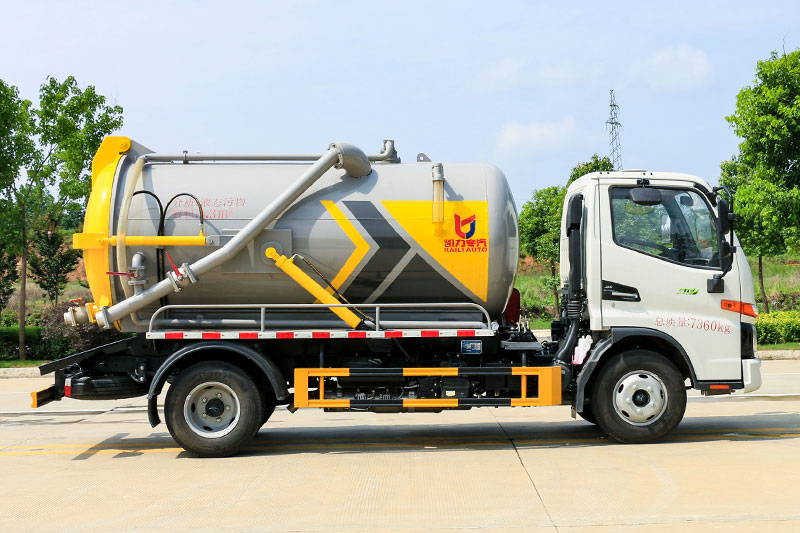

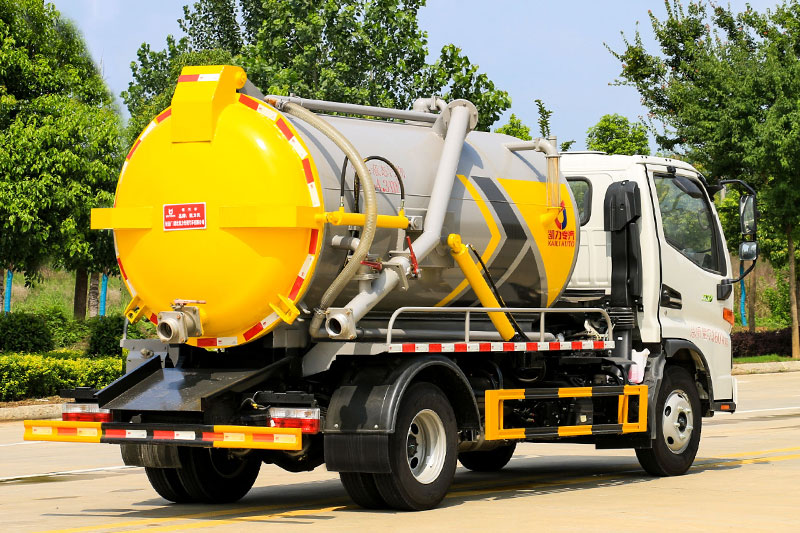

JAC Junling V3 Vacuum Truck, 4.6 cubic meters
Project Parameters Notes Vehicle Model KLF5070GXWH6 Wheelbase (mm) 3365, 2850 Engine Model D25TCIF1, Q23-115E60 National VI Emission Standard, Diesel Engine Engine Power (kW) 110, 85 Dimensions [Length × Width × Height (mm)] 5900 × 2000 × 2690, 265
