Category | Item | Parameter or Configuration |
Vehicle Parameters | Product Model | KLF5181TDYE6 |
Overall Dimensions 【L × W × H (mm)】 | 7770,8680,8270,9180*2510*3790 | |
Curb Weight (kg) | 10410,9500,9370 | |
Maximum Gross Weight (kg) | 18000 | |
Rated Load Capacity (kg) | 7460,7395,8370,8305,8435,8500 | |
Rated Persons | 3 persons | |
Chassis Parameters | Chassis Model | EQ1185LJ9CDE |
Chassis Manufacturer | Dongfeng Motor Co., Ltd. | |
Engine Model | B6.2NS6B230, D4.0NS6B195, YCS04200-68 | |
Engine Power (kW) | 169, 143, 147 | |
Wheelbase (mm) | 3950,4500 | |
Maximum Speed (km/h) | 105, 89 | |
Fuel Tank Capacity (L) | -- | |
Special Parameters | Effective Tank Volume (m³) | 11.5 m³ |
Front Flushing Width (m) | 18 | |
Rear Sprinkling Width (m) |
12 | |
Spray Cannon Range (m) |
35 | |
Vertical Suction Lift (m) |
7 |

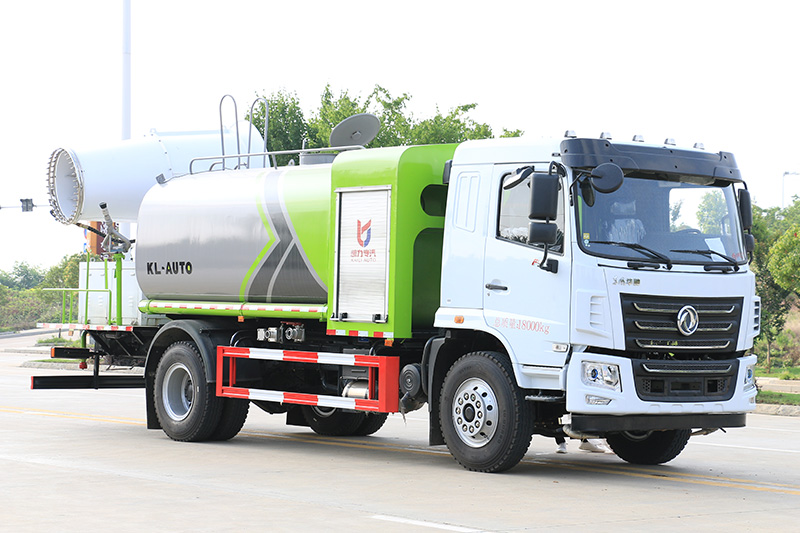

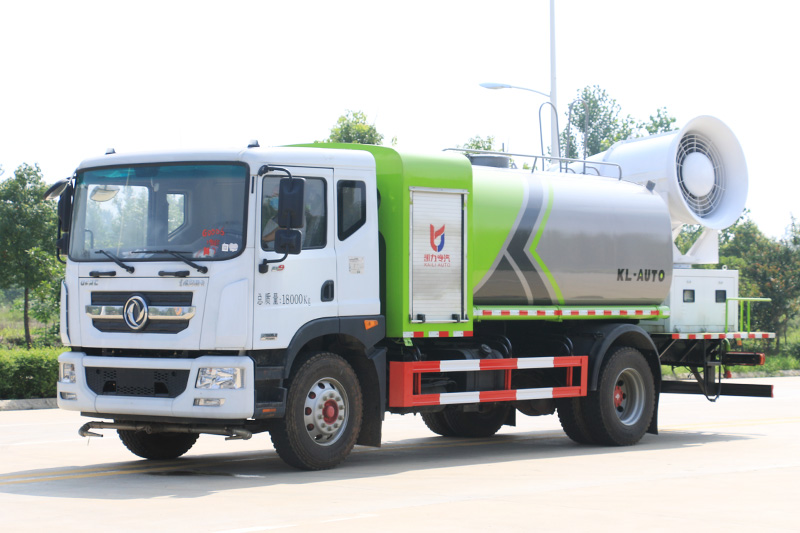

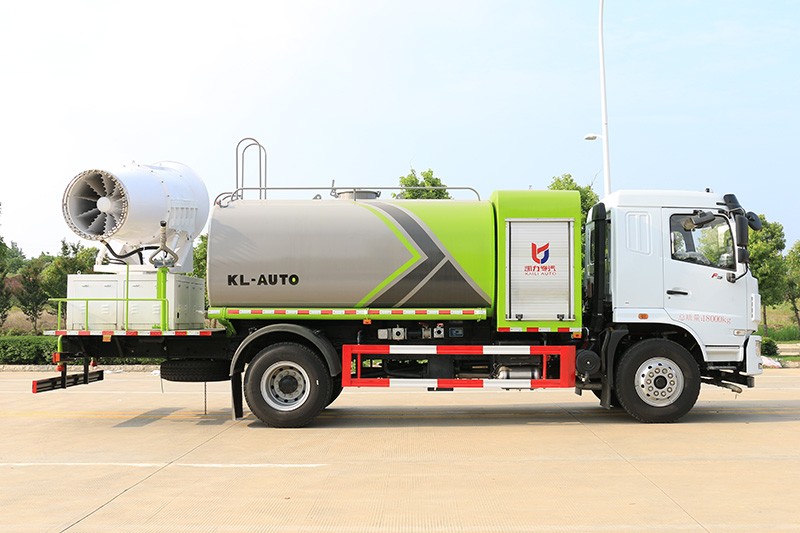

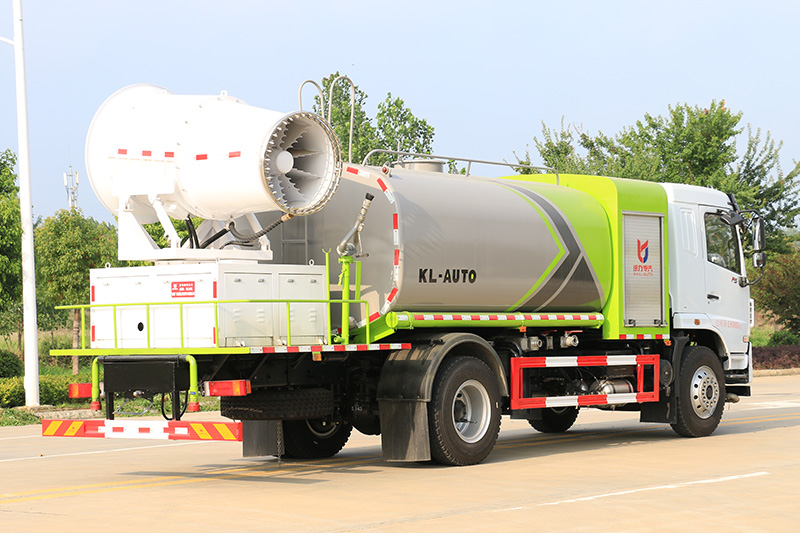

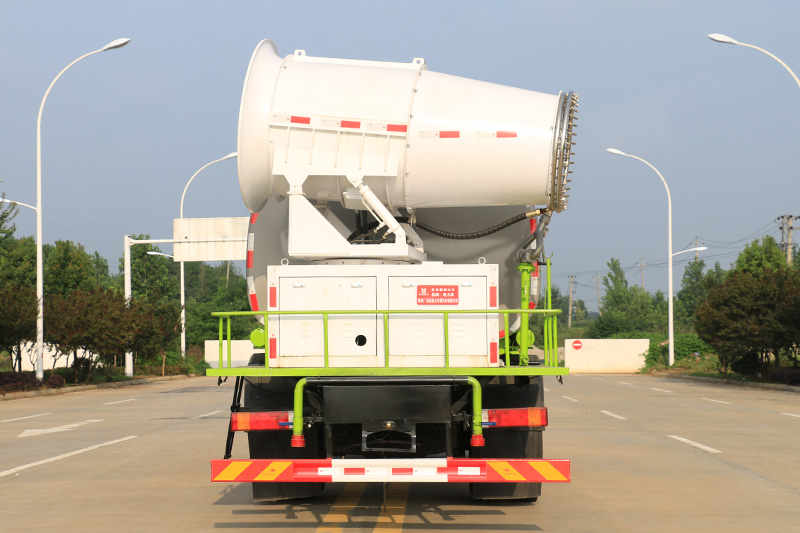

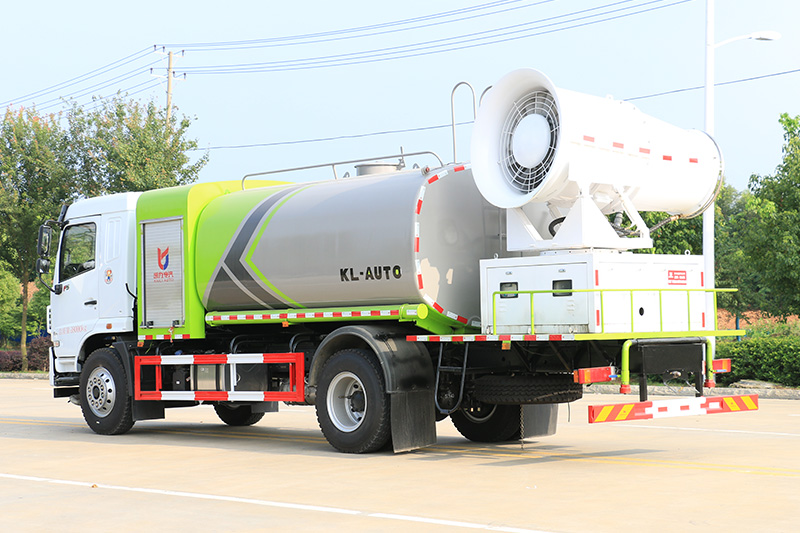

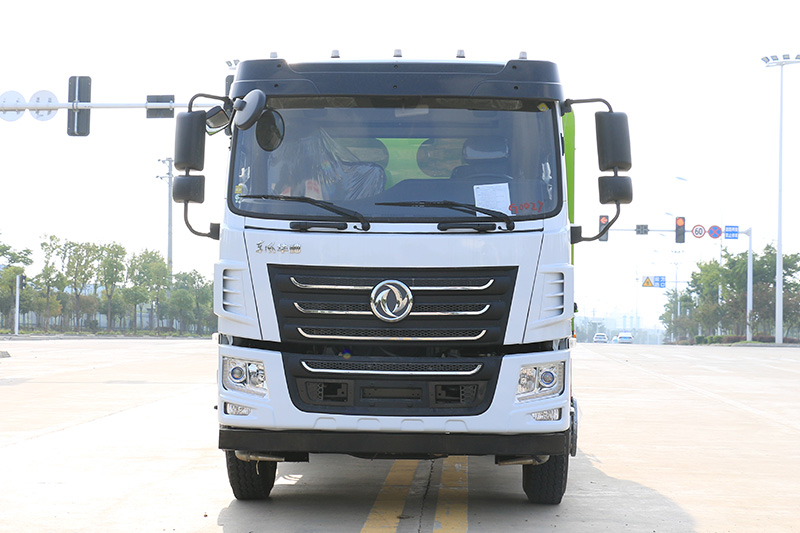

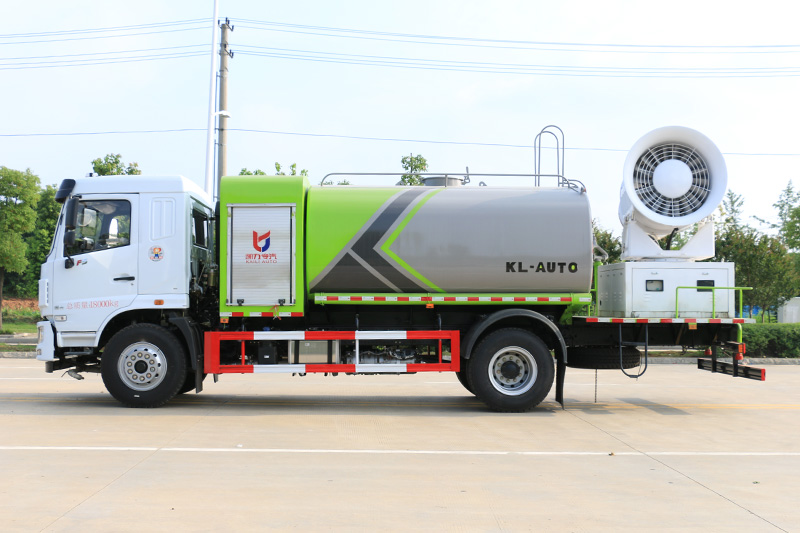

Dongfeng D9 Dust Suppression Truck (Round Tank) 11.5 cubic meters (Mist Cannon 30–100 meters)
Category, Item, Parameter, or Configuration Vehicle Specifications Product Model KLF5181TDYE6 Dimensions [Length × Width × Height (mm)] 7770, 8680, 8270, 9180 × 2510 × 3790 Curb Weight (kg) 10410, 9500, 9370 Maximum Gross Weight (kg) 18000 Rated Payload (kg) 7460, 7395, 8370,
