Category | Item | Parameter or Configuration |
Vehicle Parameters | Product Model | KLF5181TDYD6 |
Overall Dimensions 【L × W × H (mm)】 | 8860,8920,8720,8790*2500,2550*3750 | |
Curb Weight (kg) | 10210,9700 | |
Rated Load Capacity (kg) | 7595,7660,8170,8105 | |
Maximum Gross Weight (kg) | 18000 | |
Rated Persons | 3 persons | |
Chassis Parameters | Chassis Model | DFV1183GDP6DJ1 |
Chassis Manufacturer | Dongfeng Commercial Vehicle Xinjiang Co., Ltd. | |
Engine Model | B6.2NS6B230 | |
Engine Power (kW) | 169 | |
Wheelbase (mm) | 4500 | |
Maximum Speed (km/h) | 89 | |
Fuel Tank Capacity (L) | / | |
Special Parameters | Effective Tank Volume (m³) | 11.5 m³ |
Front Flushing Width (m) | 18 | |
Rear Sprinkling Width (m) |
12 | |
Spray Cannon Range (m) |
35 | |
Vertical Suction Lift (m) |
7 |

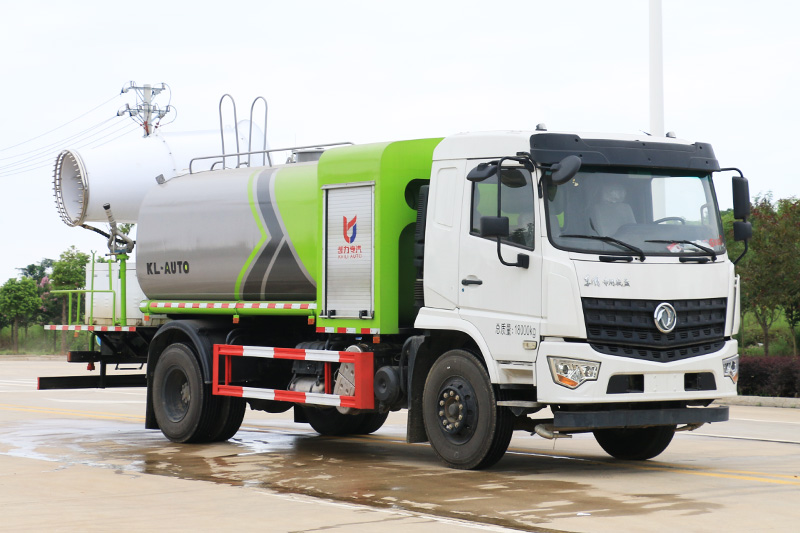

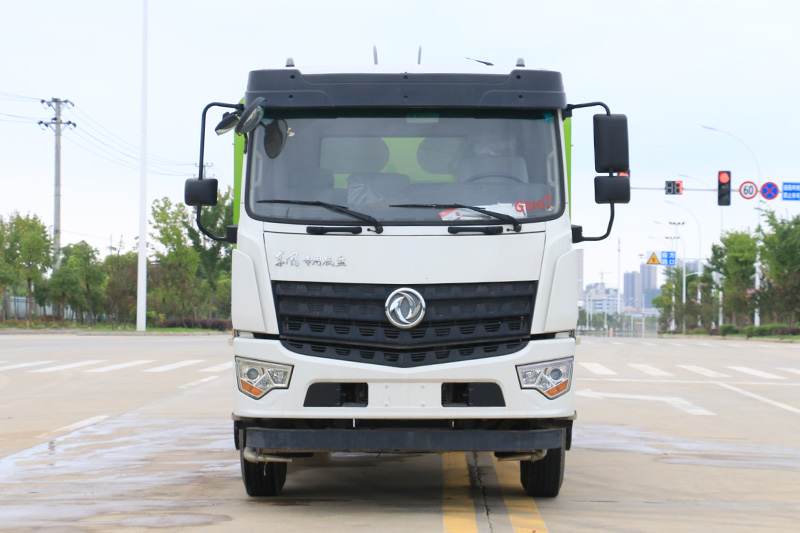

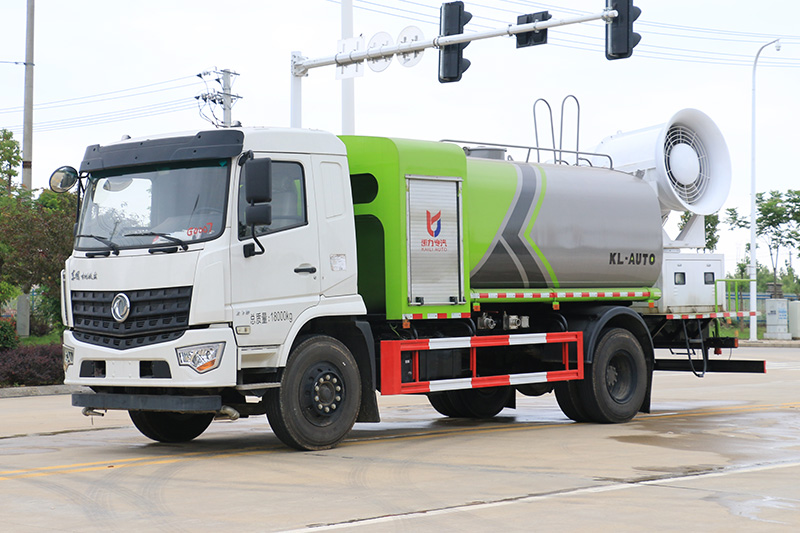

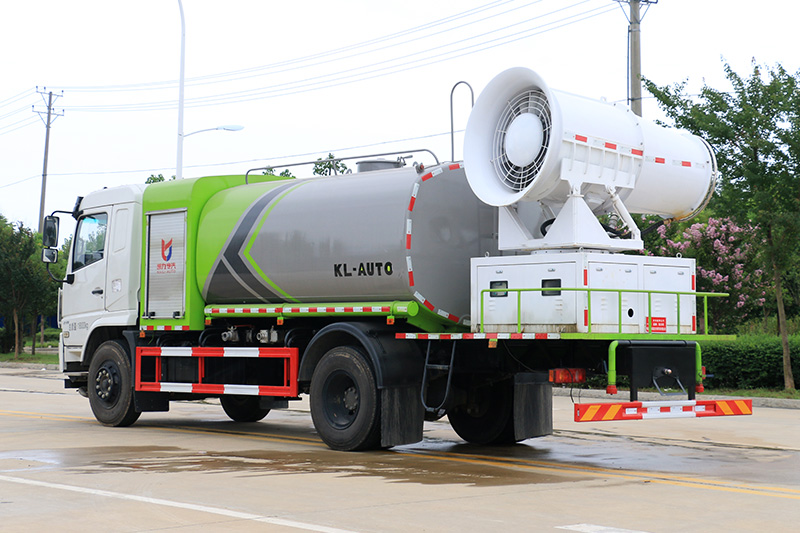

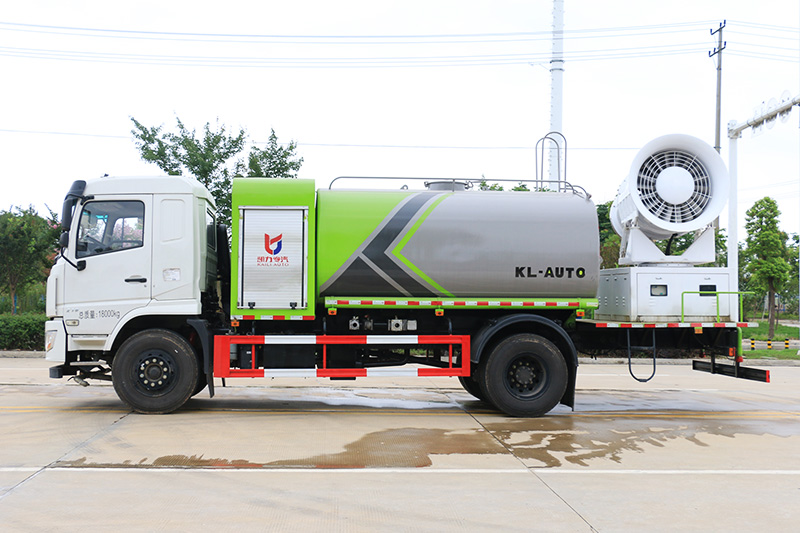

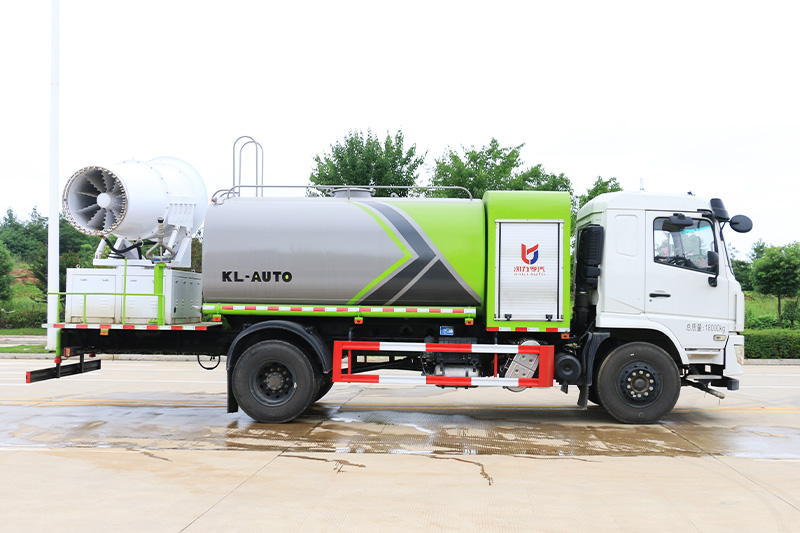

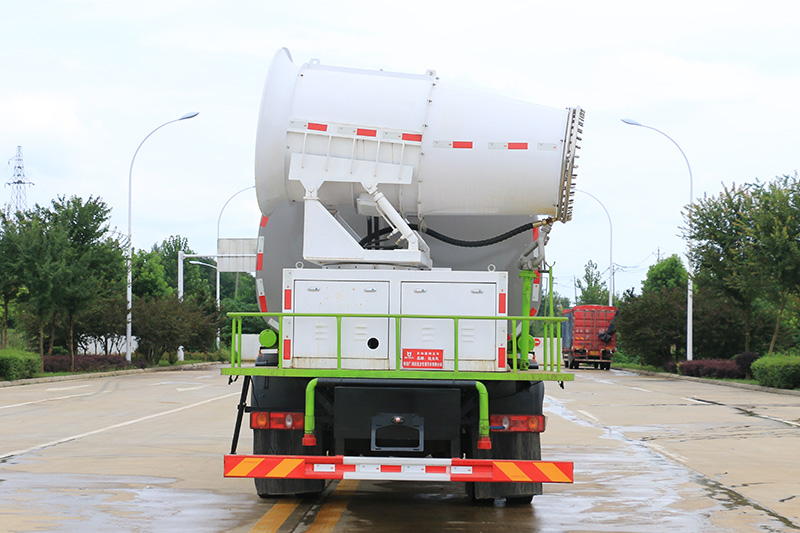

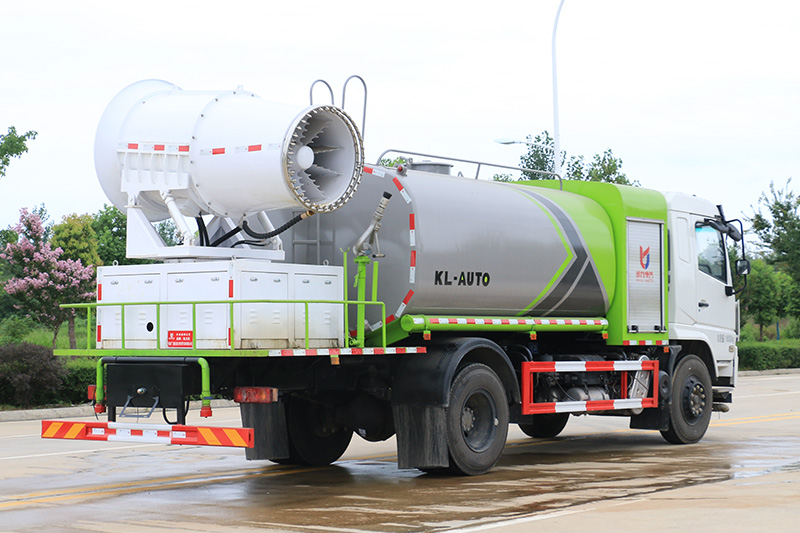

Dongfeng Special-Purpose Dust Suppression Truck (Round Tank) 11.5 cubic meters (Mist Cannon 30–100 meters)
Category, Item, Parameter, or Configuration Vehicle Specifications Product Model KLF5181TDYD6 Dimensions [Length × Width × Height (mm)] 8860, 8920, 8720, 8790 × 2500, 2550 × 3750 Curb Weight (kg) 10210, 9700 Rated Payload (kg) 7595, 7660, 8170, 8105 Maximum Gross Weight (kg)
