Category | Item | Specification |
Vehicle Parameters | Model | KLF5180TDYX6 |
Overall Dimensions | 9040,8680 × 2550,2500 × 3700,3600,3500,3850,3800,3750 | |
Curb Weight (kg) | 10300 | |
Gross Weight (kg) | 18000 | |
Rated Load (kg) | 7505, 7570 | |
Seating | 3 persons | |
Chassis Parameters | Chassis Model | EQ1185LJ9CDE |
Chassis Manufacturer | Dongfeng Motor Co., Ltd. | |
Engine Model | B6.2NS6B230, YCS04200-68 | |
Engine Power (kW) | 169, 147 | |
Wheelbase (mm) | 4500 | |
Max. Speed (km/h) | 105, 89 | |
Fuel Tank (L) | -- | |
Special Parameters | Tank Volume (m³) | 12.5 m³ |
Front Flush Width (m) | 18 | |
Rear Spray Width (m) | 12 | |
Water Cannon Range (m) | 35 | |
Suction Lift (m) | 6 |

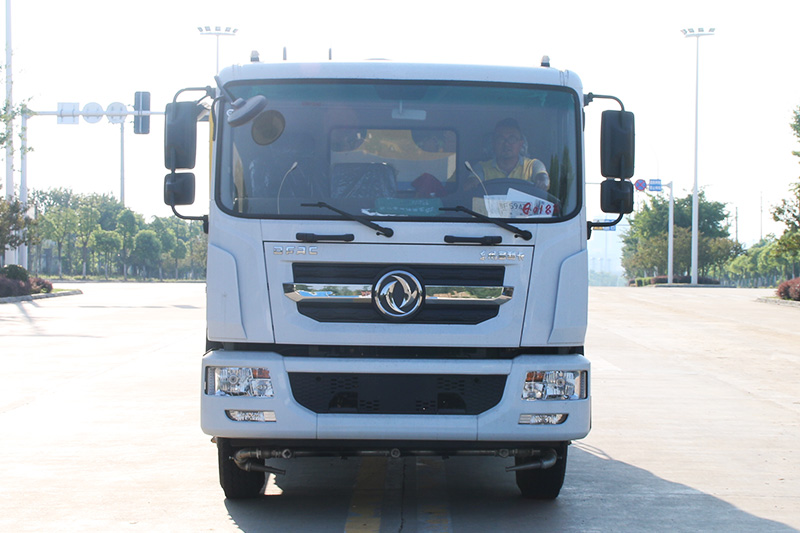

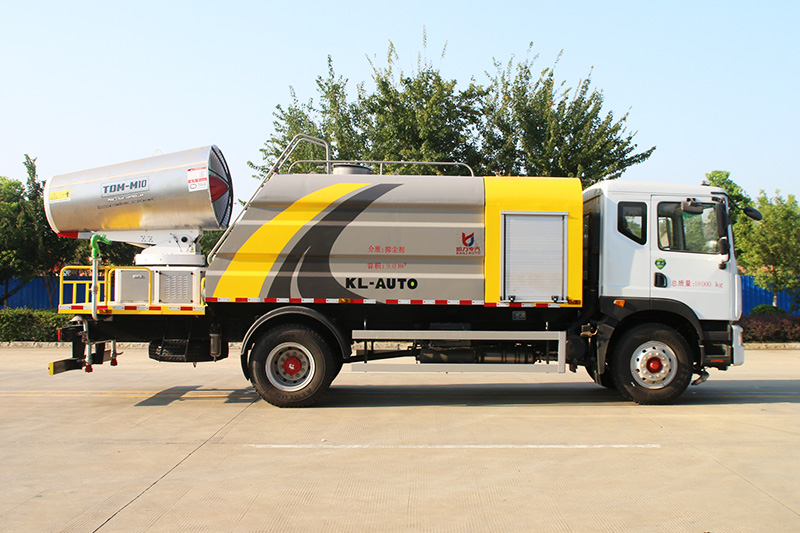

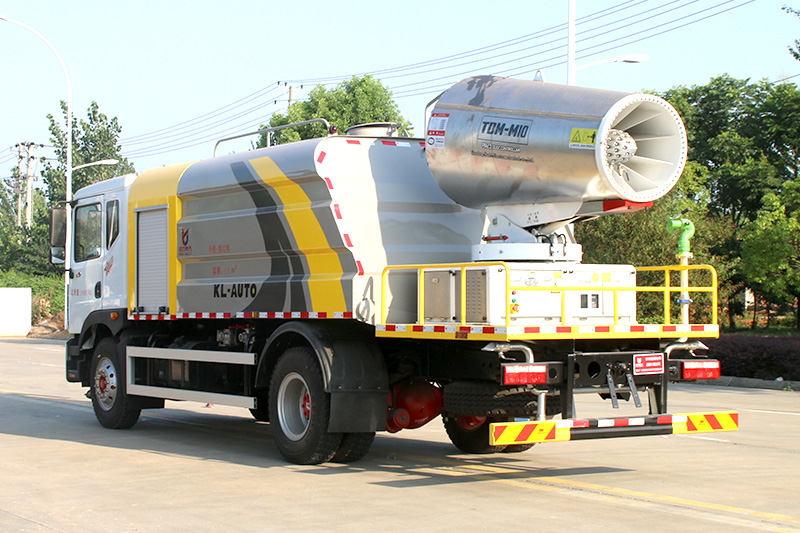

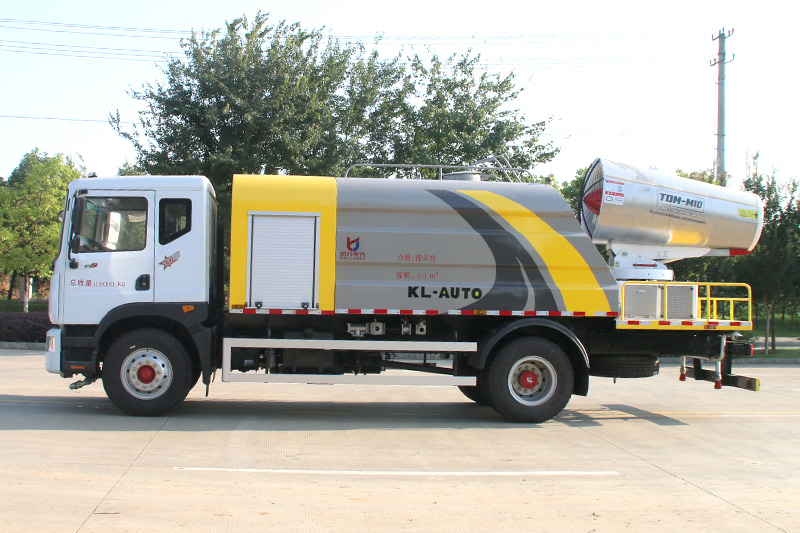

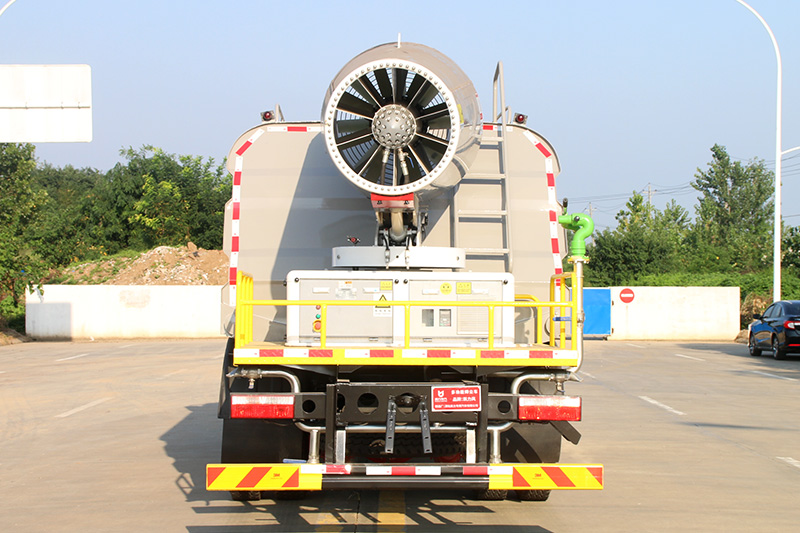

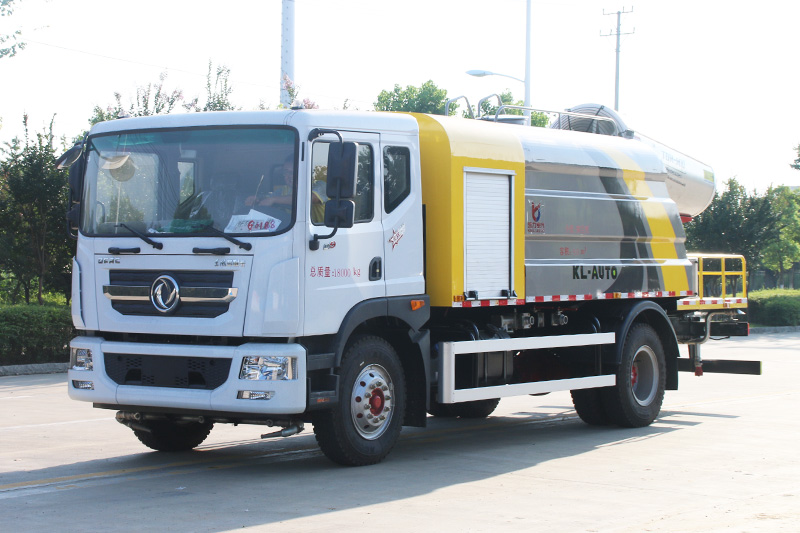

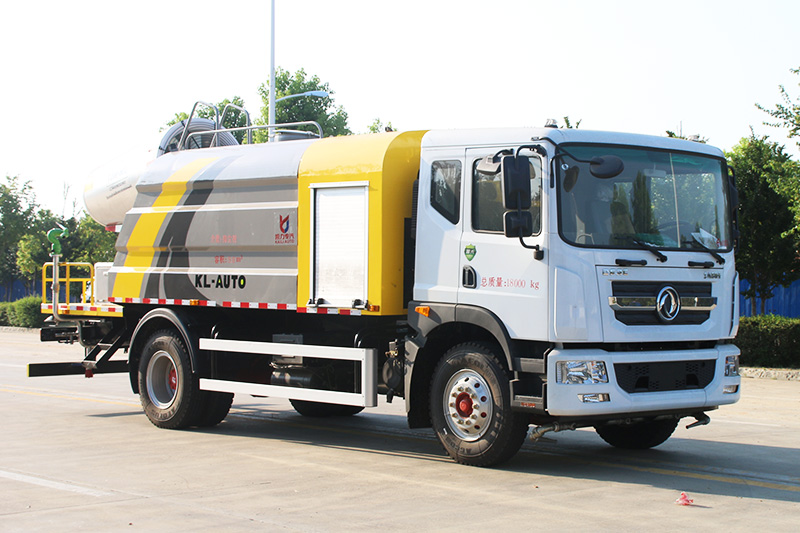

Dongfeng D9 Dust Suppression Truck (Wedge-shaped Tank) (Mist Cannon Range: 60–100 meters) 12.5 cubic meters
Category, Item, Parameters or Configuration Vehicle Specifications Product Model KLF5180TDYX6 Dimensions [Length × Width × Height (mm)] 9040, 8680×2550, 2500×3700, 3600, 3500, 3850, 3800, 3750 Curb Weight (kg) 10300 Maximum Gross Weight (kg) 18000 Rated Payload (kg) 7505,
