Category | Item | Specification |
Vehicle Data | Model | KLF5090TDYBEV |
Overall Dimensions L×W×H (mm) | 6673*2160*2900 | |
Curb Weight (kg) | 6070 | |
Rated Load (kg) | 2430 | |
Gross Weight (kg) | 8995 | |
Seats | 2 persons | |
Chassis Data | Chassis Model | EQ1090KACEV |
Chassis Manufacturer | Chengdu CRRC Motor Co., Ltd. | |
Motor Model | TZ290XSZ | |
Motor Power (kW) | 145 | |
Wheelbase (mm) | 3800 | |
Max. Speed (km/h) | 90 | |
Fuel Tank Capacity (L) | / | |
Special Equipment | Effective Volume (m³) | 6.5 |
Front Flushing Width (m) | 18 | |
Rear Spraying Width (m) |
12 | |
Water Cannon Range (m) |
35 | |
Suction Lift (m) |
7 |

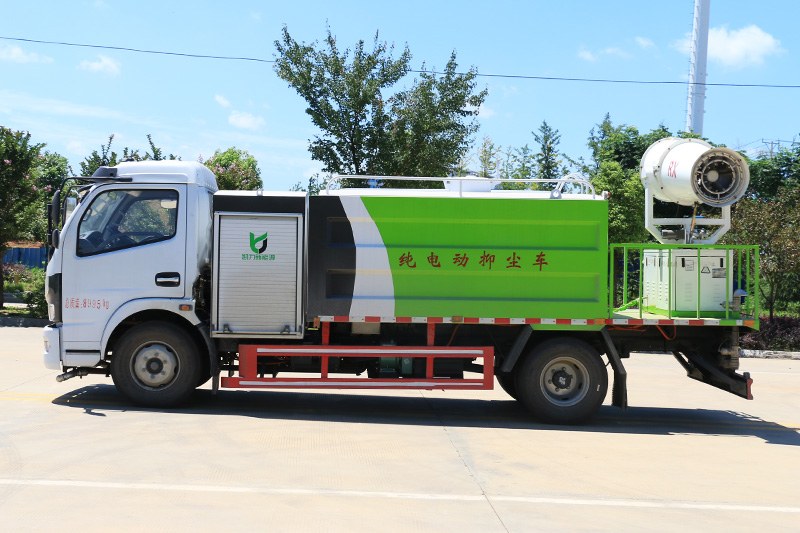

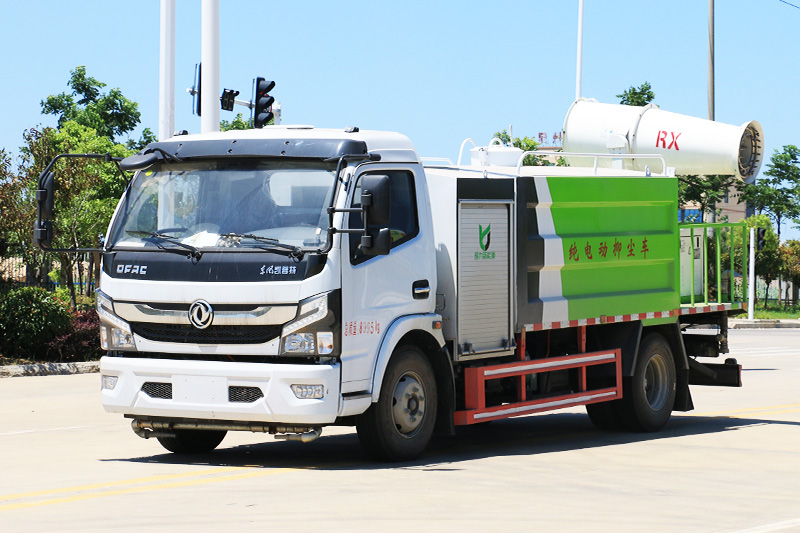

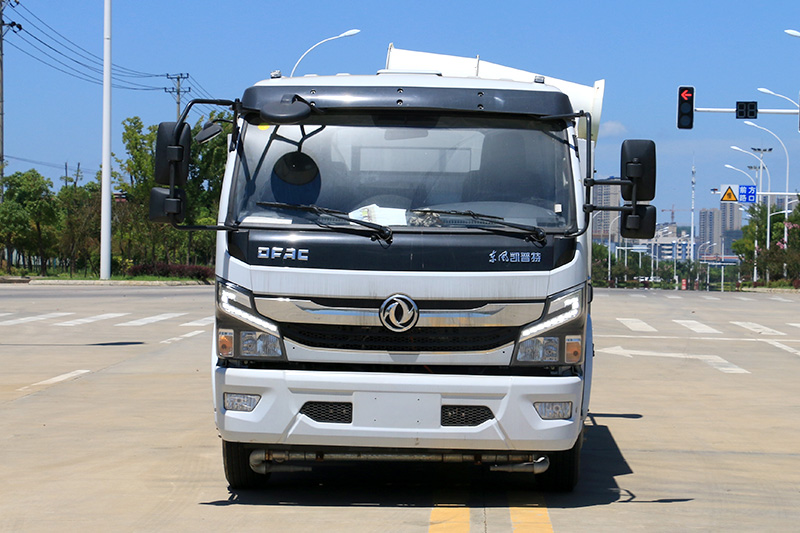

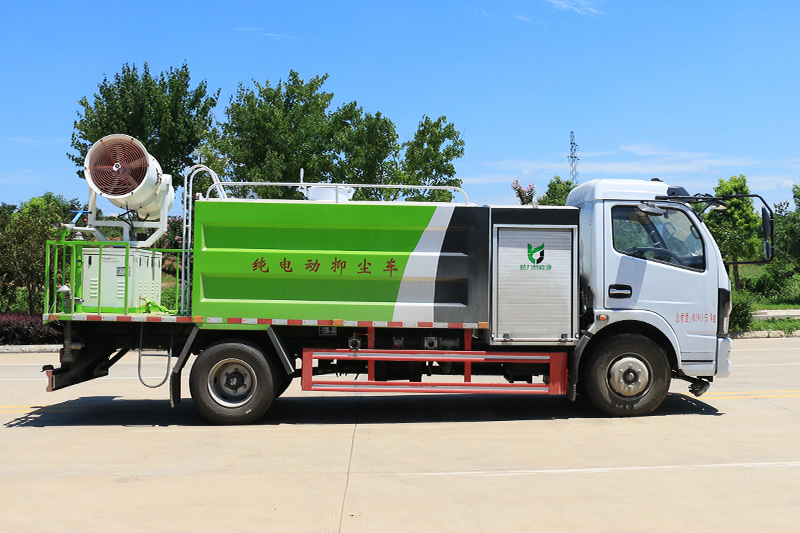

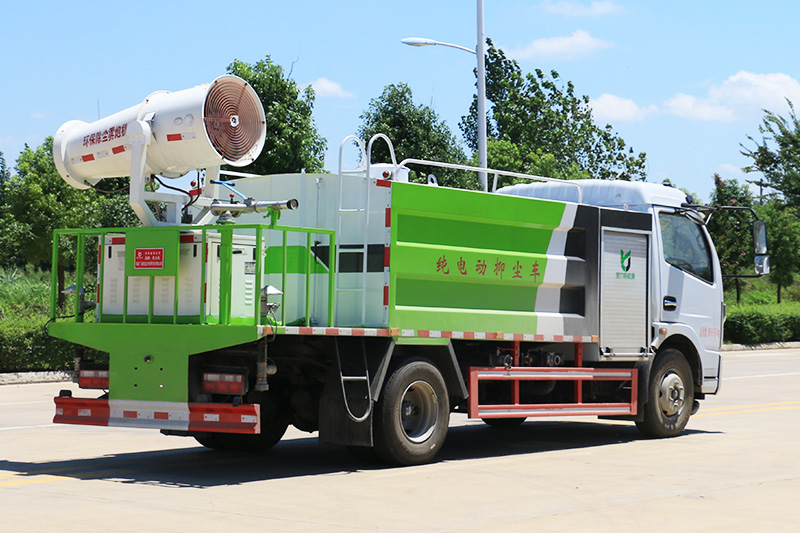

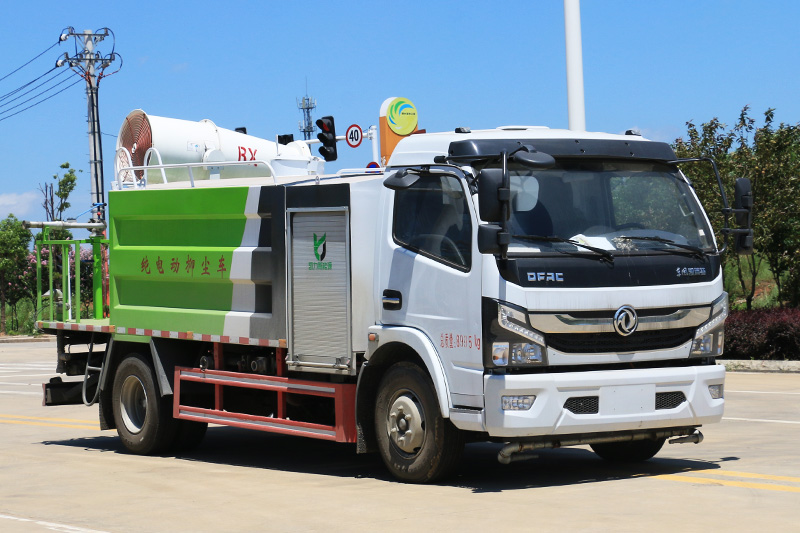

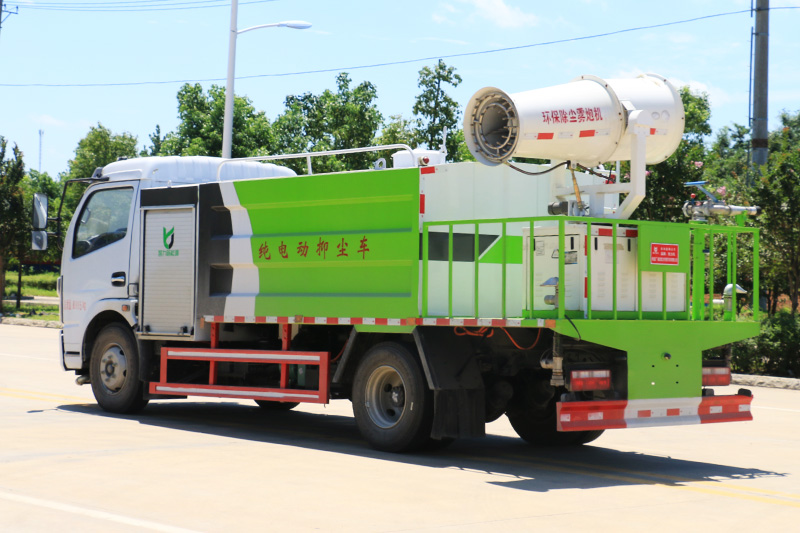

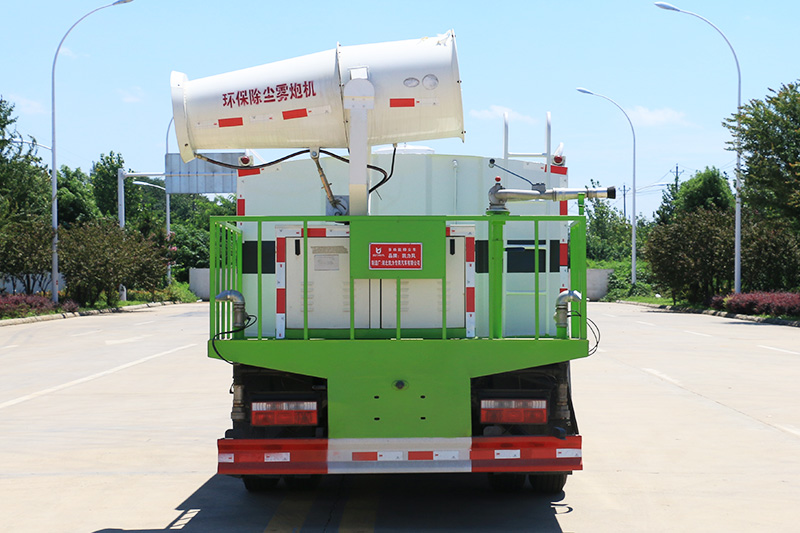

All-Electric Multi-Function Dust Suppression Truck (Square Tank) 6.5 cubic meters (Mist Cannon Range: 30–40 meters)
Category: Vehicle Parameters or Configuration Vehicle Parameters Model: KLF5090TDYBEV Dimensions [L × W × H (mm)]: 6673 × 2160 × 2900 Curb Weight (kg): 6070 Rated Payload (kg): 2430 Maximum Gross Weight (kg): 8995 Seating Capacity: 2 passengers
