Category | Item | Specification |
Vehicle Data | Model | KLF5041TDYB6 |
Overall Dimensions L×W×H (mm) | 5990*2090*2170,2770 | |
Curb Weight (kg) | 3950 | |
Rated Load Capacity (kg) | 415,350 | |
Gross Weight (kg) | 4495 | |
Seating Capacity | 2 persons | |
Chassis Data | Chassis Model | ZZ1048G17FB5 |
Chassis Manufacturer | China National Heavy Duty Truck Group Fujian Haixi Automobile Co., Ltd. | |
Engine Model | D30TCIF1 | |
Engine Power (kW) | 125 | |
Wheelbase (mm) | 3280,3360 | |
Max. Speed (km/h) | 89 | |
Fuel Tank Capacity (L) | / | |
Special Data | Effective Tank Volume (m³) | 4.5 |
Front Flushing Width (m) | 18 | |
Rear Spraying Width (m) |
12 | |
Water Cannon Range (m) |
35 | |
Suction Lift (m) |
7 |

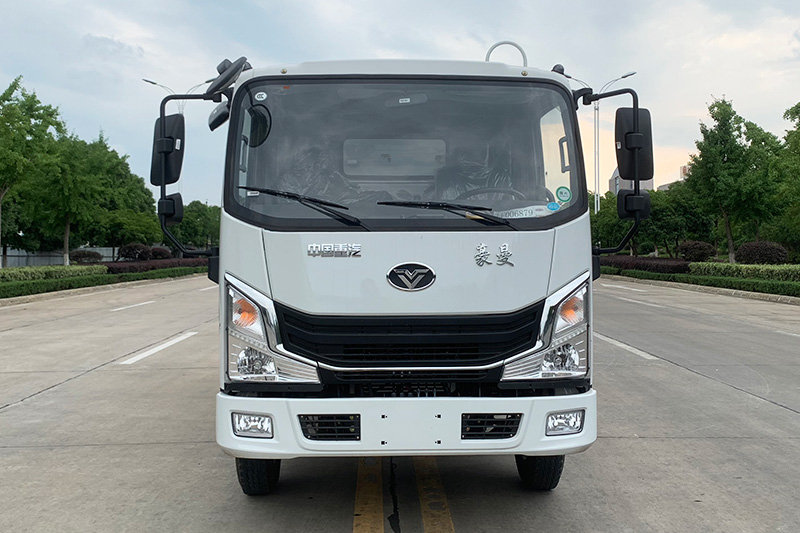

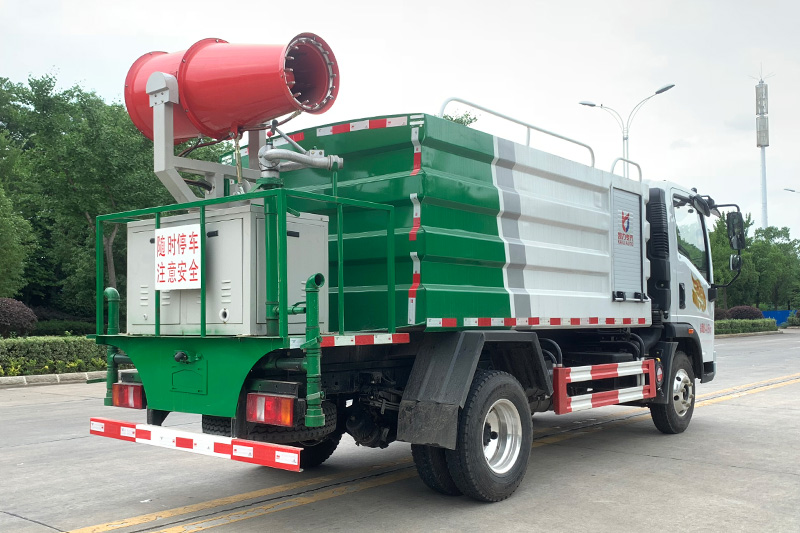

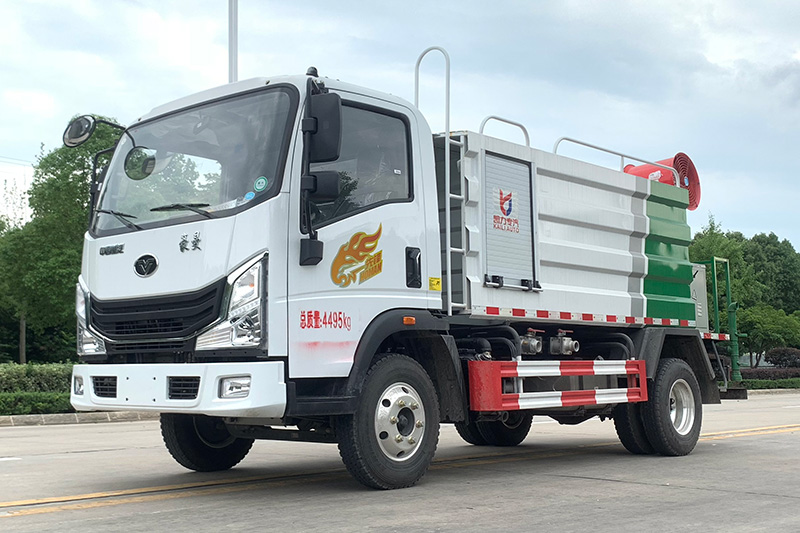

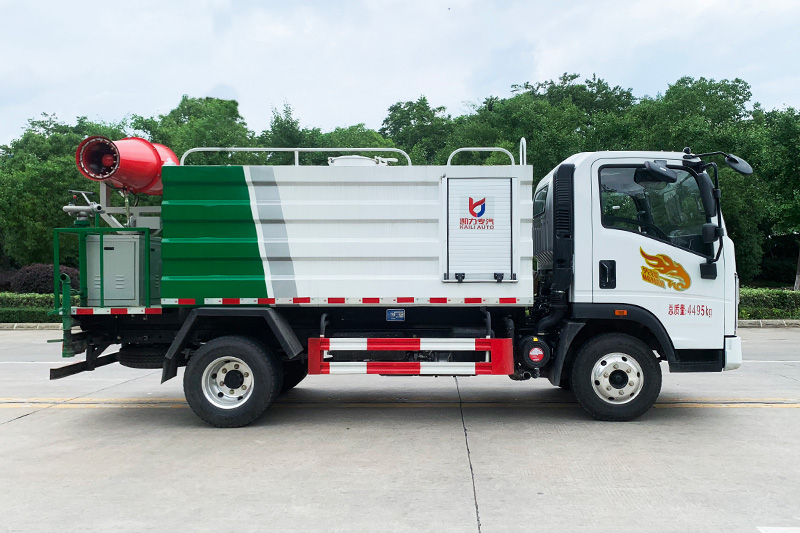

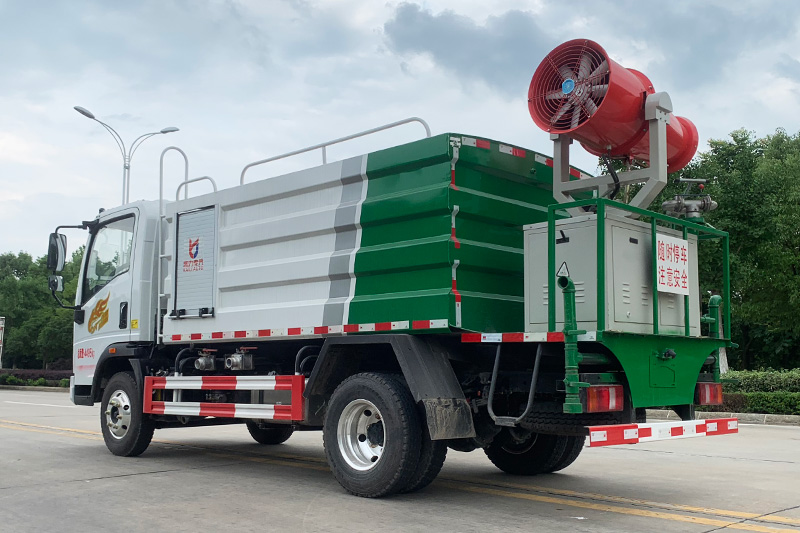

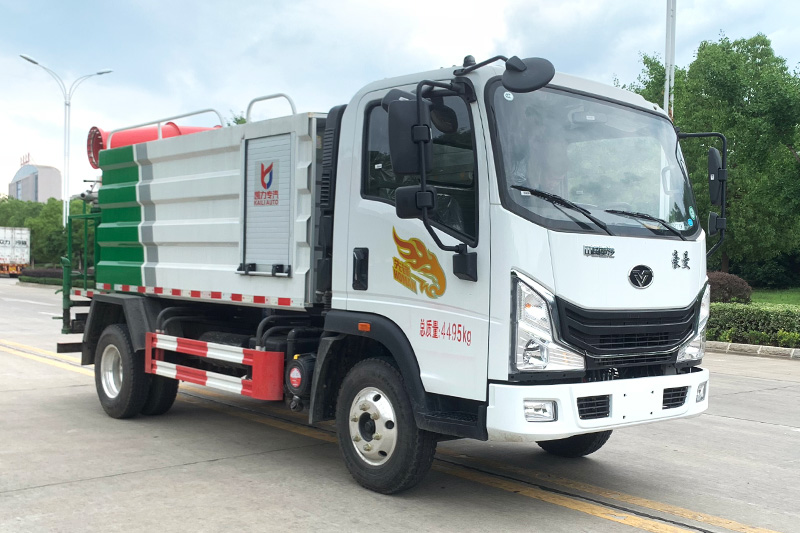

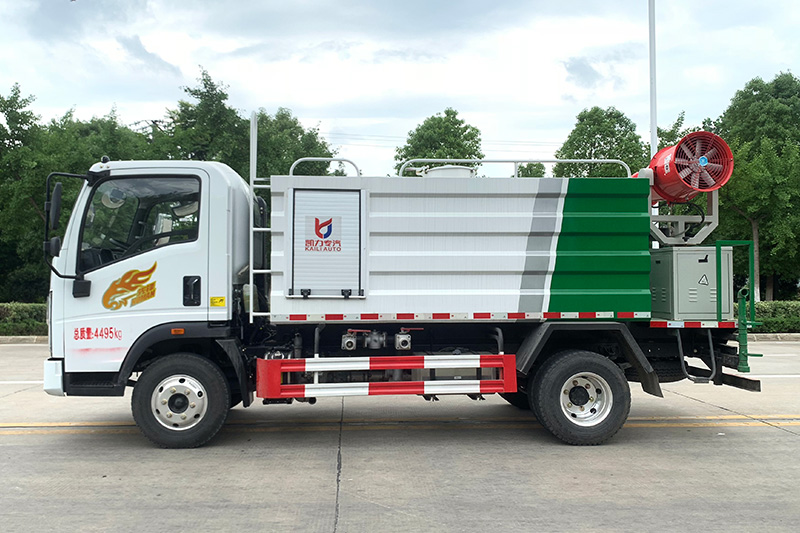

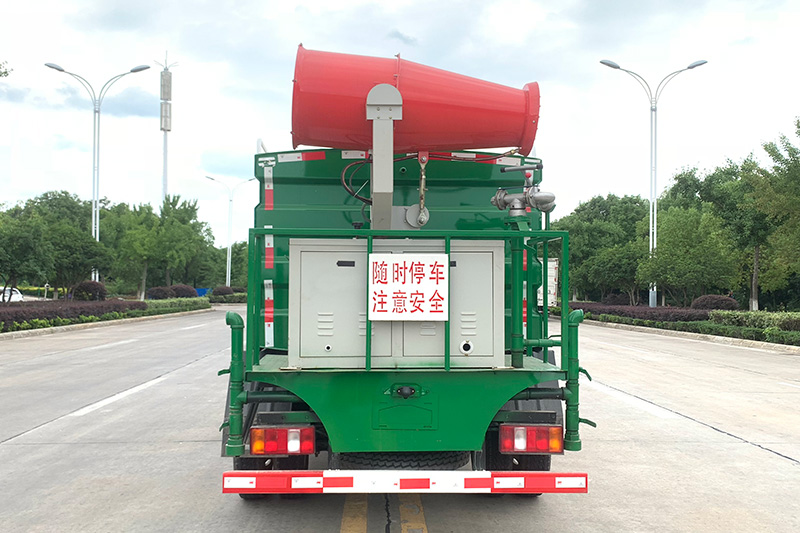

Sinotruk Haoman Dust Suppression Truck (Square Tank) 4.5 cubic meters (Mist Cannon Range: 30–40 meters)
Category: Vehicle Parameters or Configuration Vehicle Parameters Model: KLF5041TDYB6 Dimensions [L × W × H (mm)]: 5990 × 2090 × 2170, 2770 Curb Weight (kg): 3950 Rated Payload (kg): 415, 350 Maximum Gross Weight (kg): 4495 Rated Occupancy: 2 people &nbs
