Item / 项目 | Parameter / 参数 | Remark / 备注 |
Vehicle Model / 整车型号 | KLF5070GPSE6 | |
Wheelbase (mm) / 轴距 | 3308 | |
Engine Model / 发动机型号 | CA4DB1-11E6/D20TCIF1/Q28-130E60/YCY24140-60 | China VI Emission, Diesel Engine / 国VI排放，柴油发动机 |
Engine Power (kW) / 发动机功率 | 81/93/96/103 | |
Overall Dimensions (L×W×H) mm / 外形尺寸 | 6500,6485×2070×2680,2930 | |
Curb Weight (kg) / 整备质量 | 3710,3895 | |
Max. Gross Weight (kg) / 最大总质量 | 7360 | |
Working Speed / 工作速度 | Engine Speed 1500r/min / 发动机转速1500r/min | Stationary Neutral Operation / 原地空档作业 |
Effective Tank Volume (m³) / 箱体有效容积 | 5.2 | |
Tank Material / 缸体材质 | Wugang High-quality Carbon Steel (4mm) / 武钢优质碳钢（4MM厚） | |
Front Flushing Width / 前冲洒水宽度 | 15-30M | |
Rear Water Cannon / 后平台洒水高炮 | Spray 30-35M, 360° Adjustable / 射程30-35米，高炮可360°调节 | |
Special Water Pump / 专用洒水泵 | High-power Pump, Vertical Suction 6M / 大功率水泵，垂直吸程6M | |
Standard Functions / 常规功能配置 | Front Flush, Rear Spray, Side Spray, S-type Cannon, Fire Interface |

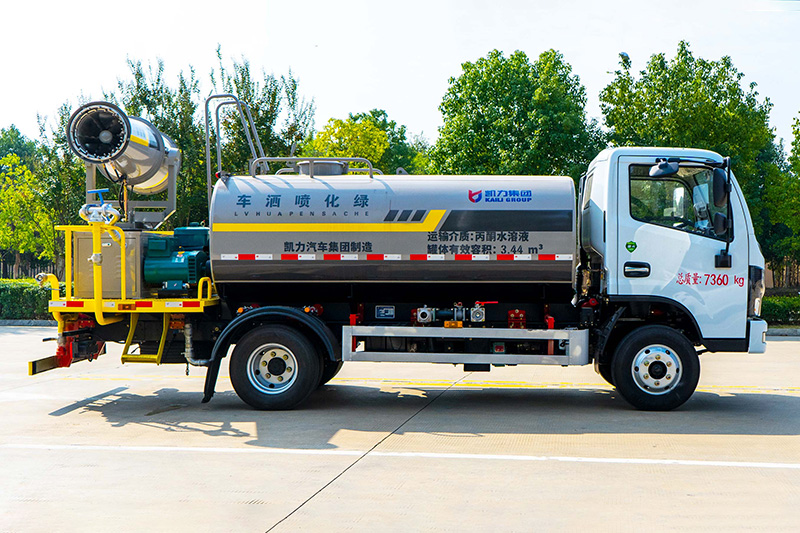

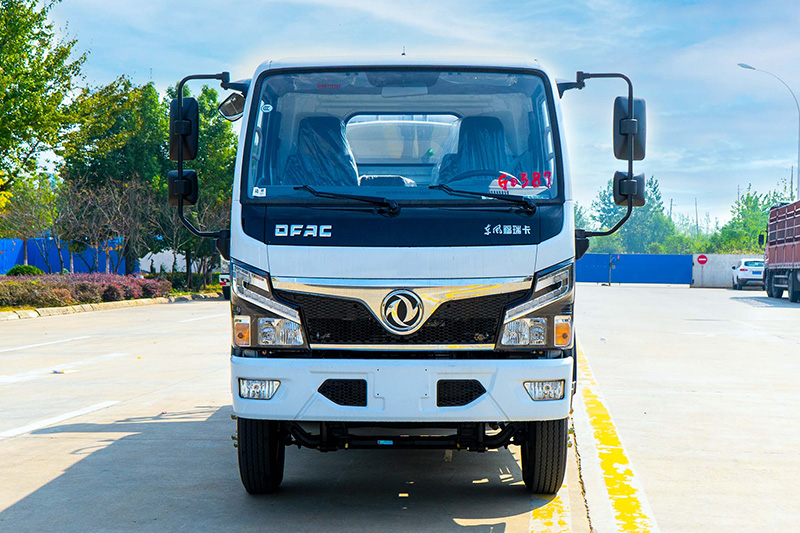

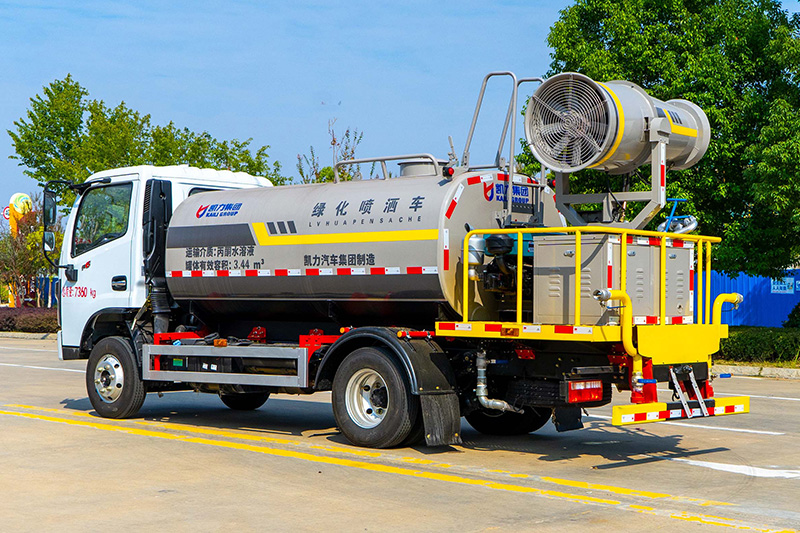

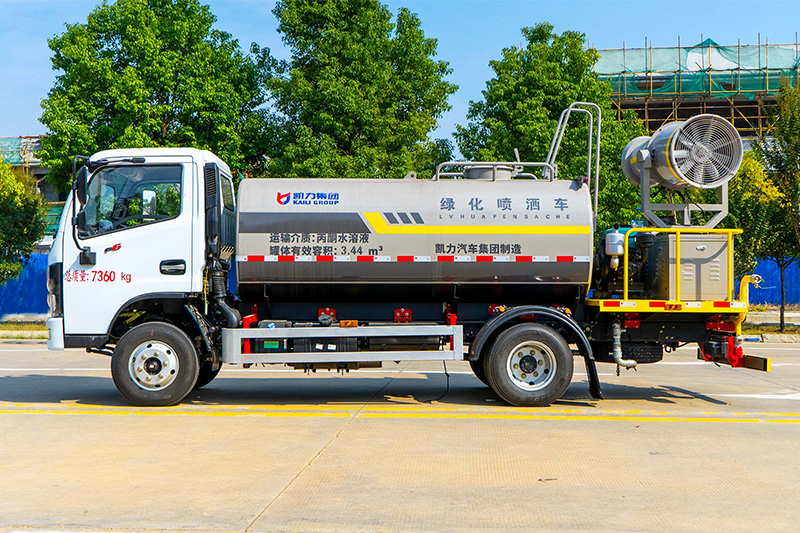

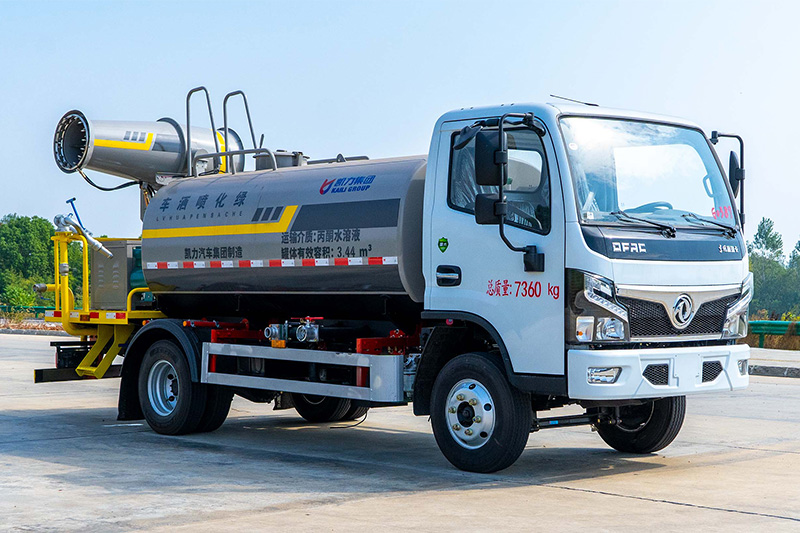

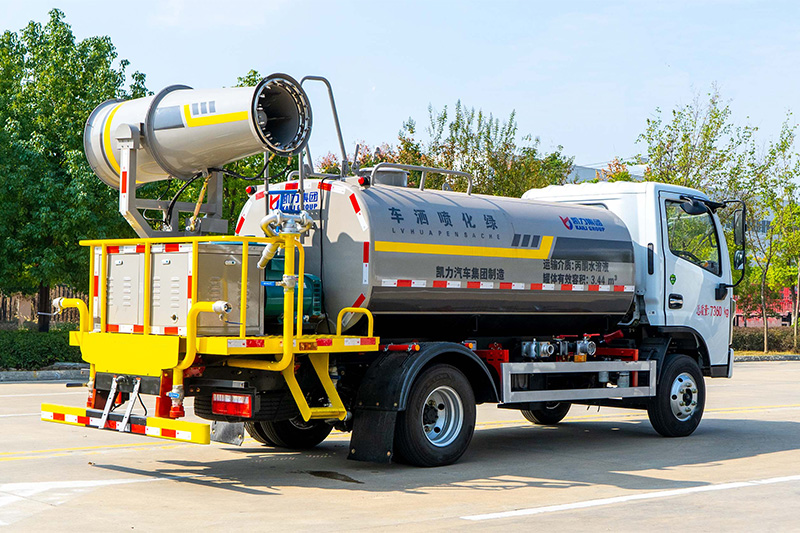

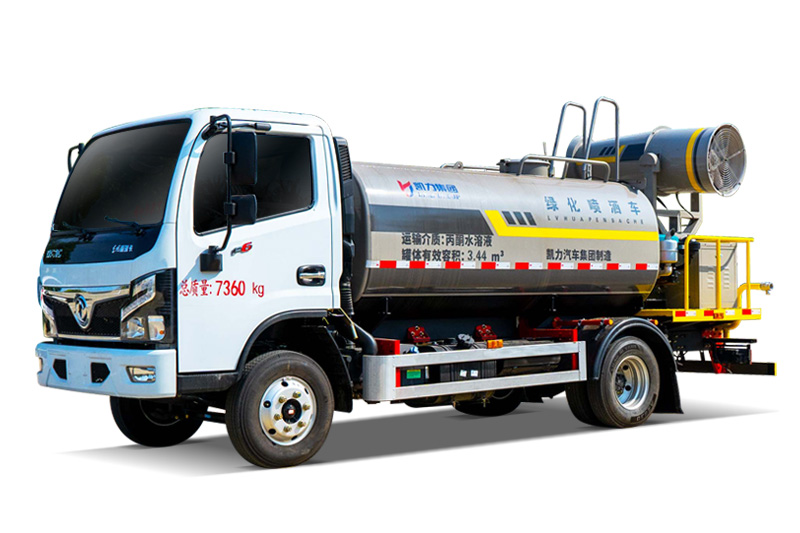

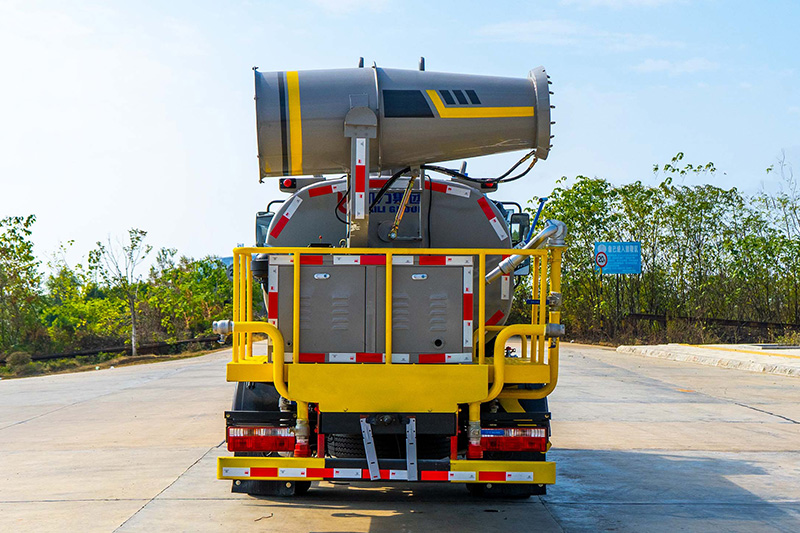

Dongfeng Xiao Fureika Fog Cannon Truck, 5.2 cubic meters
Project Parameters Notes Vehicle Model KLF5070GPSE6 Wheelbase (mm) 3308 Engine Model CA4DB1-11E6/D20TCIF1/Q28-1 30E60/YCY24140-60 China VI emissions, Diesel Engine Engine Power (kW) 81/93/96/103 Dimensions [Length × Width × Height (mm)]
