Item | Parameter | Remarks |
Vehicle Model |
KLF5181GPSE6 | |
Wheelbase (mm) | 4500 | |
Engine Model | YCS04200-68 D4.0NS6B195 B6.2NS6B230 |
China VI Emission, Diesel Engine |
Engine Power (kW) | 147/143/169 | |
Overall Dimensions L×W×H (mm) | 8750,8560,8465,8275,8250,8060,7965,7775×2550×3300,3240,3400 | |
Curb Weight (kg) |
6695 | |
Gross Vehicle Weight (kg) | 18000 | |
Working Speed (km/h) |
Engine Speed 1500 r/min |
Stationary Neutral Operation |
Effective Tank Volume (m³) | 15.1 | |
Tank Material |
WISCO High-quality Carbon Steel (4MM Thick) | |
Front Spraying Width | 15-30M | |
Rear Platform Water Cannon |
Dust suppression 30-35m, cannon 360° adjustable | |
Special Water Pump |
High-power pump, vertical suction lift 6M | |
Standard Configuration | Front flush, rear spray, side spray, S-type water cannon, fire interface |

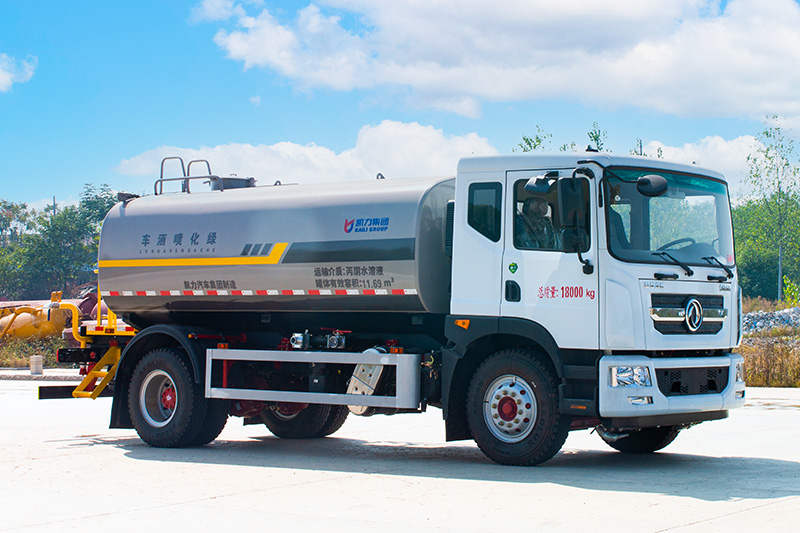

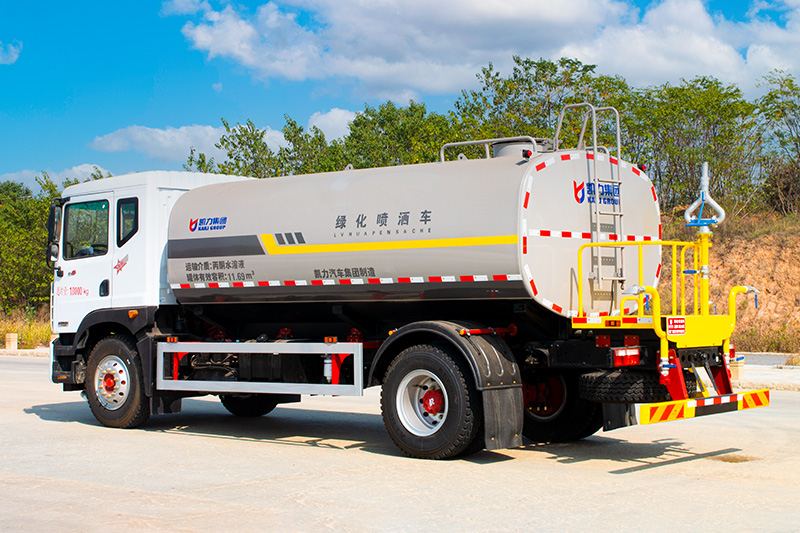

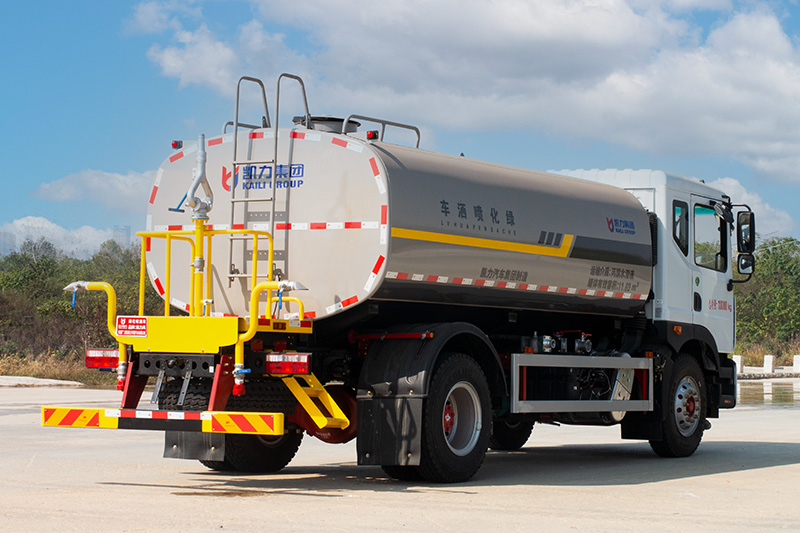

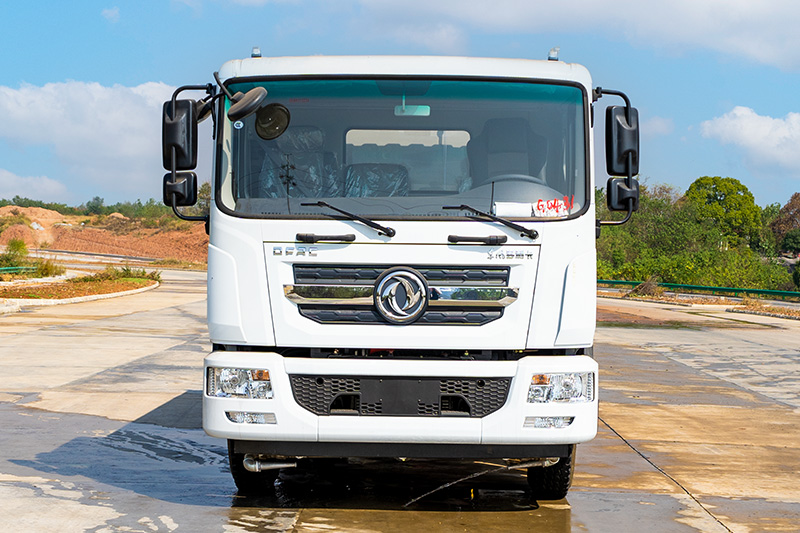

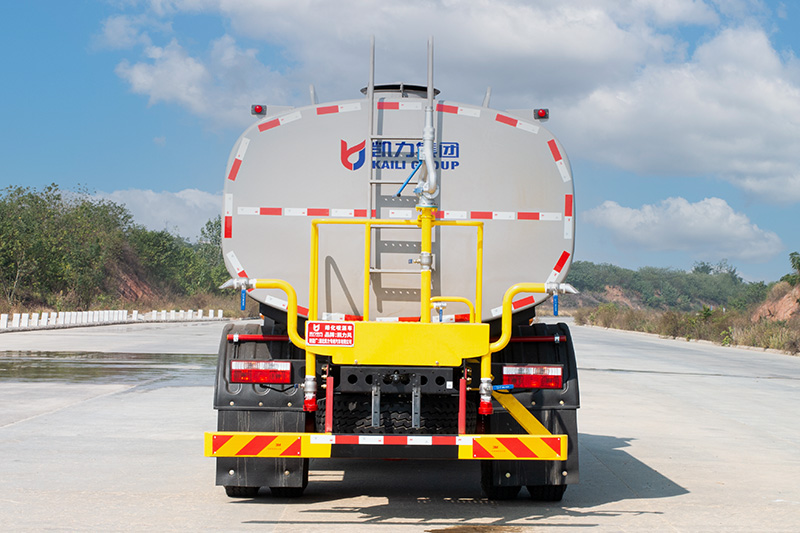

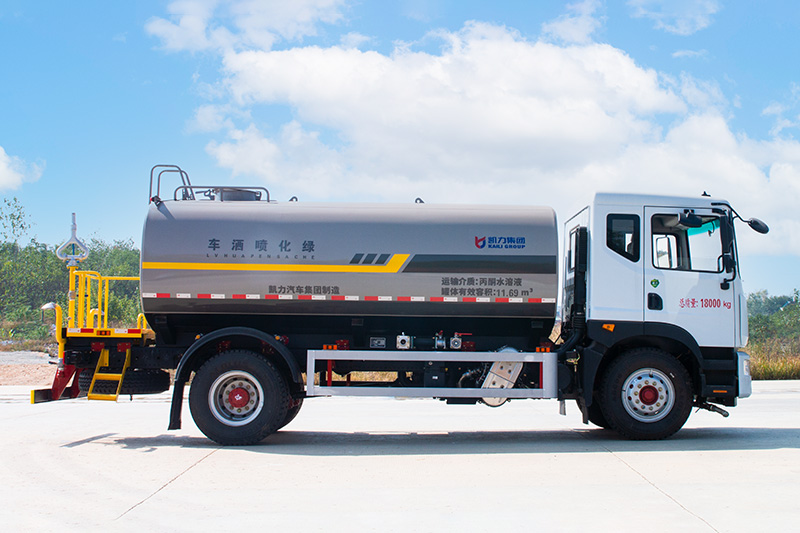

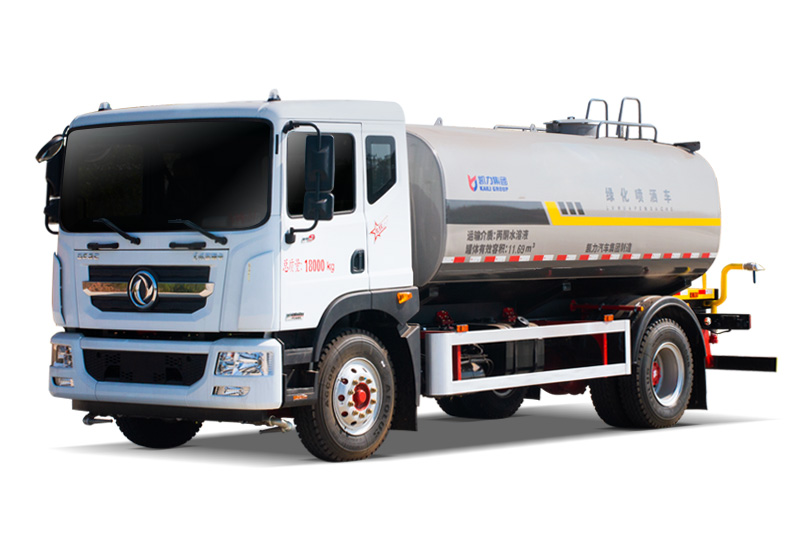

Dongfeng D9 Water Sprinkler Truck (4500) 15.1 cubic meters
Project Parameters Notes Vehicle Model KLF5181GPSE6 Wheelbase (mm) 4500 Engine Model YCS04200-68 D4.0NS6B195 B6.2NS6B230 National VI emissions, diesel engine Engine Power (kW) 147/143/169 Dimensions [Length × Width × Height (mm)] 8750, 8560, 8465, 8
